SVR 8 VM Technical Specifications

Crane Suspended Pile Driver

SVR 8 VM Front View Wireframe Technical Drawing

SVR 8 VM Technical Drawing Front View

SVR 8 VM Side View Wireframe Technical Drawing

SVR 8 VM Technical Drawing Side View

SVR 8 VM Isometric View Wireframe Technical Drawing

SVR 8 VM Technical Drawing Isometric View

TECHNICAL SPECIFICATIONS

Metric

Eccentric Moment (kgm)	0-8
Centrifugal Force (kN) Max.	464
Power (kW)	138
Weight and Dimensions
Total Weight W/O Clamp (kg)	1857
Length / L1 (mm)	1490
Height / H1 (mm)	1566
Width / W1 (mm)	300

Eccentric Moment (in.lbs)	0-695
Centrifugal Force Max. (tons)	52
Power (hP)	185
Weight and Dimensions
Total Weight W/O Clamp (lbs)	4094
Length / L1 (in)	59
Height / H1 (in)	62
Width / W1 (in)	12

Recommended Clamps & Power Pack

Clamp Type for Sheet Piles

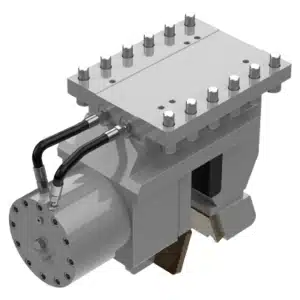

Hydraulic Clamp for Sheet Pile

SCN 60

Clamp Type for Casing

KCN 40x2

Recommended Power Pack

PP 218

The SVR Variable Moment vibrator range does not vibrate during start up and stopping due to the phase shifter and vibrates at a higher speed while running. This reduces the disturbance to surrounding soils.
