360° Rotating and +/- 30° Tilting Mechanism

Side Grip Vibro Hammers can handle, pitch and drive the sheet and tube piles. It is capable to accomplish the whole pile driving process without need of manual handling of the piles or assisting machinery.

Main Features of Side Grip Vibro Hammer

1- TILTING

+/- 30° tilting mechanism makes SG vibro hammer effective for pile driving.

2- ROTATING

OMS Side Grip series vibratory hammer has 360° rotating mechanism.

3- SIDE CLAMP

To drive and extract sheet piles, beams and tubular piles where the height matters.

4- BOTTOM CLAMP

Bottom clamp system designed for driving and extracting beams and sheet piles.

5- CLAMP HOOK

For easily carrying sheet piles.

4 MAIN ADVANTAGES OF SIDE GRIP VIBRO HAMMER

1. Excavator Mounted

  • Suitable for all crawler types and wheeled excavators,
  • Controlled by a special electronic control system,
  • Easy to operate,
  • Works with excavator’s standard hydraulic system.

2. Advanced Mobility

With 360° rotating system and 30° tilt mechanism, OMS vibro hammer can be worked in small areas. Side grip sheet pile drivers are capable of handling, pitching, and driving/extracting.

3. Product Range

Depending on your excavator power or project requirements, OMS has different sizes and capacity OVR-SG machines. These machines have various types of arms for sheet piling, pipe piling and timber piling.

4. Quick Setup Time

OMS Side Grip Vibro Hammer can be fitted easily and quickly without any modifications required to the excavator and is controlled directly by the excavator operator.

The high frequency side grip pile driver vibro is fast, accurate, safe and suitable for driving sheet piles and cassion (pipe) into variety of soils.

OMS Side Grip is a kind of Vibratory Pile Driver for excavator. It is equipped with both gripping arms/clamp and the bottom clamp. One of the clamps is located in front of vibration case, while the other one is below the vibration case. Hydraulic clamps have gripping jaws. The hydraulic cylinder operates the gripping arms with force up to 500 kN. Bottom clamp is operated with up to 440 kN, depending on clamp relief pressure. The clamps can be opened and closed directly from excavator “Joy Stick” or from the electrical remote control monitor. Clamping and un-clamping occurs in a few seconds.

Excavator Mounted Side Grip Clamping
Side Grip Vibro Hammer Carrying Sheet Pile

SIDE GRIP EXCAVATOR MOUNTED VIBRO HAMMER SYSTEM

Equipment Consists

The equipment consists of five major components:

  • Yoke,
  • Vibration Suppressor,
  • Vibration Case,
  • Gripping Arms,
  • Bottom Clamp

SIDE GRIP VIBRO HAMMER PILE ARMS

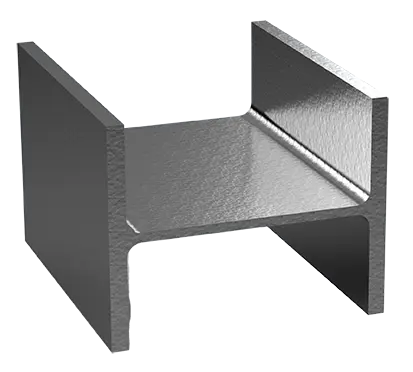

Main feature of side grip vibro hammer is “side grip pile arms”. Side Grip arms are designed for handling, pitching, driving and extracting of various types of piles. Depending on your needs, arms can be changed. With the help of these arms many types of sheet piles, H beams, I beams and tubular piles can be used.

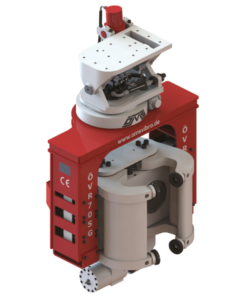

Side Grip Sheet
Pile Driver Arms

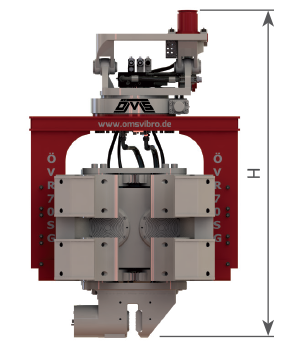

Side Grip Tube
Pile Driver Arms

TECHNICAL SPECIFICATIONS (Metric)

Eccentric Moment (kgm) 4
Centrifugal Force (kN) 276
Centrifugal Force (kN) Max 334
Frequency (rpm) 2500
Frequency (rpm) Max. 2750
Oil Flow (l/min) 100
Oil Flow (l/min) Max. 110
Power (kW) 53
Power (kW) Max. 59
Amplitude (mm) 5
Pulling Force (kN) 117
Side Gripping Force (kN) 439
Bottom Clamping Force (kN) 292

TECHNICAL SPECIFICATIONS (US)

Eccentric Moment (in.lbs) 347
Centrifugal Force (tons) 31
Centrifugal Force (tons) Max 37
Frequency (rpm) 2500
Frequency (rpm) Max. 2750
Oil Flow (gpm) 26
Oil Flow (gpm) Max. 29
Power (hP) 71
Power (hP) Max. 79
Amplitude (in) 0,2
Pulling Force (tons) 13
Side Gripping Force (tons) 49
Bottom Clamping Force (tons) 33

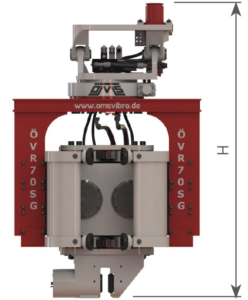

WEIGHT AND DIMENSIONS (Metric)

Dynamic Weight W/O (kg) 1573
Total Weight W/O (kg) 2530
Length / L (mm) 1420
Height / H (mm) 2124
Width / W (mm) 1190
Arm Stroke / S (mm) 225

WEIGHT AND DIMENSIONS (US)

Dynamic Weight W/O (lbs) 3468
Total Weight W/O (lbs) 5578
Length / L (in) 56
Height / H (in) 84
Width / W (in) 47
Arm Stroke / S (in) 9

See also some media about side grip vibratory hammer from jobsite in Holland!

USAGE OF SIDE GRIP PILE DRIVER

Handling

Handling Sheet Pile

Carrying

Pitching

Pitching Sheet Pile 3D Modelling

Driving / Extracting (Side Clamp)

Driving Extracting Sheet Pile With Side Grip Side Clamp

Driving / Extracting (Bottom Clamp)

Driving Extracting Sheet Pile With Side Grip Bottom Clamp
