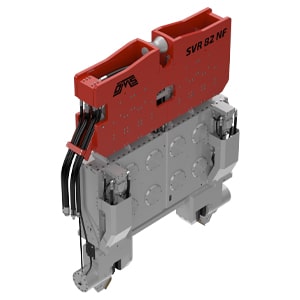

NORMAL FREQUENCY (SVR – NF Series)

Crane Suspended Vibratory Hammers SVR – NF Series are recommended in projects requiring high driving or extracting force. SVR type pile drivers are powered by OMS Power Packs, which have equipped with remote control and touch screen control panels. These controls are used to adjust the vibrator to suit different ground conditions.

  • Various clamp types to suit all pile profiles,
  • High eccentric moment and vibration amplitude,
  • Performance of desired power settings and works can be monitored by the control system,
  • Powerful, reliable and long life.
Crane Hanging Vibro Hammer Technical 3D Drawing Front View

Front View With Double Clamps

Crane Hanging Vibro Hammer Technical 3D Drawing Side View

Side View

Crane Hanging Vibro Hammer Technical 3D Drawing With Single Clamp

Isometric View With Single Clamp

Vibro Hammer Technical Specification – SVR – NF – (NORMAL FREQUENCY)

SVR 25 NF (NORMAL FREQUENCY)

SVR-25-NF-SCN-120-Technical-Drawing-Isometric

SVR 25 NF & SCN 120 Technical Drawing Isometric

Technical SpecificationsSVR 25 NF
Eccentric Moment (kgm) 25
Centrifugal Force (kN) 795

SVR 30 NF (NORMAL FREQUENCY)

SVR30NF-KCN80-Technical-Drawing-Isometric

SVR 30 NF & KCN 80 Technical Drawing Isometric

Technical SpecificationsSVR 30 NF
Eccentric Moment (kgm) 30
Centrifugal Force (kN) 1036

SVR 50 NF (NORMAL FREQUENCY)

SVR50NF-KCN80-Technical-Drawing-Isometric

SVR 50 NF & KCN80 Technical Drawing Isometric

Technical SpecificationsSVR 50 NF
Eccentric Moment (kgm) 50,2
Centrifugal Force (kN) 1409

SVR 80 NF (NORMAL FREQUENCY)

SVR-80-NF-KCN-165-Technical-Drawing-Isometric

SVR 80 NF & KCN 165 Technical Drawing Isometric

Technical SpecificationsSVR 80 NF
Eccentric Moment (kgm)82,6
Centrifugal Force (kN) 2318

SVR 120 NF (NORMAL FREQUENCY)

SVR120NF-3D-Model

SVR 120 NF & KCN 185 Technical Drawing Isometric

Technical SpecificationsSVR 120 NF
Eccentric Moment (kgm)120
Centrifugal Force (kN) 2846

SVR 200 NF (NORMAL FREQUENCY)

SVR-200-NF-KCN-165-Technical-Drawing-Isometric

SVR 200 NF & KCN 165 Technical Drawing Isometric

Technical SpecificationsSVR 200 NF
Eccentric Moment (kgm)203,2
Centrifugal Force (kN) 4380
