SVR 16 VM Technical Specifications
Crane Suspended Pile Driver
SVR 16 VM Technical Drawing Front View
SVR 16 VM Technical Drawing Side View

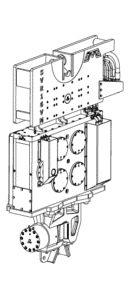

SVR 16 VM Technical Drawing Isometric View
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 0-16 |
| Centrifugal Force (kN) Max. | 934 |
| Power (kW) | 287 |
| Weight and Dimensions | |
| Total Weight W/O Clamp (kg) | 3650 |
| Length / L1 (mm) | 1925 |
| Height / H1 (mm) | 2002 |
| Width / W1 (mm) | 321 |
Recommended Clamps & Power Pack
Clamp Type for Sheet Piles
Clamp Type for Casing
Recommended Power Pack
The SVR Variable Moment vibrator range does not vibrate during start up and stopping due to the phase shifter and vibrates at a higher speed while running. This reduces the disturbance to surrounding soils.
- Environmentally – friendly technology,
- Adjustable amplitude,
- Resonance free start – stop,
- Optimum force applying to soil conditions,
- Powerful, reliable and long life.
