SVR 200 NF Technical Specifications

Crane Suspended Pile Driver

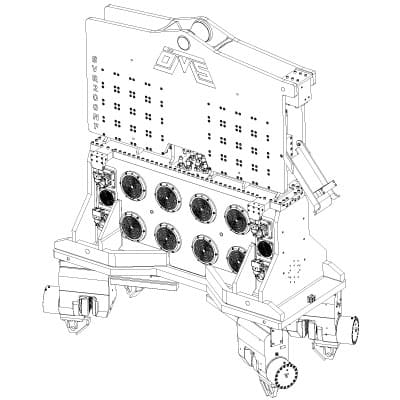

OMS 200 NF Vibro Hammer Technical Drawing Isometric View

SVR 200 NF Isometric View Wireframe Technical Drawing

OMS 200 NF Vibro Hammer Technical Drawing Front View

SVR 200 NF Front View Wireframe Technical Drawing

OMS 200 NF Vibro Hammer Technical Drawing Side View

SVR 200 NF Side View Wireframe Technical Drawing

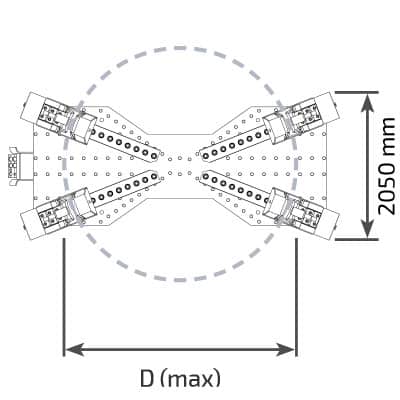

OMS 200 NF Vibro Hammer Technical Drawing Bottom View

SVR 200 NF Bottom View Wireframe Technical Drawing

TECHNICAL SPECIFICATIONS

Eccentric Moment (kgm)  203,2
Centrifugal Force (kN)  4380
Power (kW)  1045
Weight and Dimensions
Total Weight W/O Clamp (kg)  26100
Length / L1 (mm)  3660
Height / H (mm) 3620
Width / W1 (mm)  493

Recommended Clamps & Power Pack

Clamp Type for Casing

Hydraulic Clamp KCN 165

Hydraulic Clamp KCN 185

Recommended Power Pack

  • High performance,
  • Strong in power which can drive heavy equipment successfully,
  • High eccentric moment and vibration amplitude,
  • Suitable for all different soil and working conditions,
  • Performance of desired power settings and work tracking by the control system,
  • Innovative structure adapting to fast developing technology,
  • Time and cost saving.

OTHER SVR SERIES VIBRO HAMMERS

OMS SVR 25 NF Vibro Hammer

OMS 25 NF Vibro Hammer

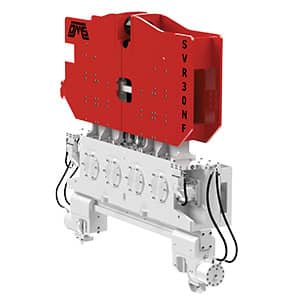

OMS 30 NF Vibro Hammer

OMS 30 NF Vibro Hammer

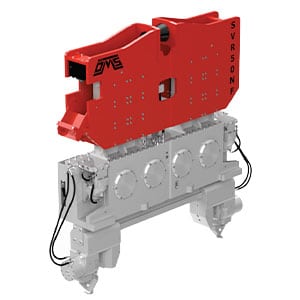

OMS 50 NF Vibro Hammer
