Complementary Products
Recommended Hydraulic Clamps
Suitable for near historical buildings to use with variable (resonance – free) models.
Advantages

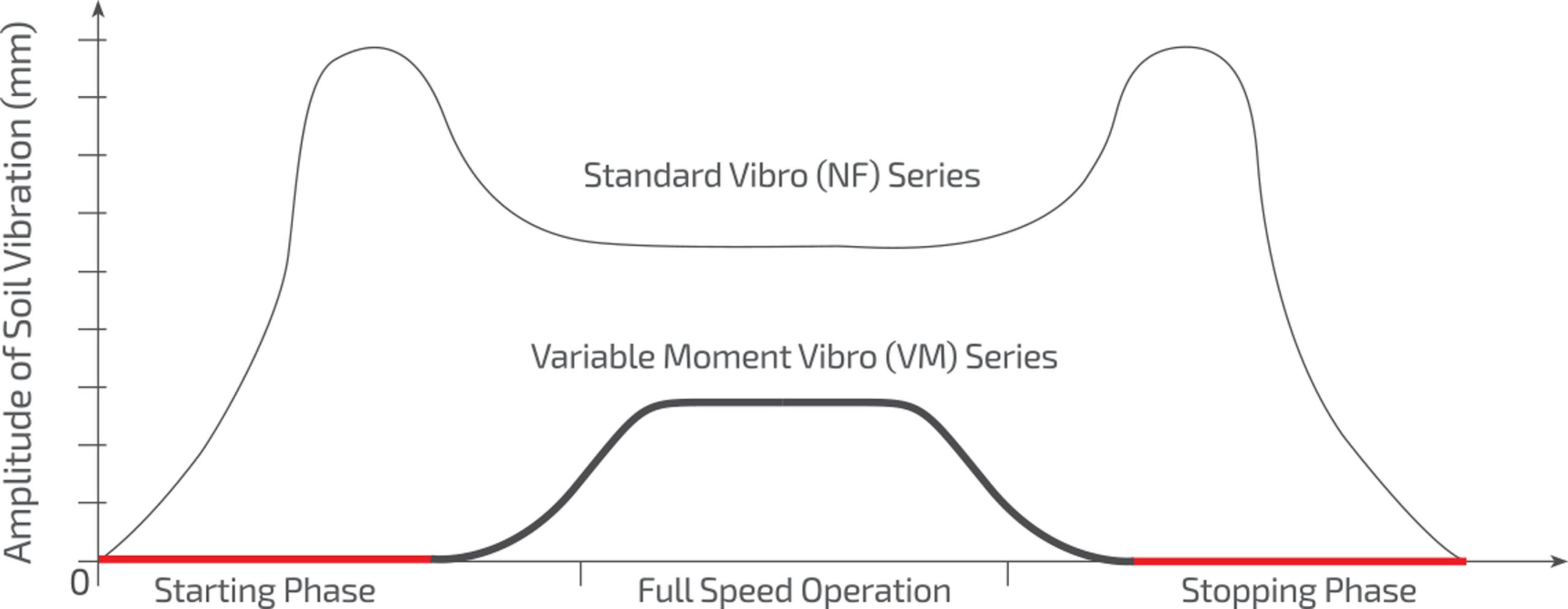

Environmentally friendly technology, Controlled amplitude by means of adjustable eccentric moment, Resonance – free start – stop, Optimum force application to the ground via variable moment feature, Minimized sound transmission through high-capacity anti-vibration mounts, Powerful, reliable and long life.
Technical Specifications
| Eccentric Moment | 0 – 40 kgm |
| Centrifugal Force | 2348 kN |
| Power | 548 kW |
| Total Weight W/O Clamp | 7603 kg |
| Length / L1 | 2797 mm |
| Height / H1 | 2616 mm |
| Width / W1 | 384 mm |
| Eccentric Moment | 0 – 3472 in.lbs |
| Centrifugal Force | 264 tons |
| Power | 735 hp |
| Total Weight W/O Clamp | 16762 lbs |
| Length / L1 | 110 in |
| Height / H1 | 103 in |
| Width / W1 | 15 in |
Resonance Free Vibro Hammer Applications
Other Resonance Free Vibro Hammers
