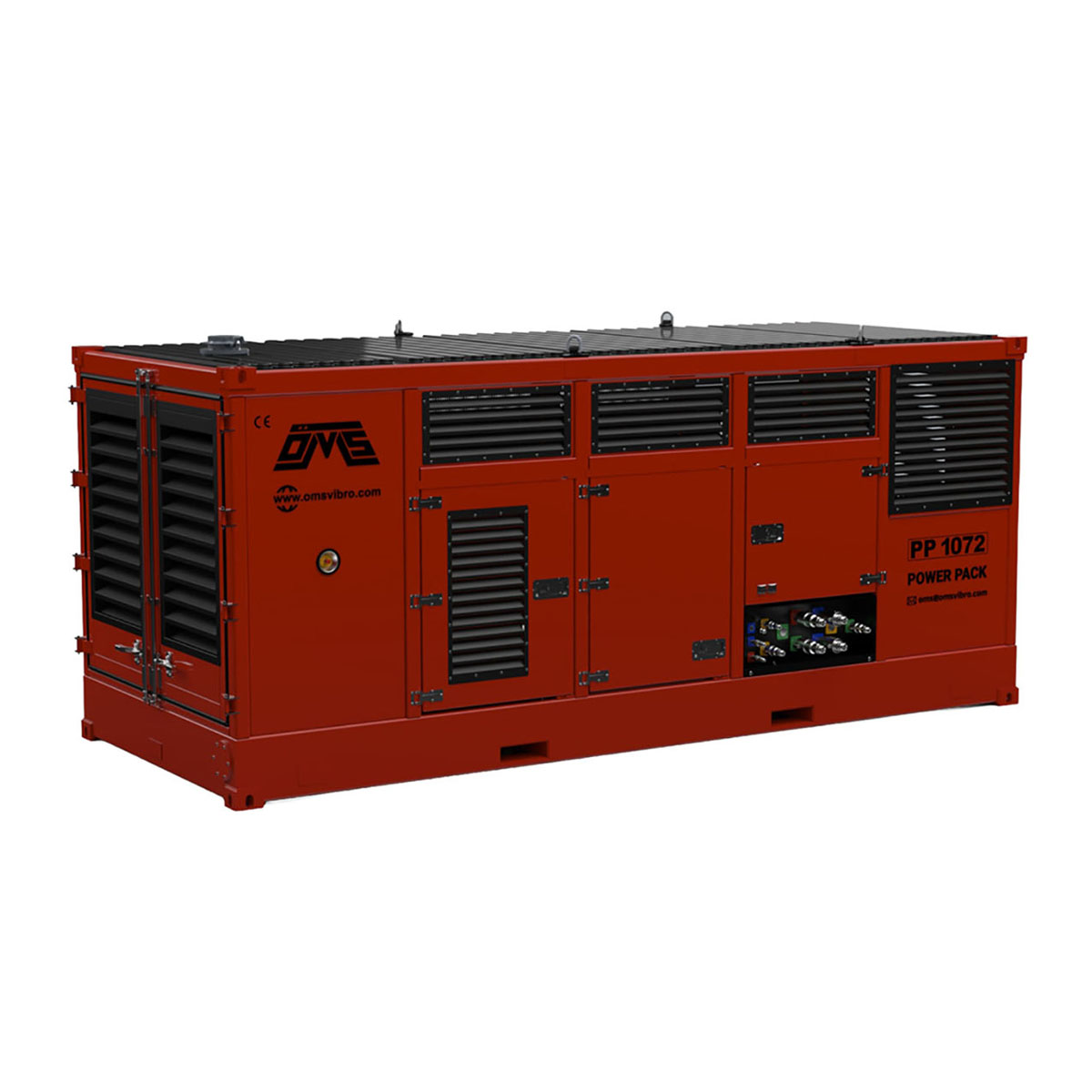

PP 1072 Hydraulic Power Unit

OMS Power Units can be controlled via the main control panel and instant information in relation to the hydraulic system, engine and retrospective failure logging can be obtained.

Advantages

  • User Friendly
  • Smart Control System
  • Touch Screen Control Panel
  • Predicts Possible Failures
  • High Performance
  • Enable to Self-Reprogramming
  • Powerful, Reliable and Long life

Technical Specifications

Engine Model2x Volvo TAD1345VE (Tier 2)
Power788 kW
Weight12000 kg
Oil Flow Max.1460 lpm
Pressure Max.350 bar
Oil Capacity2800 liter
Diesel Tank Capacity1000 liter
Width (W)2445 mm
Length (L)6060 mm
Height (H)2590 mm
Engine Model2x Volvo TAD1345VE (Tier 2)
Power1072 hP
Weight26448 lbs
Oil Flow Max.385 gpm
Pressure Max.5076 psi
Oil Capacity739 gal
Diesel Tank Capacity264 gal
Width (W)96 in
Length (L)239 in
Height (H)102 in
