KCN 185 Hydraulic Double Clamp For Pipe Piles

Ideal for Driving and Extracting Pipes of Various Diameters

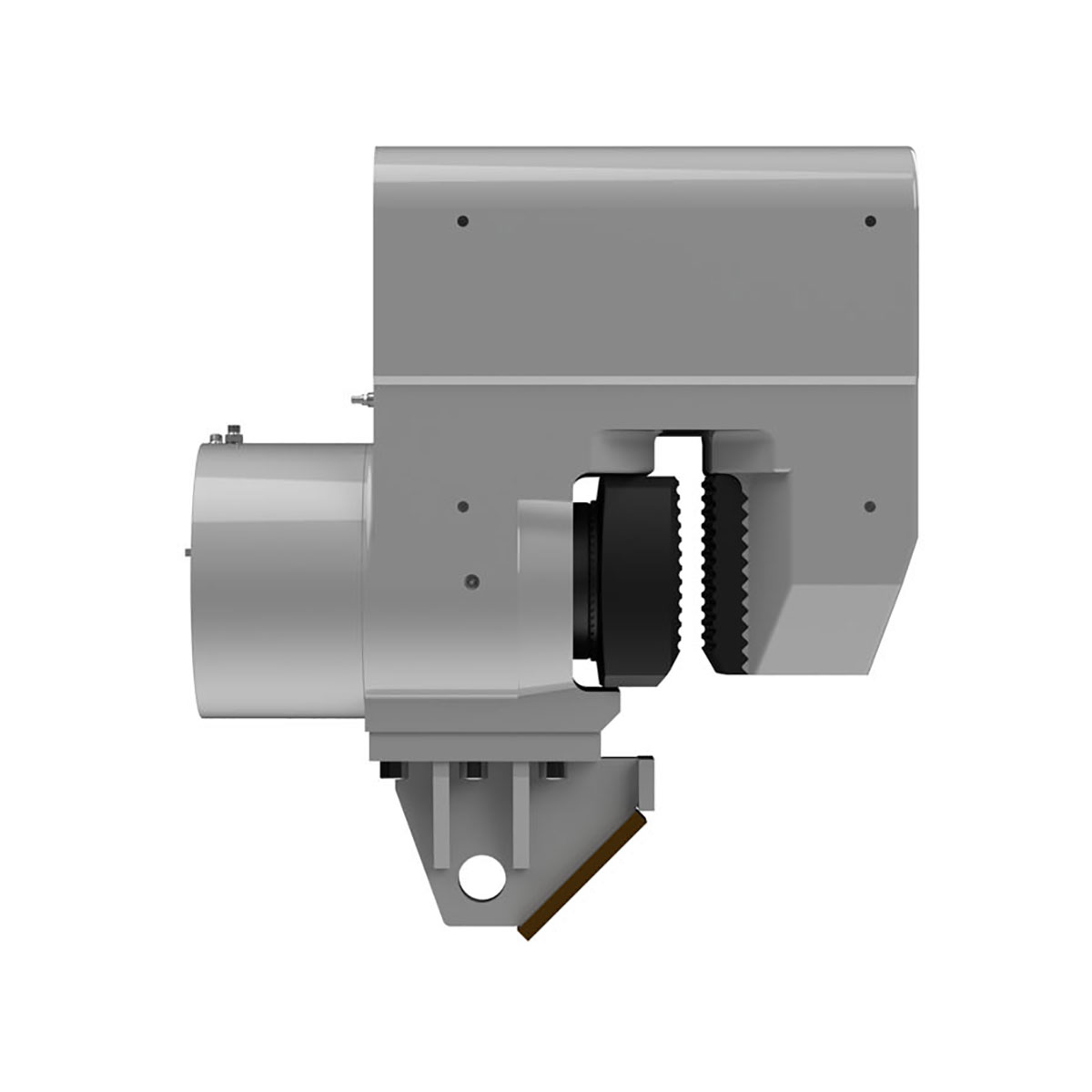

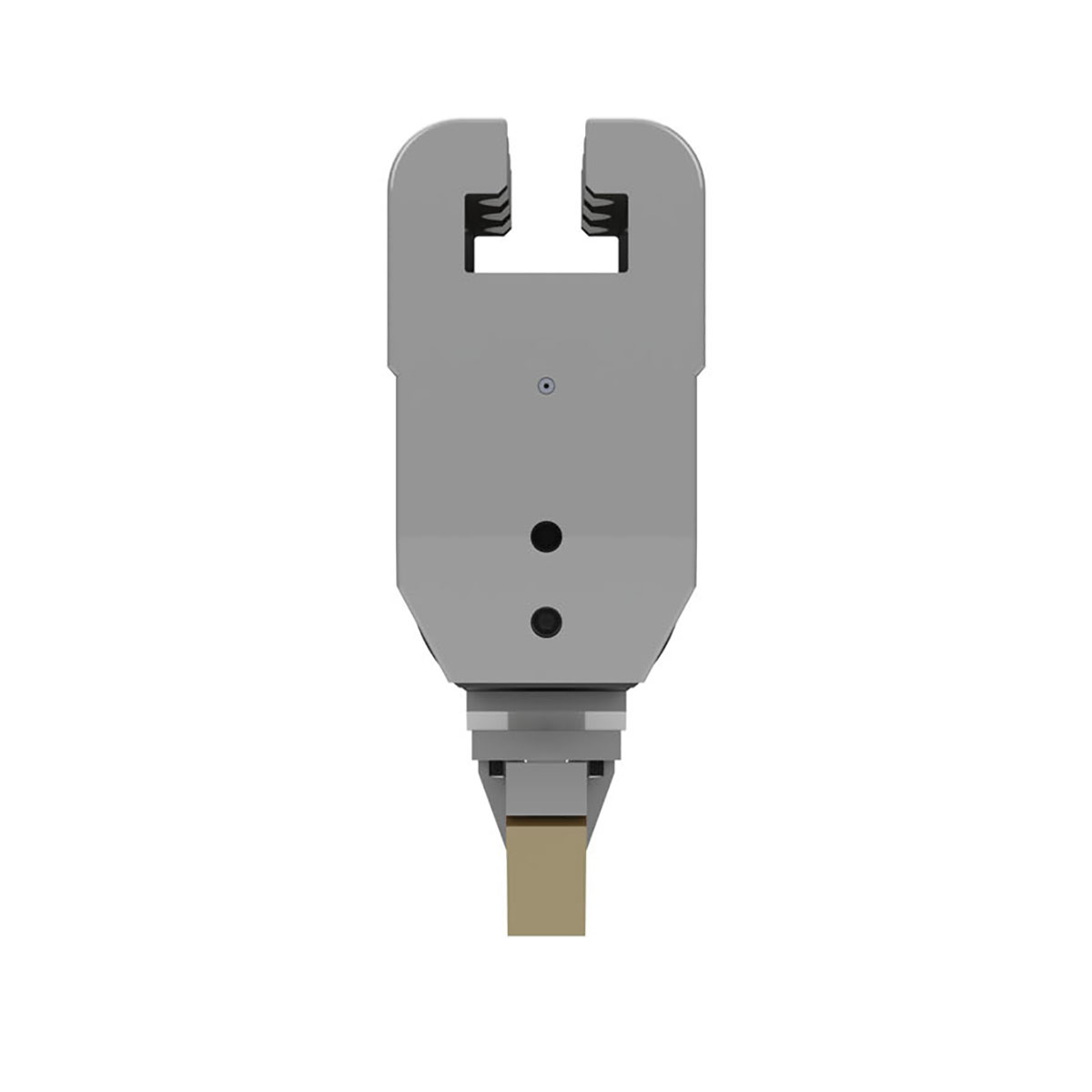

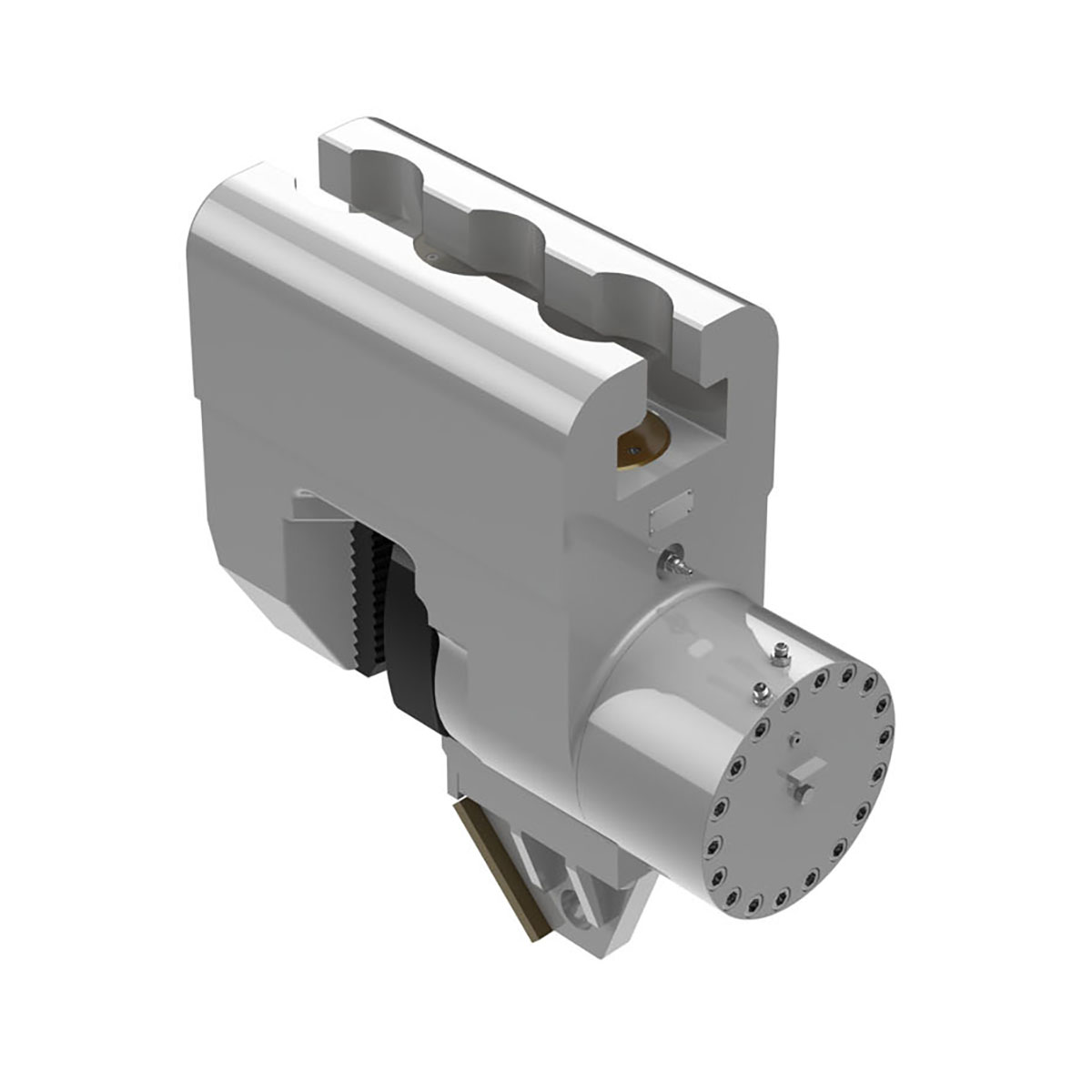

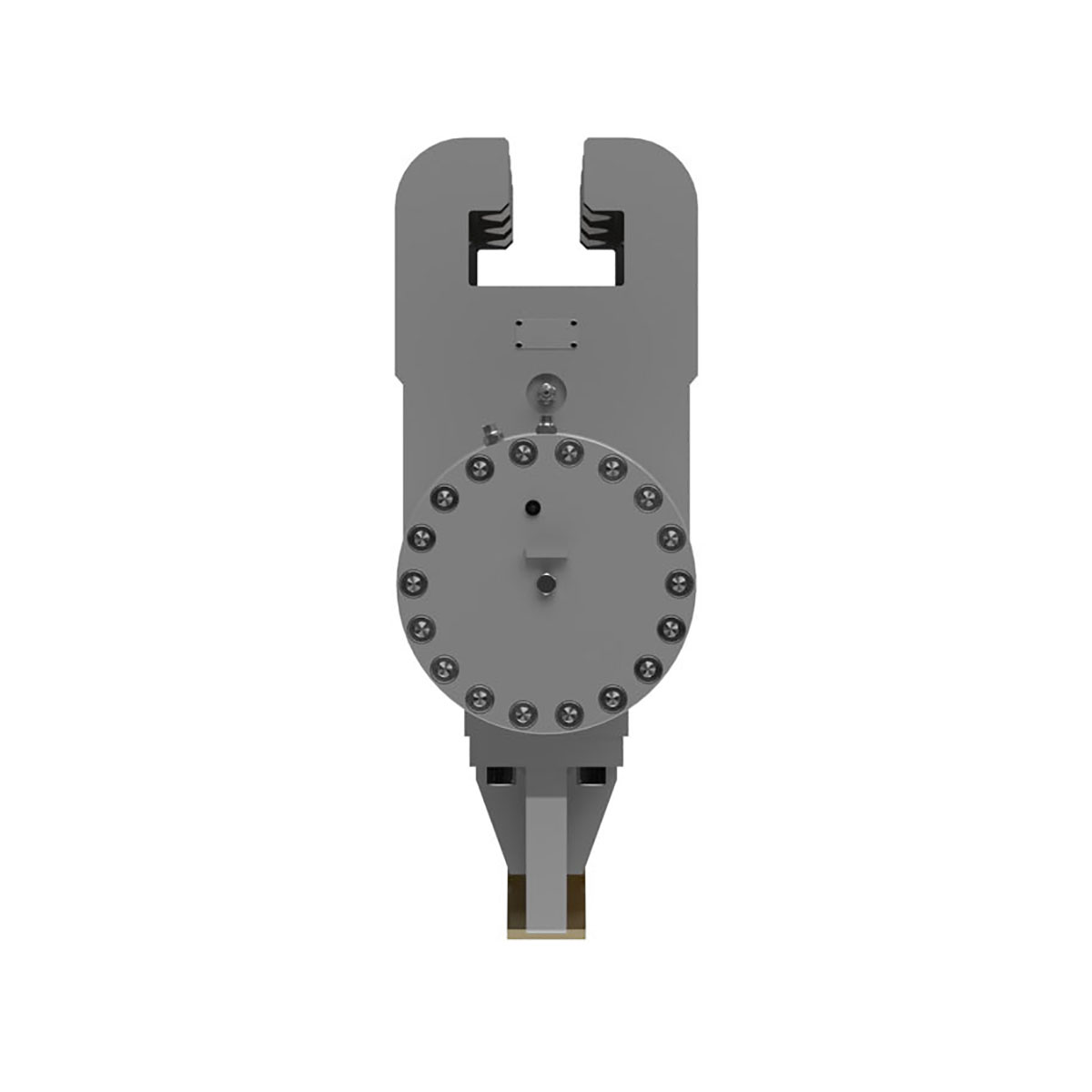

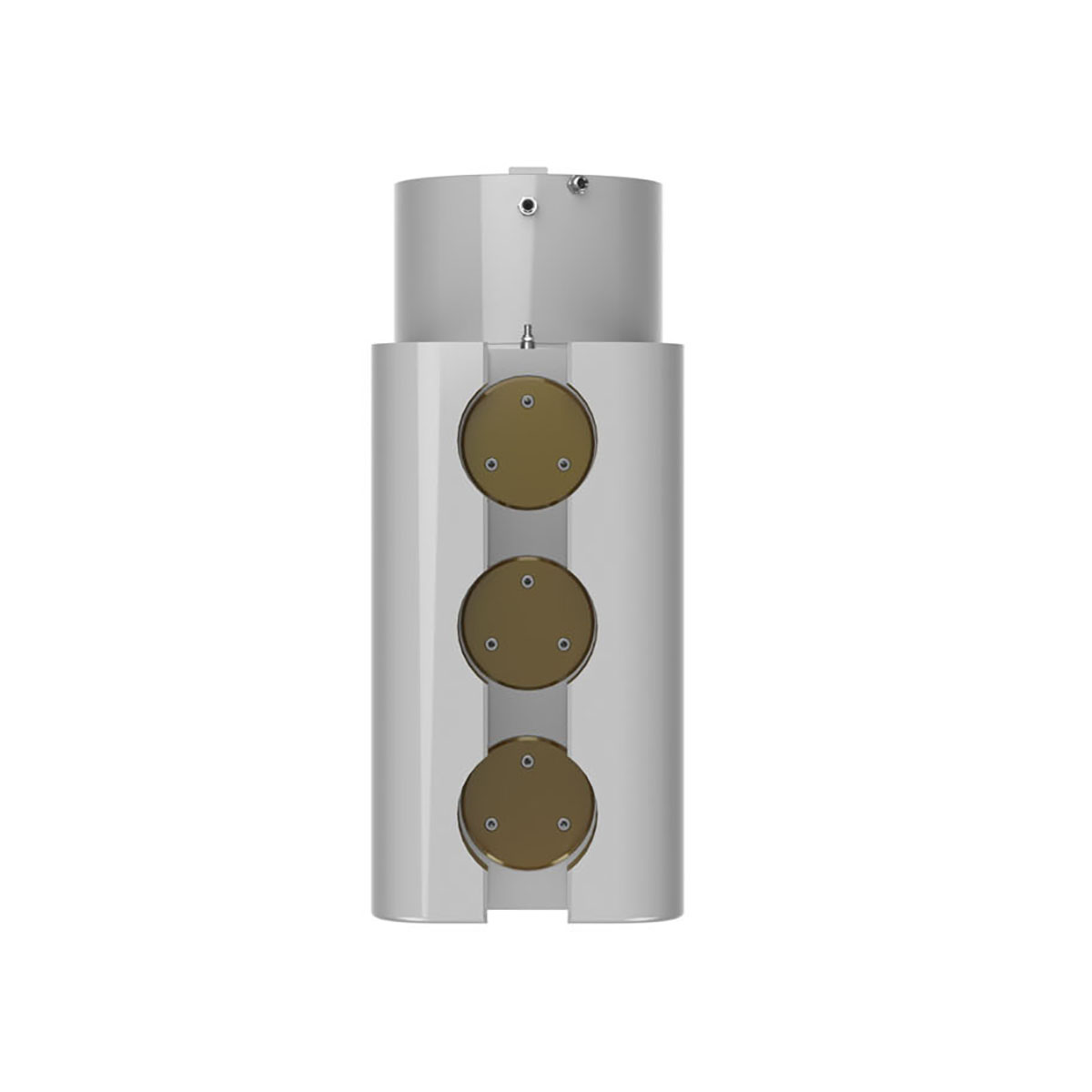

Manufactured from specially alloyed cast steel, the clamp features two gripping jaws—one fixed and one movable. The hydraulic clamp includes a hydraulic cylinder that closes the movable jaw with clamping pressure up to 350 bar.

The jaws open and close via the “clamp open/close” button on the remote control. The clamping and releasing process is completed within a few seconds.

Advantages

Ideal for driving and extracting pipes of various diameters.
Thanks to the piston locking system, it can be securely fixed to the beam.
Easy to install.

Technical Specifications

Clamping Force	1858×2 kN
Weight	1164×2 kg
Working Pressure	350 bar
Length / L	913 mm
Width / W	370 mm
Height / H	996 mm

Clamping Force	209×2 tons
Weight	2566×2 lbs
Working Pressure	5076 psi
Length / L	36 in
Width / W	15 in
Height / H	39 in

Download Flyer

Technical Specifications of “H”-Type Sheet Piles

Vibratory hammer	Diameter D (mm)	L1 (mm)	Weight (kg)
SVR 80 NF	600–2100	1485 x 2	425 x 2
SVR 82 NF	600–1650	1275 x 2	410 x 2
SVR 120 NF	600–2050	1522 x 2	445 x 2
SVR 40 VM	600–1600	1422 x 2	354 x 2
SVR 50 VM	600–1800	1150 x 2	382 x 2
