SVR 24 VM
Crane Suspended Pile Driver
The SVR Variable Moment vibrator range does not vibrate during start up and stopping due to the phase shifter and vibrates at a higher speed while running. This reduces the disturbance to surrounding soils.
- Environmentally – friendly technology,
- Adjustable amplitude,
- Resonance free start – stop,
- Optimum force applying to soil conditions,
- Powerful, reliable and long life.
Technical Spesification
| Eccentric Moment (kgm) | 0 – 24 |
| Centrifugal Force (kN) Max. | 1396 |
| Frequency (rpm) | 2300 |
| Oil Flow (l/min) | 679 |
| Power (kW) | 362 |
| Amplitude (mm) | 13 |
| Pulling Force (kN) | 470 |

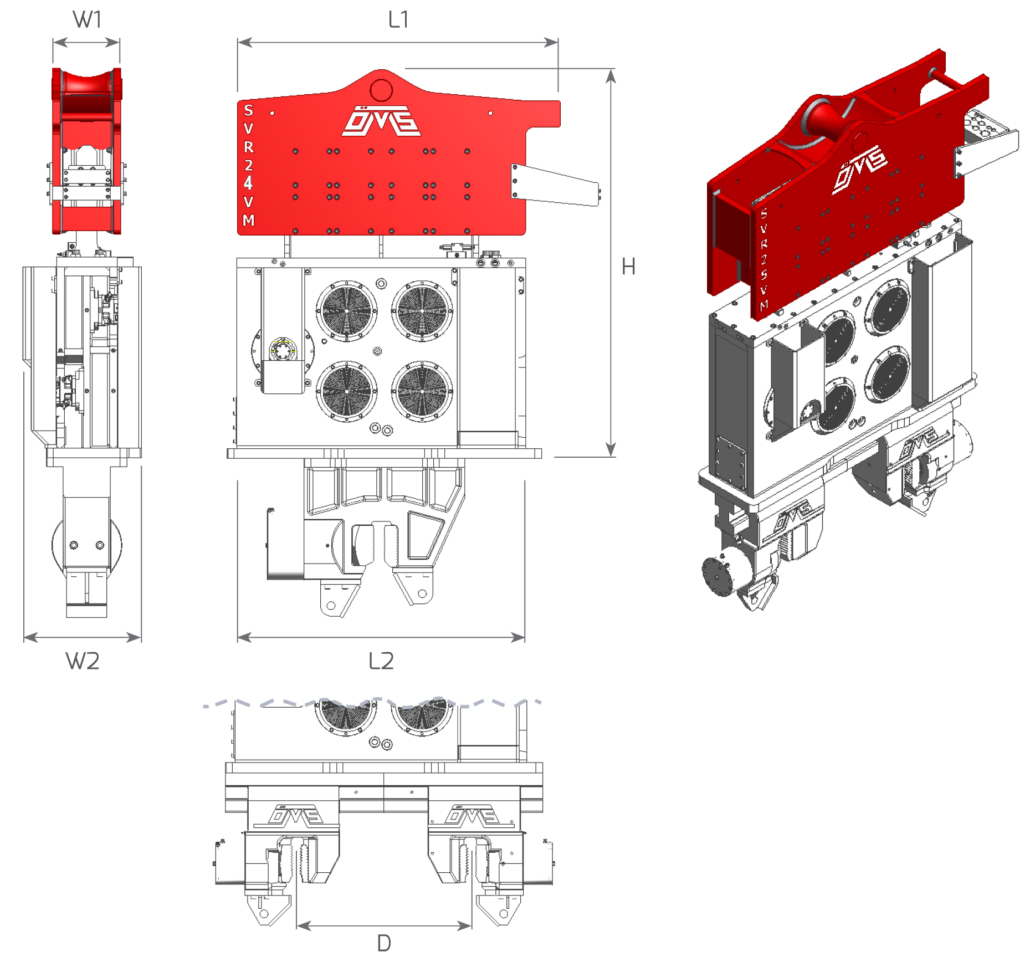

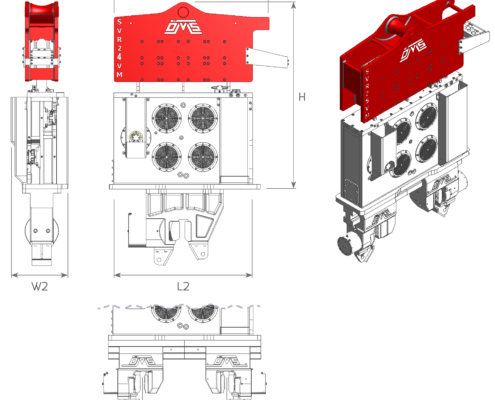

Weight and Dimensions
Recommended Clamp Types & Power Packs

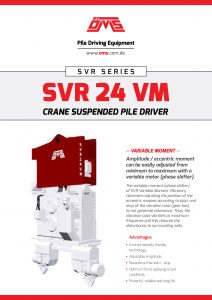

Download
