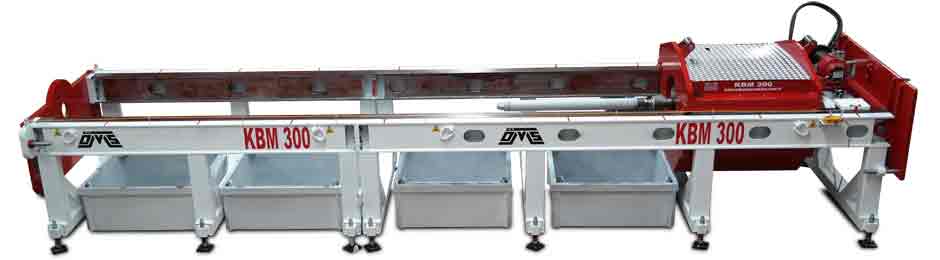

GUIDED AUGER BORING MACHINES (KBM SERIES)
The gas pipes, waste water pipes, electricity cabling, etc. under the highways, railways or canals lined Guided Auger Boring Machine KBM.
OMS – KBM Series offers unique solution to operating in heavy clays and stiff soils in busy urban situations. KBM Series covers the diameters from DN 200 – DN 1200 in steel pipes. This system has a compact foodprint on the job site, requiring from minimum to maximum shaft by making this system the ideal answer for trenchless technology in build up cities and towns.
KBM Series can provide required slope and direction with high precision. This Guided Boring System is used in the pilot drilling stage. A special system in inserted in the directional head, and the camera system follows the path from inside the drill stems.
TECHNICAL SPECIFICATIONS
| KBM 125 | KBM 300 | |
|---|---|---|
| Diesel Engine Power | 88 kW (120 HP) | 147 kW (200 HP) |
| Operating Pressure | 320 bar | 320 bar |
| Oil Flow Capacity | 210 l/min | 260 l/min |
| Oil Flow Capacity | 42 l/min | 104 l/min |
| Max. Spindle Speed | 0 – 25 rpm | 0 – 25 rpm |
| Max. Spindle Speed | 0 – 50 rpm | 0 – 25 rpm |
| Max. Torque | 30.560 Nm @ 25 rpm | 46.000 Nm @ 25 rpm |
| Max. Torque | 15.280 Nm @ 50 rpm | 2 x 1472 kN |
| Thrust Force | 2 x 603 kN | 1.100 mm |
| Stroke | 1.130 mm | Ø 300 – Ø 1.200 |
| Max. Drill Diameter | Ø 200 – Ø 800 | 13.950 kg |
