AUGER BORING MACHINE – Trenchless Technology
OMS Auger Boring Machine is designed to bore the inevitable need of many public works and construction applications, the coated holes of diameter between 12’’ and 120’’.
Fast and easy usage, efficient performance and outstanding power and engineering are the features of OMS Auger Boring Machines.

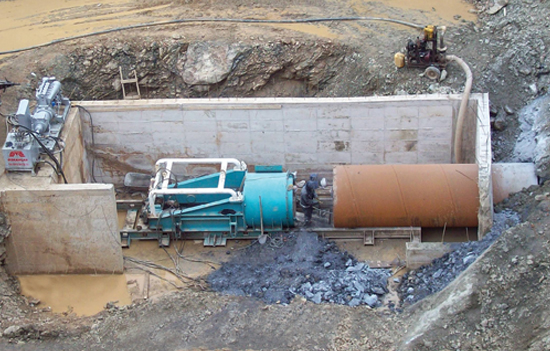

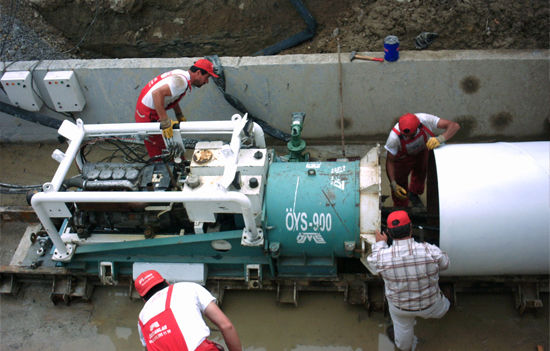

Boring method is the procedure to drive the pipes whose diameter varies between 250 mm – 1800 mm through auger horizontal drill. With this method, all kinds of highway, railway, passing can be managed. At the lines where Cover Steel Pipes should be used, OYS Series horizontal pipe jacking machines which we manufacture and sell and which work with the method of drilling and discharging are used.
TECHNICAL DATA
Technical Spesifications
| ÖYS 42 | ÖYS 60 | ÖYS 72 | |
|---|---|---|---|
| Engine Power | 70 – 80 HP Diesel | 160 HP Diesel | 180 HP Diesel |
| Transmission | 3 ileri 1 geri | 6 ileri 1 geri | 6 ileri 1 geri |
| Thrust | 115 ton | 544 tons | 544 tons |
| Rail Lenght (Q) | 2 x 3.00 m | 2 x 3.00 m | 2 x 3.00 m |
| Drive | 12.70 mm/s | 8.33 mm/s | 6.50 mm/s |
| Height (H) | 1300 mm | 2050 mm | 2100 mm |
| Lenght (L) | 3500 mm | 4350 mm | 4350 mm |
| Width (W) | 1200 mm | 2150 mm | 2150 mm |
| Weight (kg) | 3450 kgs | 8500 kgs | 12500 kgs |
| Drilling Diameter | 10’’ – 42’’ | 20’’ – 60’’ | 24’’ – 72’’ |
