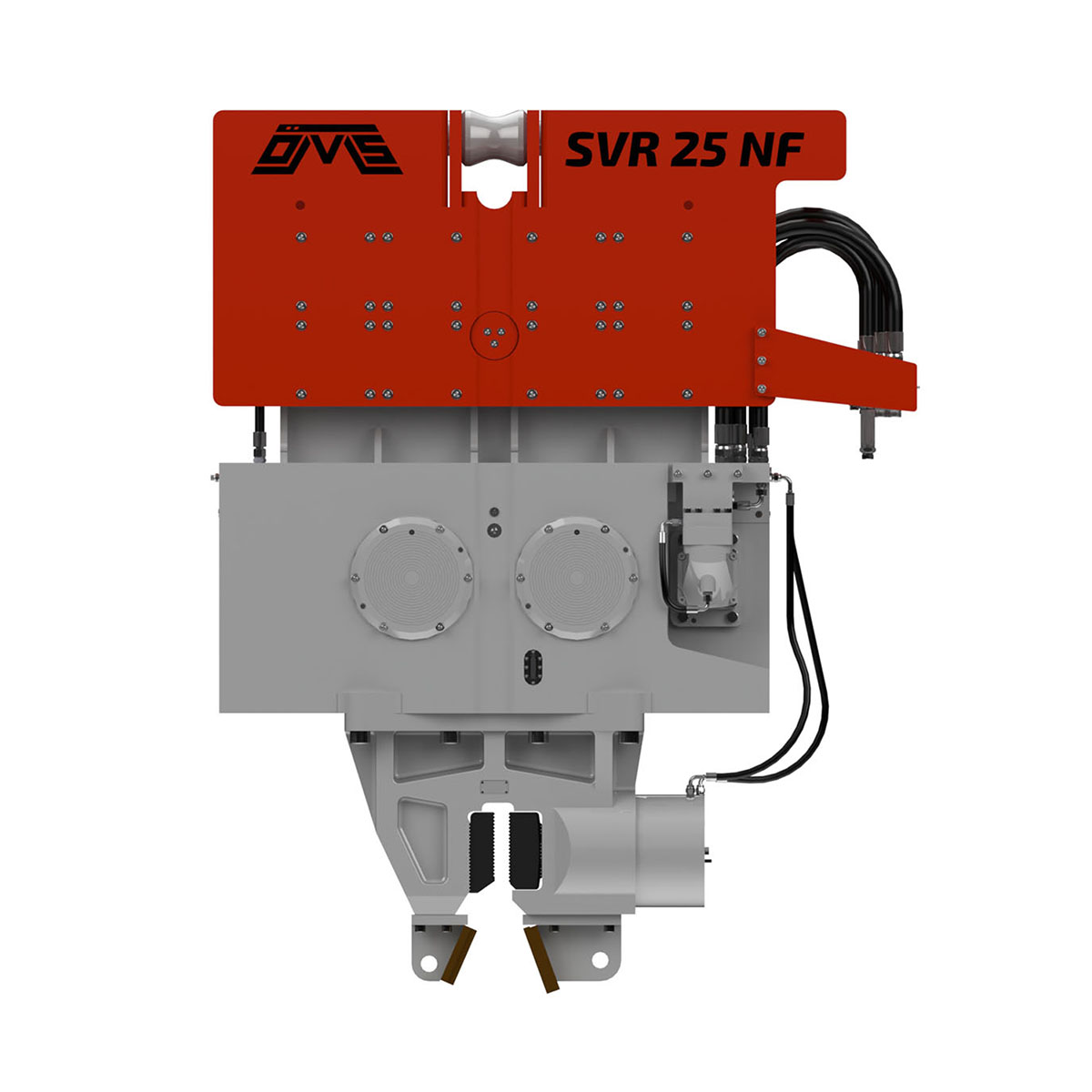

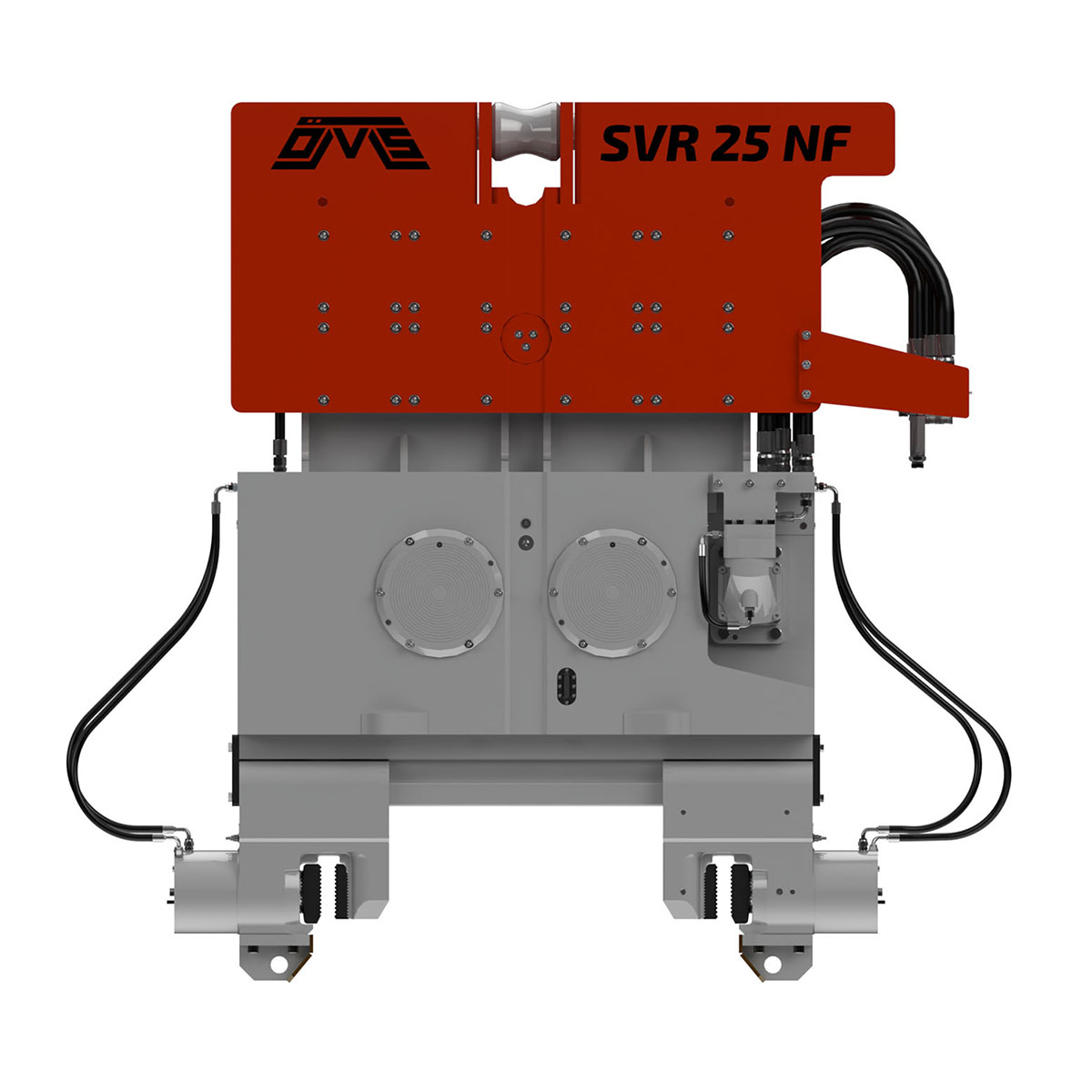

SVR 25 NF Normal Frequency Vibro Hammer

Complementary Products

Recommended Hydraulic Clamps

Recommended Power Packs

Recommended in projects requiring a high driving or extracting force.

Advantages

  • High performance,
  • Performance of desired power settings and work tracking by the control system,
  • Various clamp types to suit all pile profiles,
  • Innovative structure adapting to fast developing technology,
  • 24/7 technical services and spare part support,
  • Powerful, reliable and long life.

Technical Specifications

Eccentric Moment25 kgm
Centrifugal Force795 kN
Power195 kW
Total Weight W/O Clamp3384 kg
Length / L11998 mm
Height / H11705 mm
Width / W1371 mm
Eccentric Moment2170 in.lbs
Centrifugal Force89 tons
Power262 hp
Total Weight W/O Clamp6834 lbs
Length / L179 in
Height / H167 in
Width / W115 in
Download Flyer

Normal Frequency Vibro Hammer Applications
