KCN 60 Hydraulic Double Clamp For Pipe Piles

Ideal for Driving and Extracting Pipes of Various Diameters

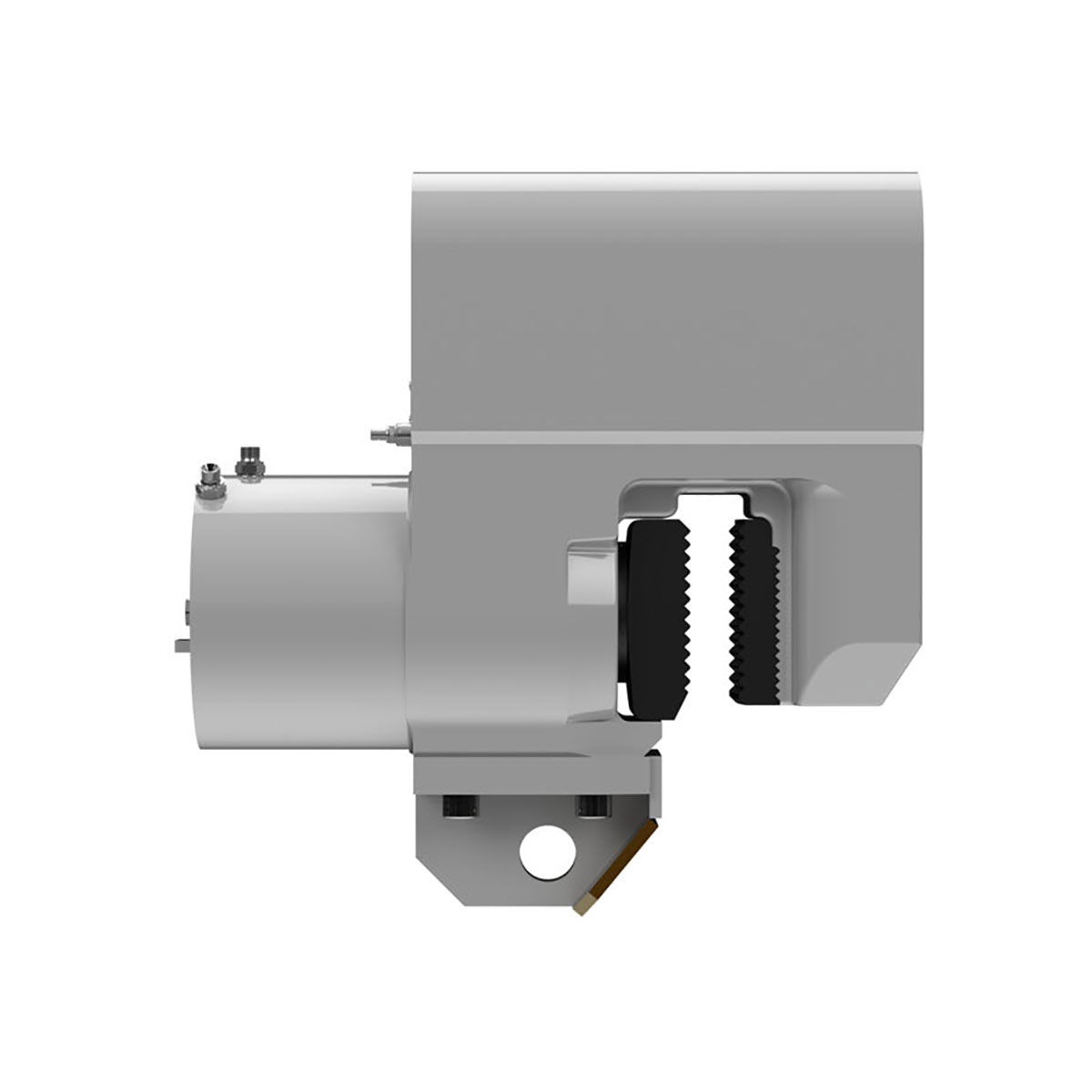

Manufactured from specially alloyed cast steel, the clamp features two gripping jaws—one fixed and one movable. The hydraulic clamp includes a hydraulic cylinder that closes the movable jaw with clamping pressure up to 350 bar.

The jaws open and close via the “clamp open/close” button on the remote control. The clamping and releasing process is completed within a few seconds.

Advantages

  • Ideal for driving and extracting pipes of various diameters.
  • Thanks to the piston locking system, it can be securely fixed to the beam.
  • Easy to install.

Technical Specifications

Clamping Force643×2 kN
Weight307×2 kg
Working Pressure320 bar
Length / L599 mm
Width / W250 mm
Height / H601 mm
Clamping Force72×2 tons
Weight677×2 lbs
Working Pressure4641 psi
Length / L24 in
Width / W10 in
Height / H24 in
Download Flyer

Technical Specifications of “H”-Type Sheet Piles

Vibratory hammerDiameter D (mm)L1 (mm)Weight (kg)
SVR 25 NF360–1030949 x 1224
SVR 30 NF360–19001245 x 2150 x 2
SVR 16 VM360–1020800 x 2115 x 2

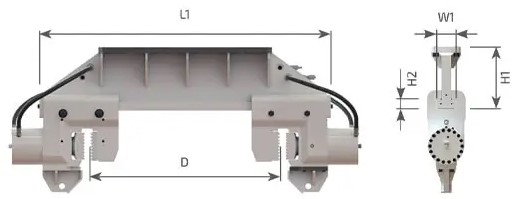

Technical Specifications of “T”-Type Sheet Piles

Vibratory hammerDiameter D (mm)L1 (mm)W1 (mm)H1 (mm)H2 (mm)Weight (kg)
OVR 120 S360–940184235534466312
