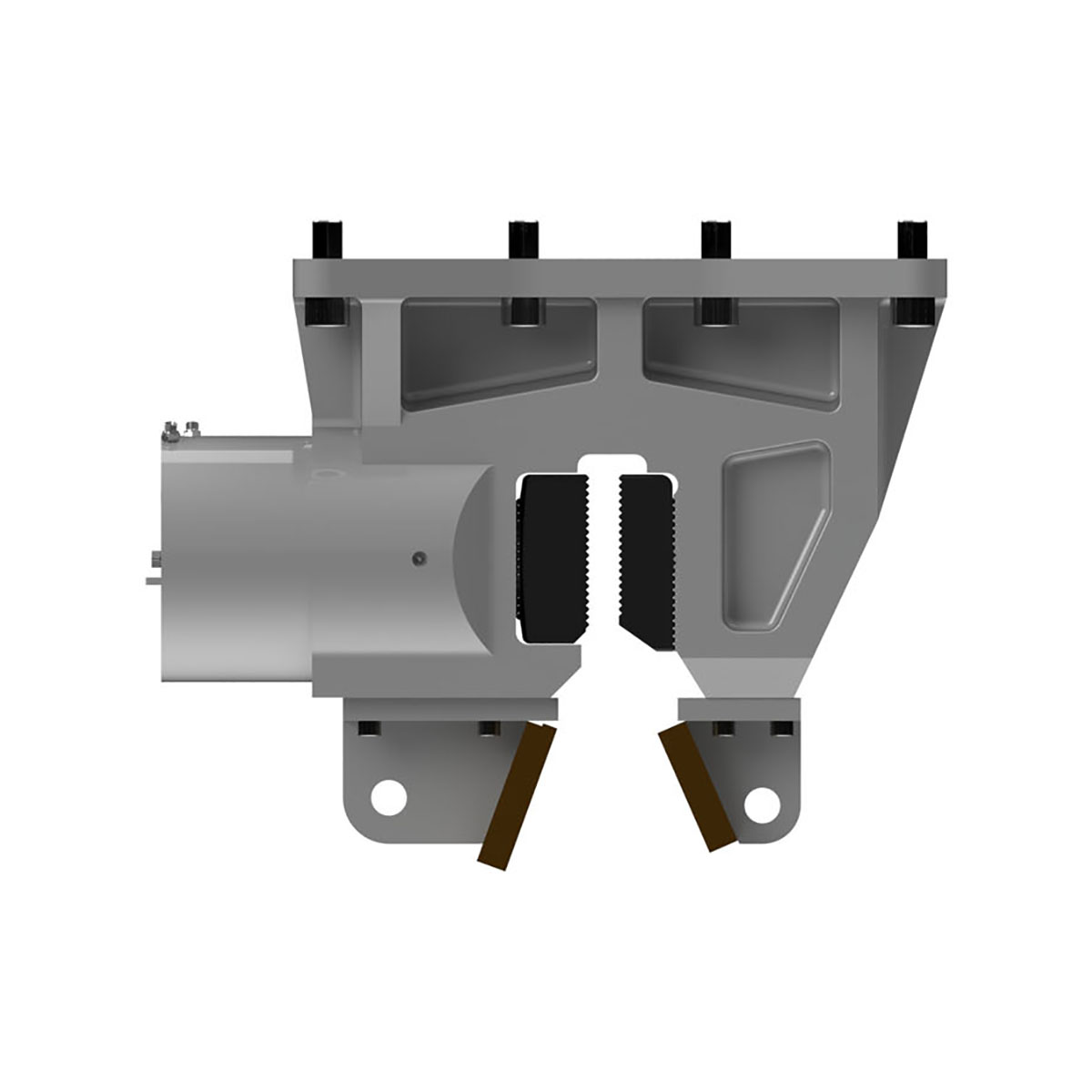

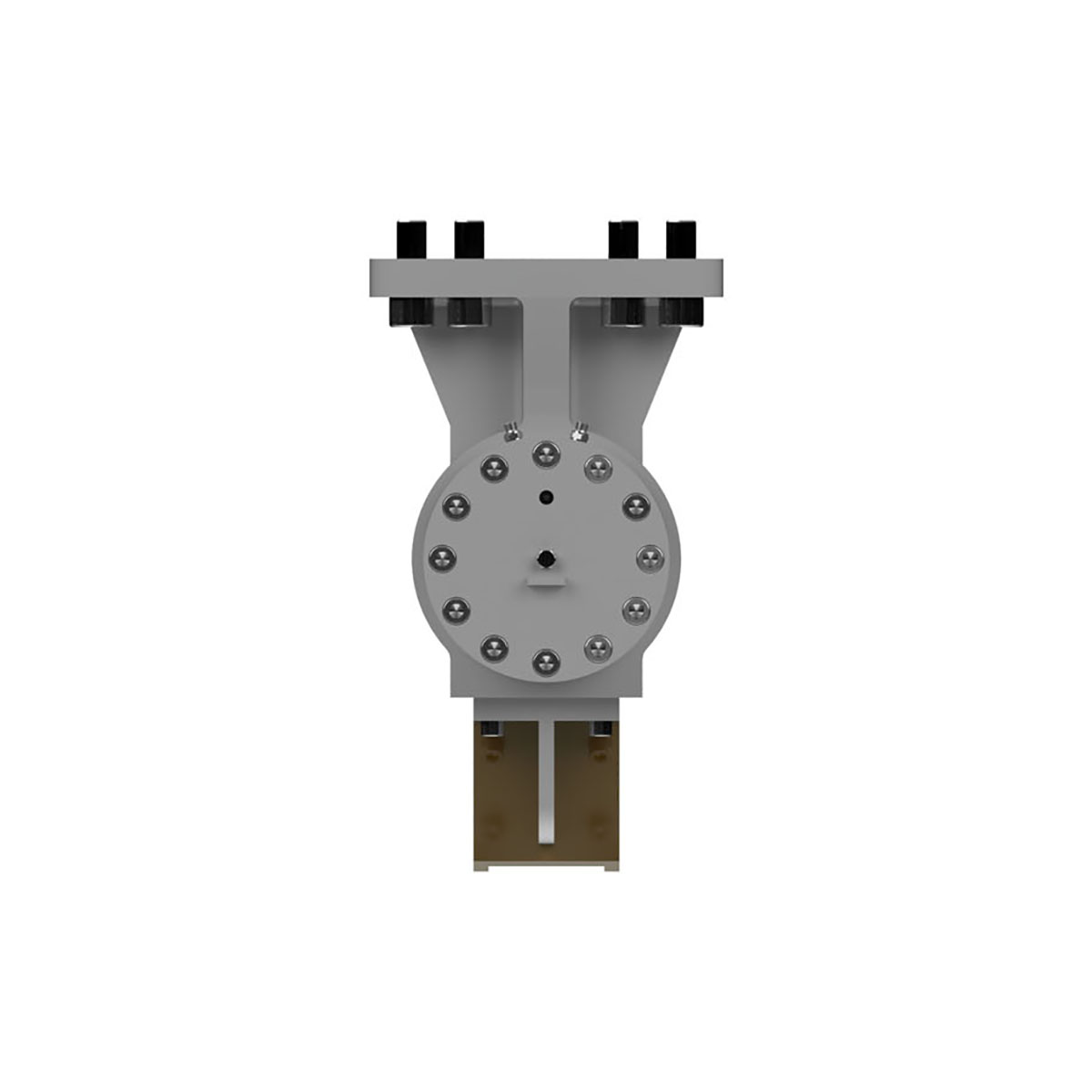

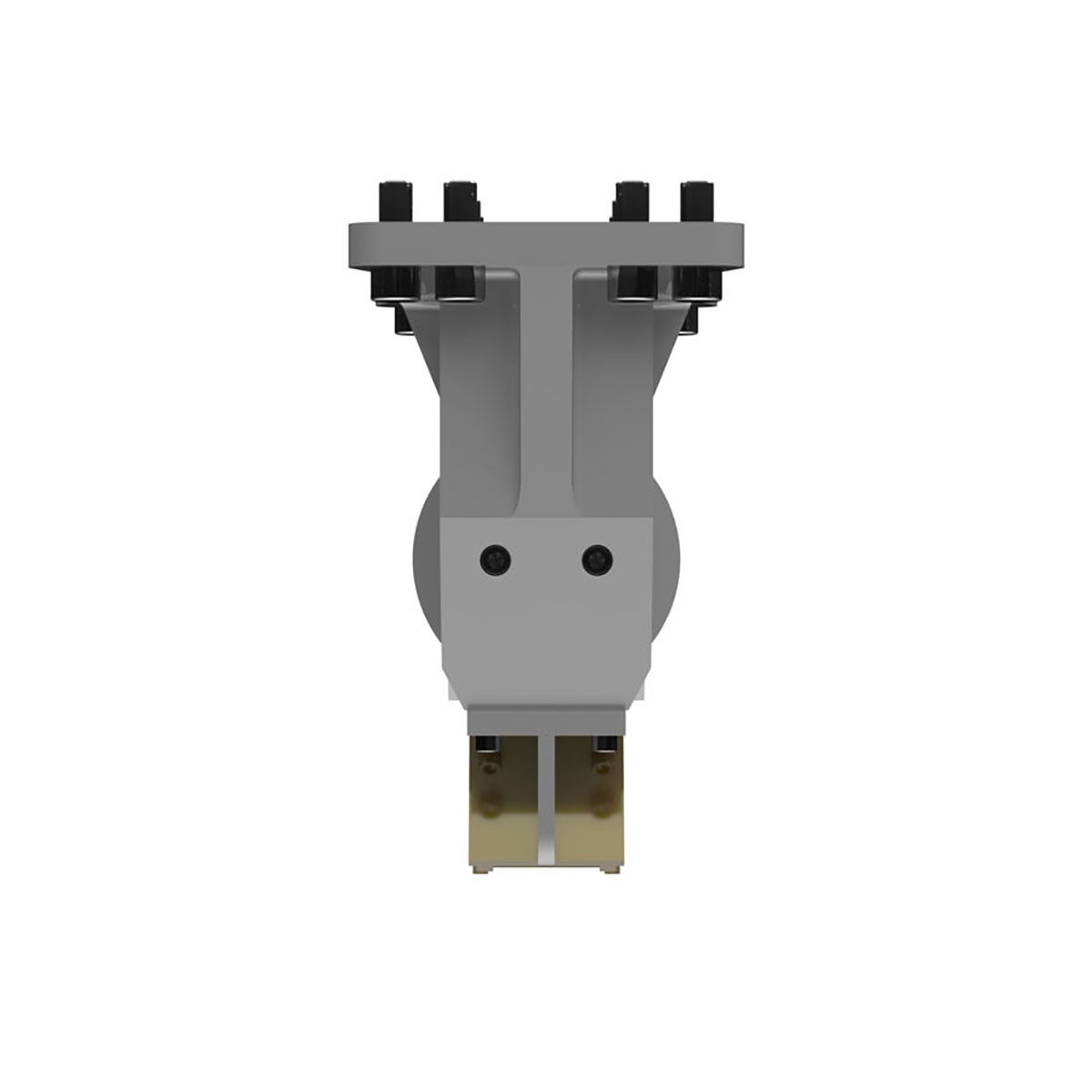

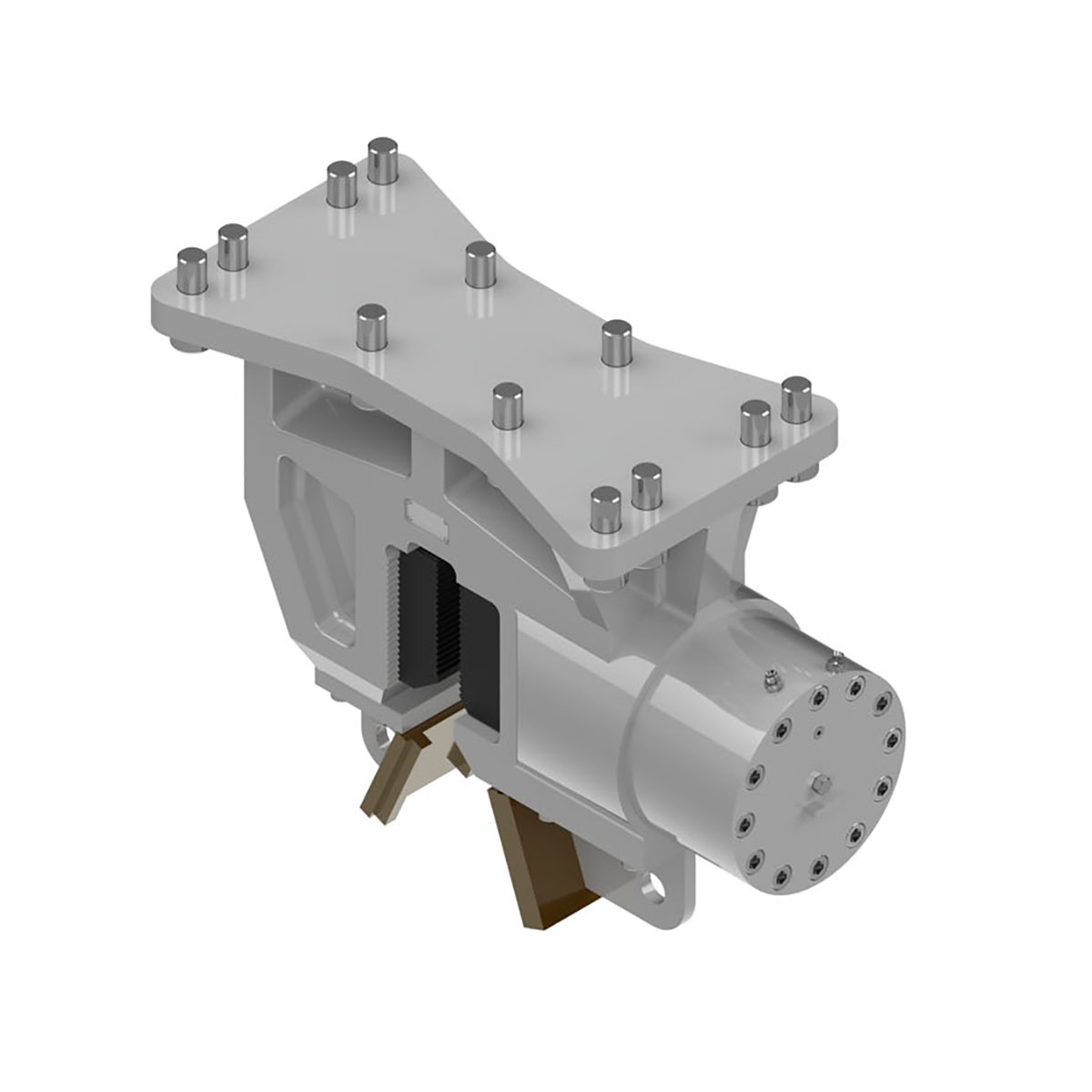

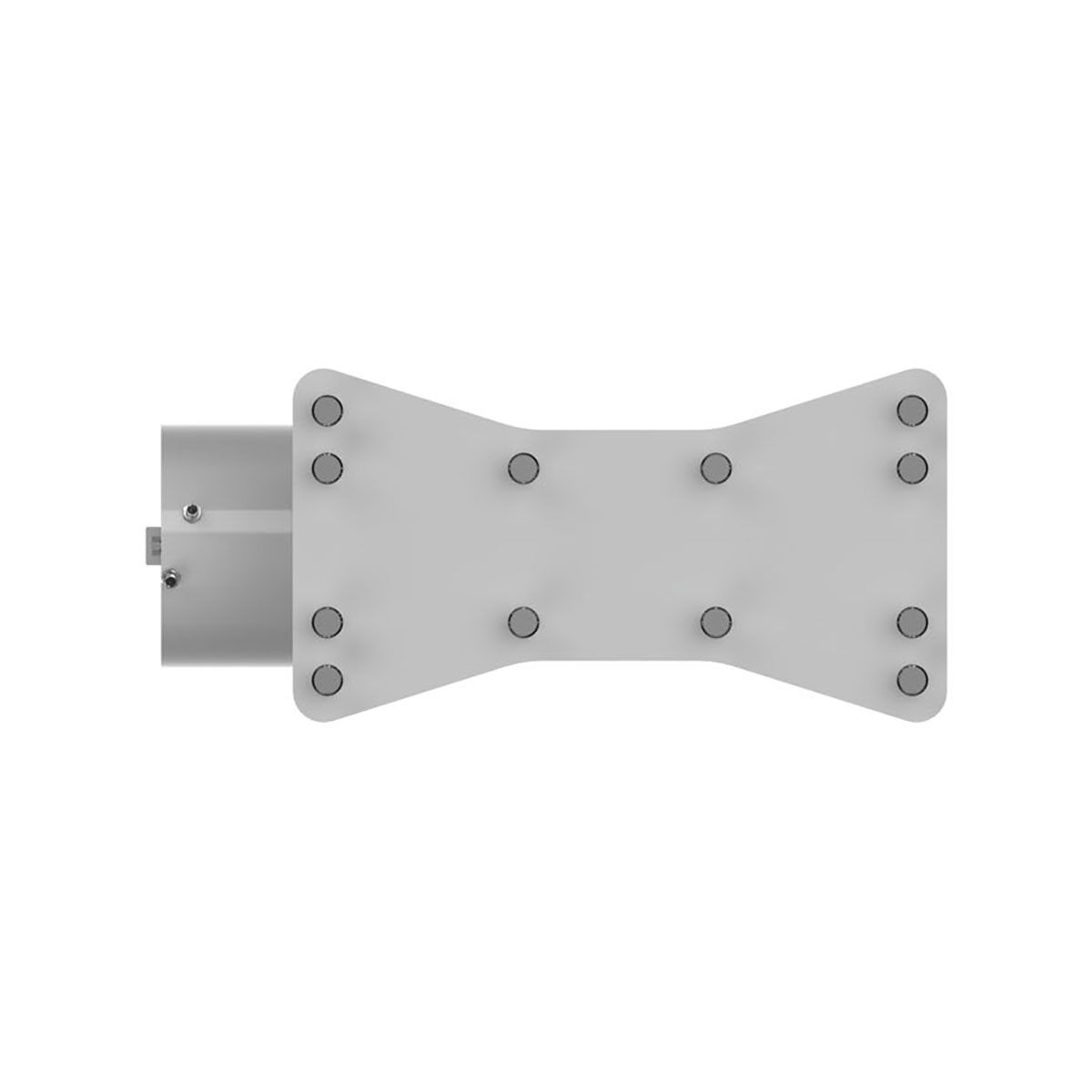

SCN 120 Hydraulic Clamp for Sheet Piles

Ideal for driving or extracting sheet piles.

Hydraulic clamps are manufactured from specially alloyed cast steel and feature two gripping jaws. One of these jaws is “fixed” while the other is “movable.” The hydraulic clamp includes a hydraulic cylinder that closes the movable jaw with a clamping pressure of up to 350 bar.

The jaws open and close by pressing the “clamp open/close” button on the remote control. The clamping and releasing process is completed within a few seconds.

Advantages

  • Ideal for driving and extracting sheet piles.
  • Equipped with a chain for securely holding and easily lifting sheet piles.
  • Designed for easy installation and ergonomic operation.

Technical Specifications

Clamping Force1216 kN
Weight851 kg
Working Pressure320 bar
Length / L1039 mm
Width / W460 mm
Height / H783 mm
Clamping Force137 tons
Weight1876 lbs
Working Pressure4641 psi
Length / L41 in
Width / W18 in
Height / H31 in
