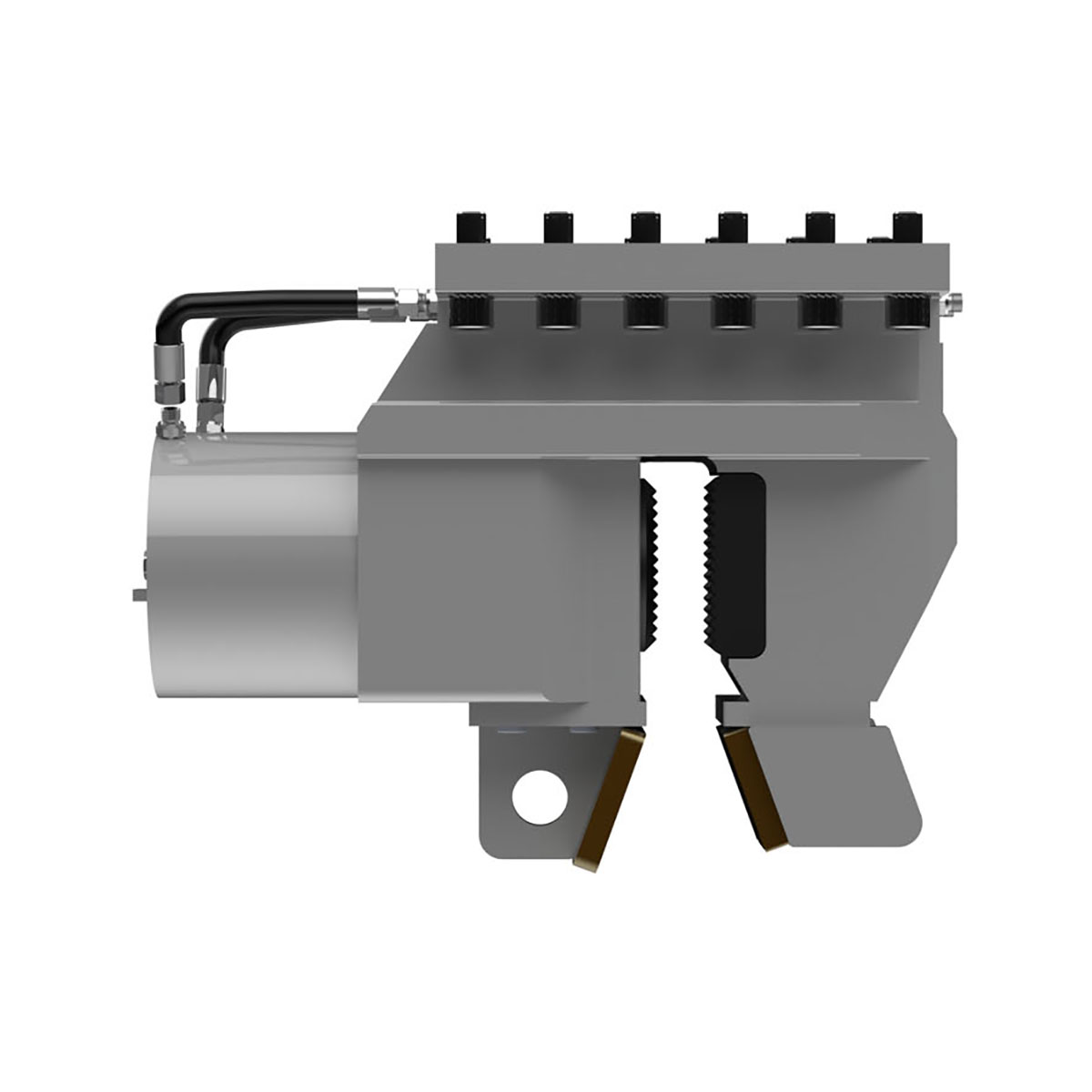

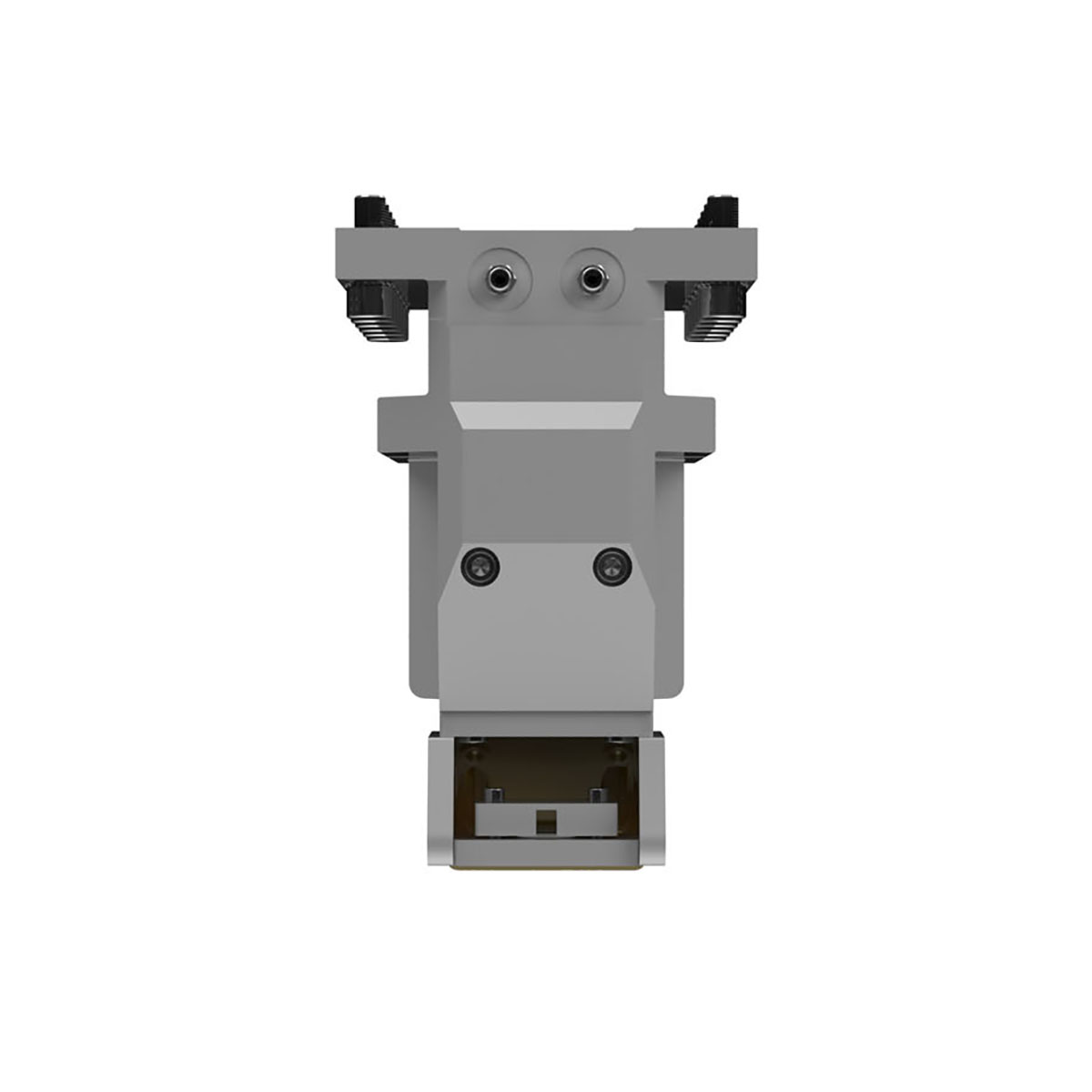

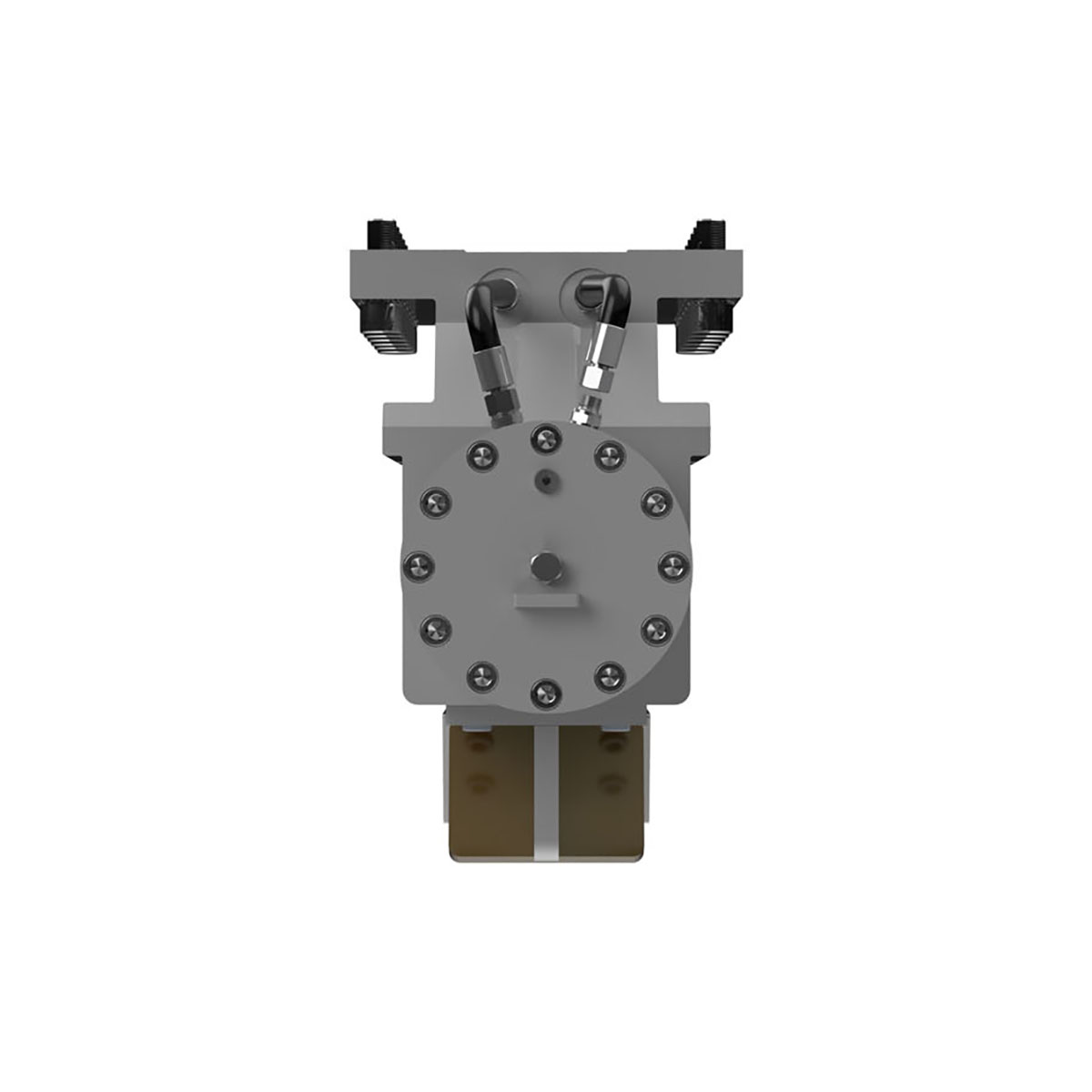

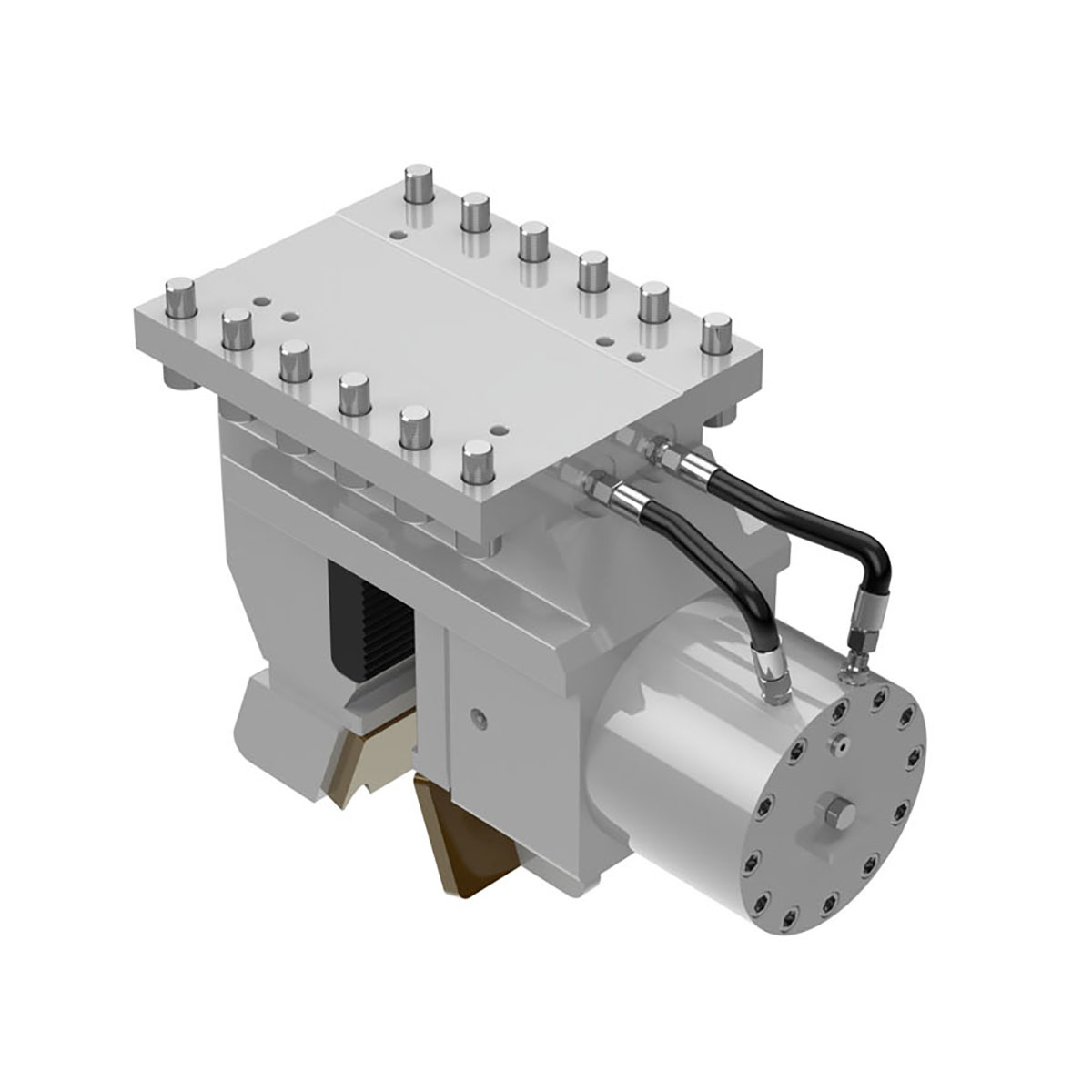

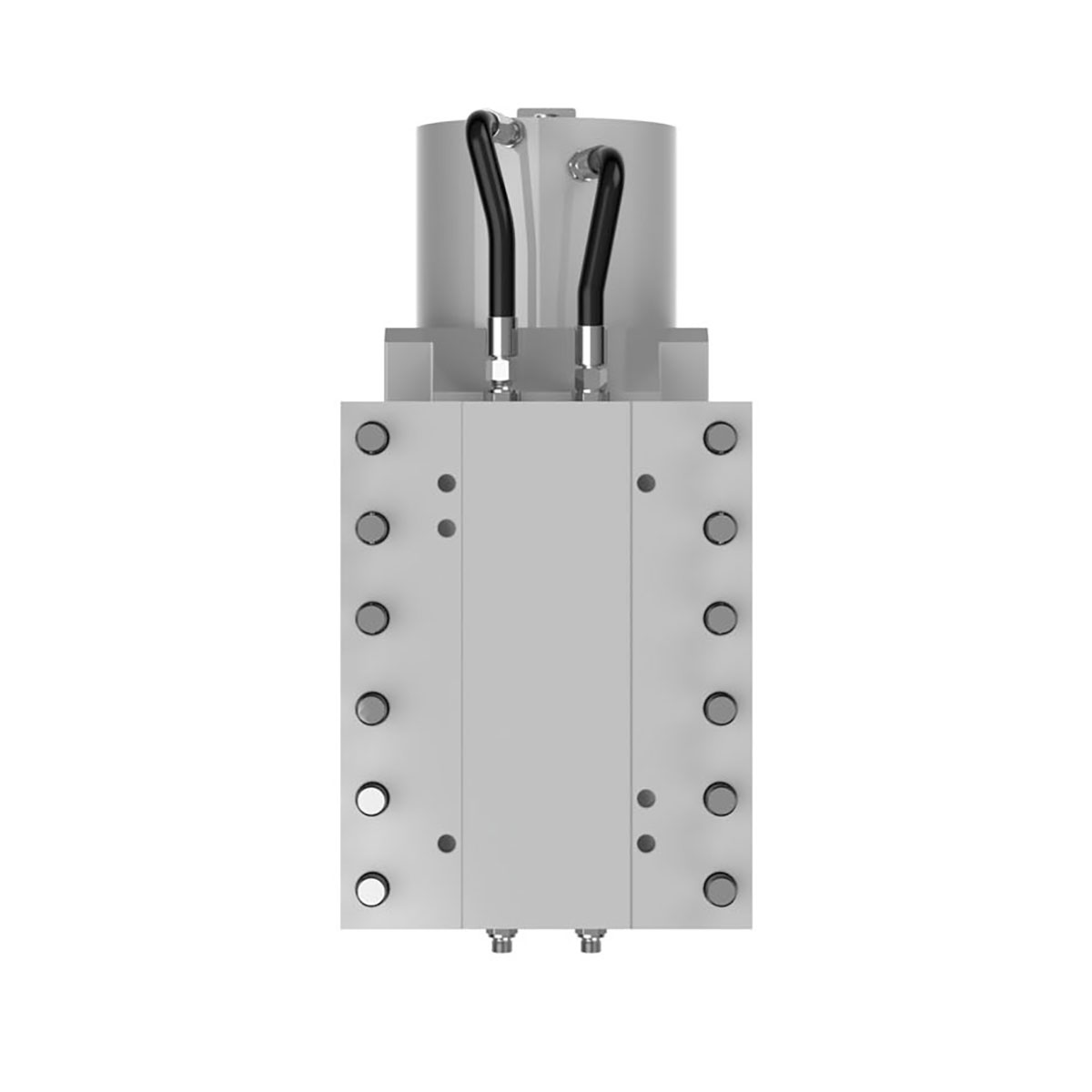

SCN 60 Hydraulic Clamp for Sheet Piles

Ideal for driving or extracting sheet piles.

Hydraulic clamps are manufactured from specially alloyed cast steel and feature two gripping jaws. One of these jaws is “fixed” while the other is “movable.” The hydraulic clamp includes a hydraulic cylinder that closes the movable jaw with a clamping pressure of up to 350 bar.

The jaws open and close by pressing the “clamp open/close” button on the remote control. The clamping and releasing process is completed within a few seconds.

Advantages

  • Ideal for driving and extracting sheet piles.
  • Equipped with a chain for securely holding and easily lifting sheet piles.
  • Designed for easy installation and ergonomic operation.

Technical Specifications

Clamping Force643 kN
Weight327 kg
Working Pressure320 bar
Length / L677 mm
Width / W320 mm
Height / H508 mm
Clamping Force72 tons
Weight720 lbs
Working Pressure4641 psi
Length / L27 in
Width / W13 in
Height / H20 in
