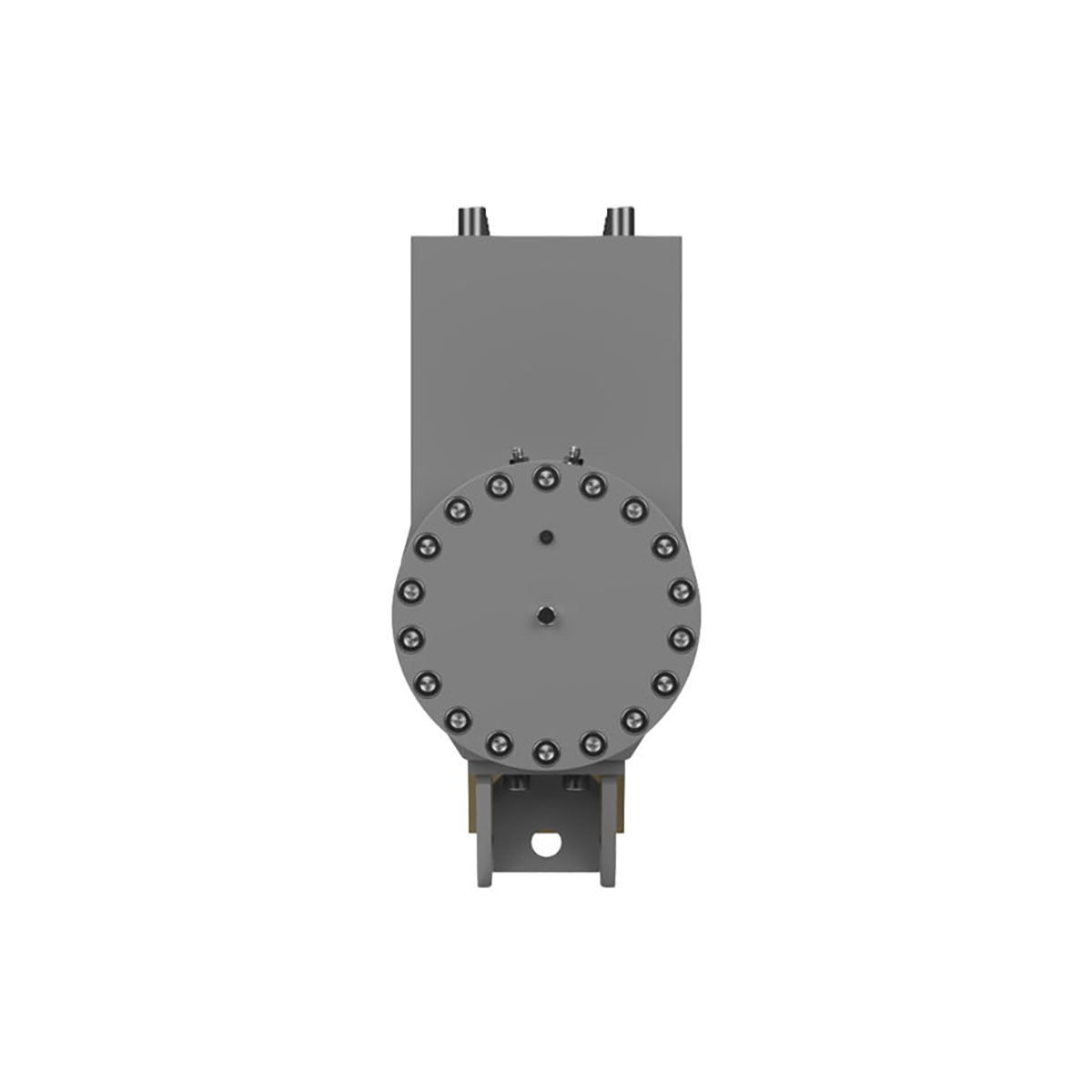

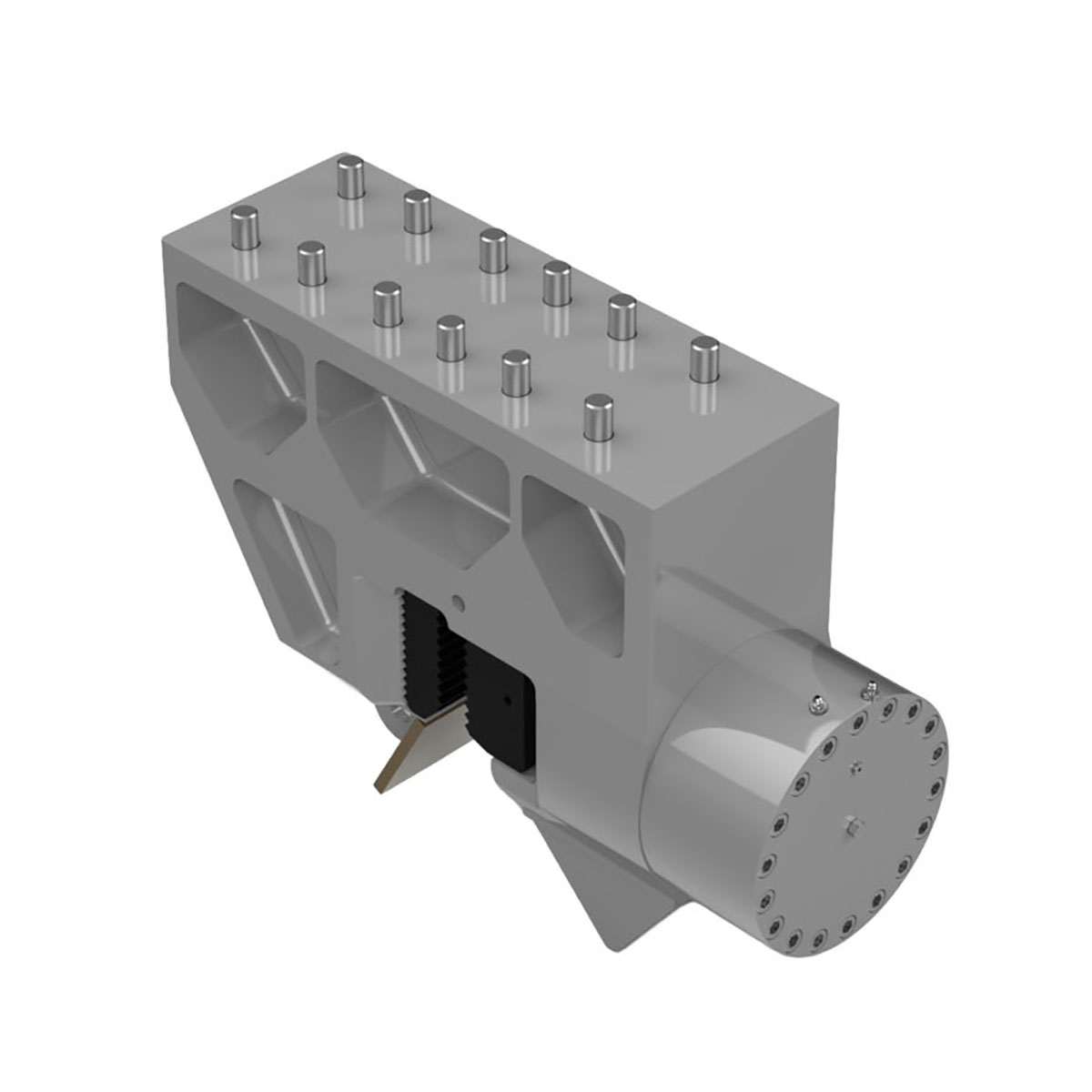

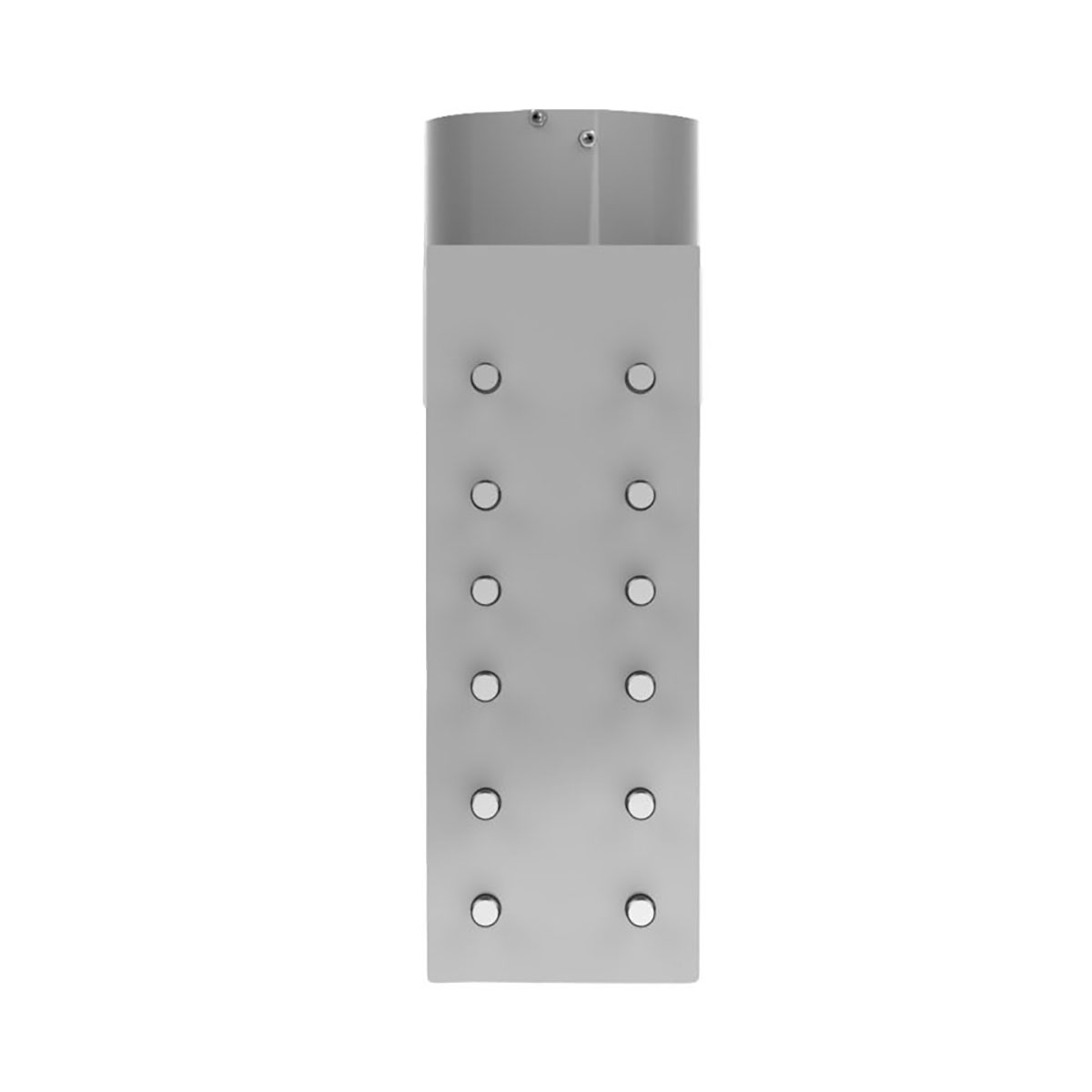

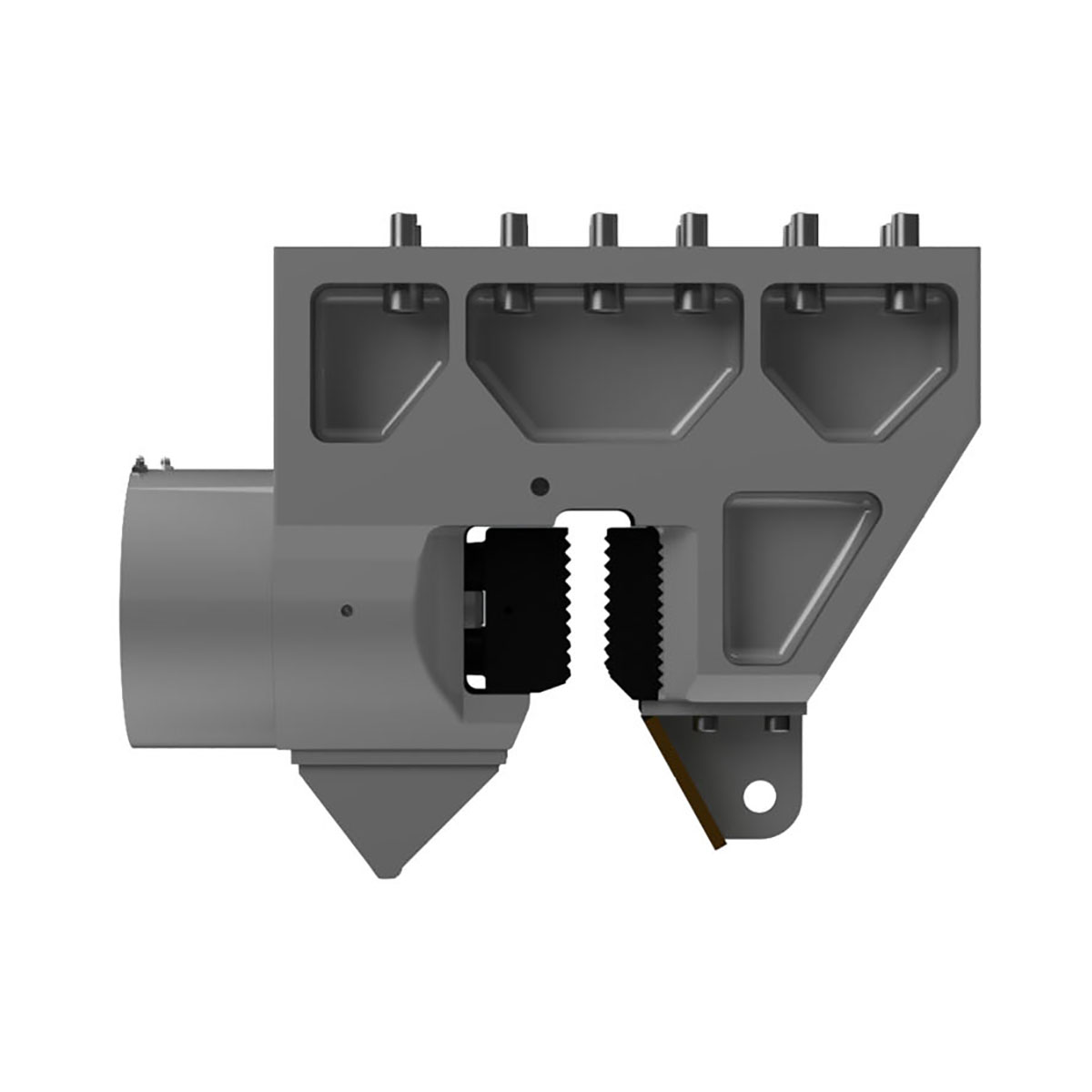

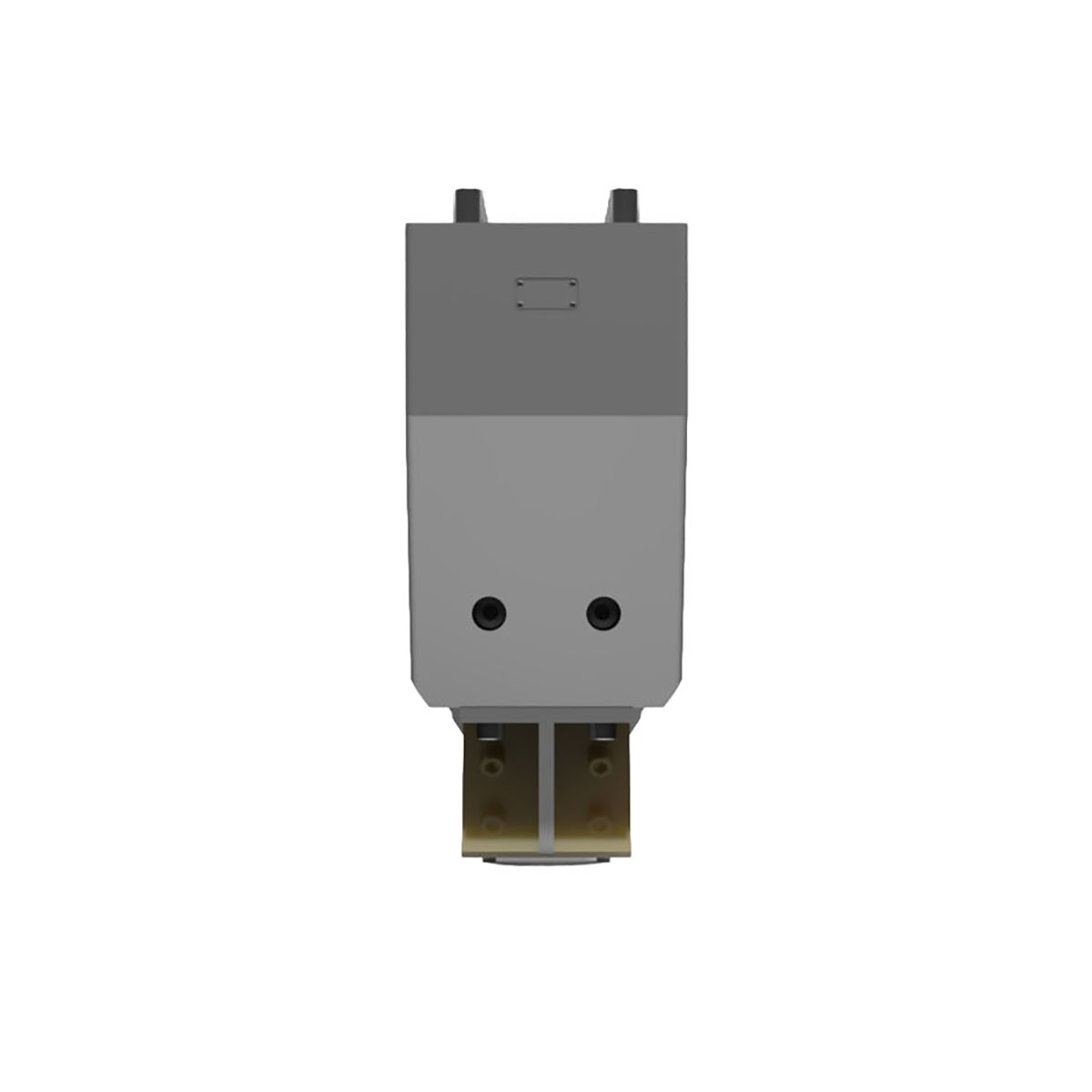

SCN 250 Hydraulic Clamp for Sheet Piles

Ideal for driving or extracting sheet piles.

Hydraulic clamps are manufactured from specially alloyed cast steel and feature two gripping jaws. One of these jaws is “fixed” while the other is “movable.” The hydraulic clamp includes a hydraulic cylinder that closes the movable jaw with a clamping pressure of up to 350 bar.

The jaws open and close by pressing the “clamp open/close” button on the remote control. The clamping and releasing process is completed within a few seconds.

Advantages

  • Ideal for driving and extracting sheet piles.
  • Equipped with a chain for securely holding and easily lifting sheet piles.
  • Designed for easy installation and ergonomic operation.

Technical Specifications

Clamping Force2262 kN
Weight1180 kg
Working Pressure320 bar
Length / L1143 mm
Width / W400 mm
Height / H904 mm
Clamping Force254 tons
Weight2601 lbs
Working Pressure4641 psi
Length / L45 in
Width / W16 in
Height / H36 in
Download Flyer
