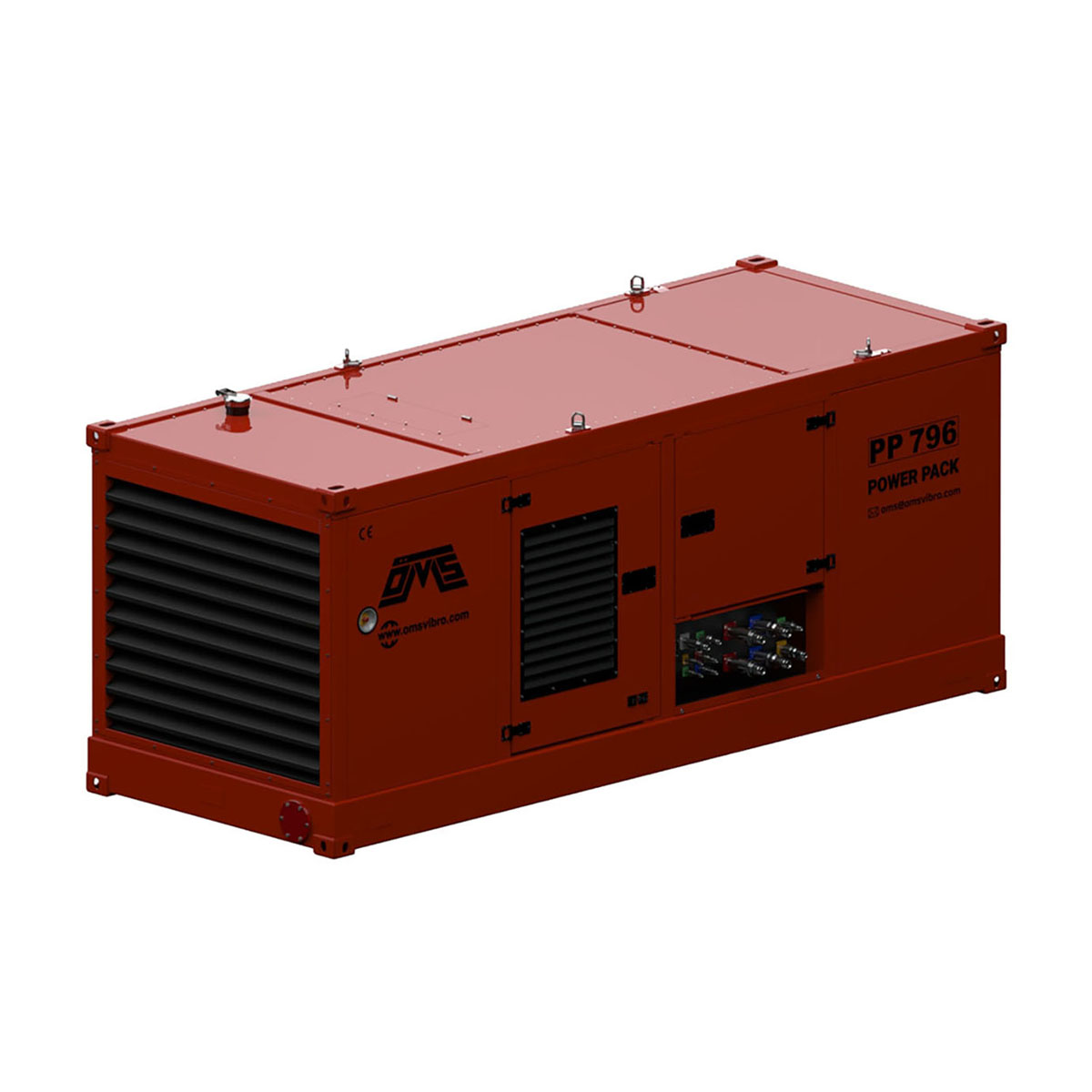

PP 796 Hydraulic Power Unit

OMS Power Units can be controlled via the main control panel and instant information in relation to the hydraulic system, engine and retrospective failure logging can be obtained.

Advantages

  • User Friendly
  • Smart Control System
  • Touch Screen Control Panel
  • Predicts Possible Failures
  • High Performance
  • Enable to Self-Reprogramming
  • Powerful, Reliable and Long life

Technical Specifications

Engine ModelVolvo TWD1683VE (Stage V / Tier 4f)
Power585 kW
Weight9300 kg
Oil Flow Max.930 lpm
Pressure Max.350 bar
Oil Capacity1600 liter
Diesel Tank Capacity900 liter
Width (W)2030 mm
Length (L)5230 mm
Height (H)2210 mm
Engine ModelVolvo TWD1683VE (Stage V / Tier 4f)
Power796 hP
Weight20497 lbs
Oil Flow Max.246 gpm
Pressure Max.5076 psi
Oil Capacity422 gal
Diesel Tank Capacity238 gal
Width (W)80 in
Length (L)206 in
Height (H)87 in
