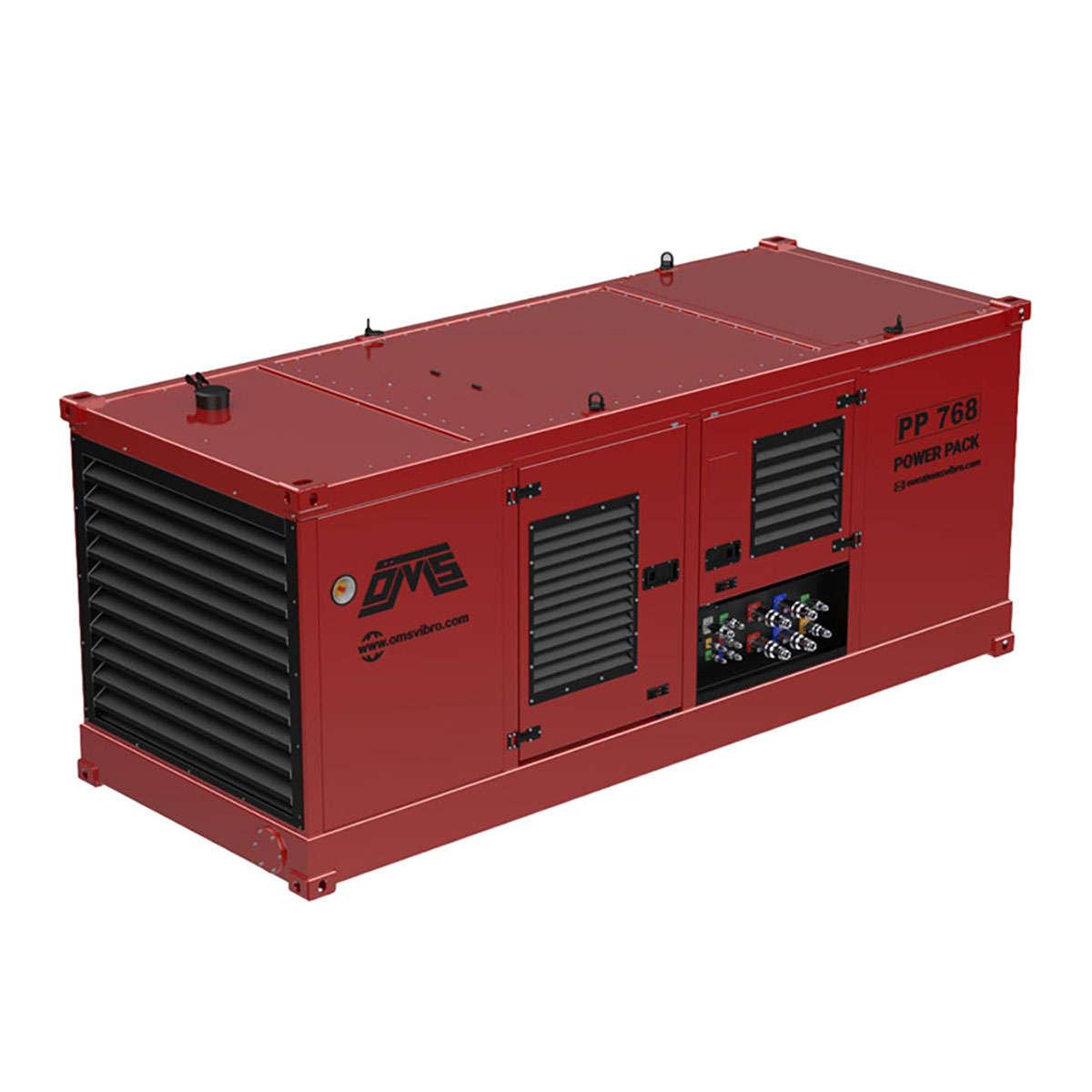

PP 768 Hydraulic Power Unit

OMS Power Units can be controlled via the main control panel and instant information in relation to the hydraulic system, engine and retrospective failure logging can be obtained.

Advantages

  • User Friendly
  • Smart Control System
  • Touch Screen Control Panel
  • Predicts Possible Failures
  • High Performance
  • Enable to Self-Reprogramming
  • Powerful, Reliable and Long life

Technical Specifications

Engine ModelVolvo TAD1643VE (Tier 2)
Power565 kW
Weight8700 kg
Oil Flow Max.930 lpm
Pressure Max.350 bar
Oil Capacity1700 liter
Diesel Tank Capacity900 liter
Width (W)2030 mm
Length (L)5230 mm
Height (H)2210 mm
Engine ModelVolvo TAD1643VE (Tier 2)
Power768 hP
Weight19175 lbs
Oil Flow Max.246 gpm
Pressure Max.5076 psi
Oil Capacity449 gal
Diesel Tank Capacity238 gal
Width (W)80 in
Length (L)206 in
Height (H)87 in
