OVR 40 SG Side Grip Vibro Hammer

Effective solution for pile driving on low headroom and limited access sites.

Advantages

  • Tilting: +/- 30° tilting mechanism makes SG vibro hammer effective for pile driving.
  • Rotating: OMS Side Grip series vibratory hammer has 360° rotating mechanism.
  • Side Clamp: To drive and extract sheet piles, beams and tubular piles where the height matters.
  • Bottom Clamp: Bottom clamp system designed for driving and extracting beams and sheet piles.

Technical Specifications

Eccentric Moment4 kgm
Centrifugal Force276 kN
Power53 kW
Total Weight W/O Clamp2530 kg
Length / L11420 mm
Height / H12124 mm
Width / W11190 mm
Eccentric Moment347 in.lbs
Centrifugal Force31 tons
Power71 hp
Total Weight W/O Clamp5578 lbs
Length / L156 in
Height / H184 in
Width / W147 in
Download Flyer

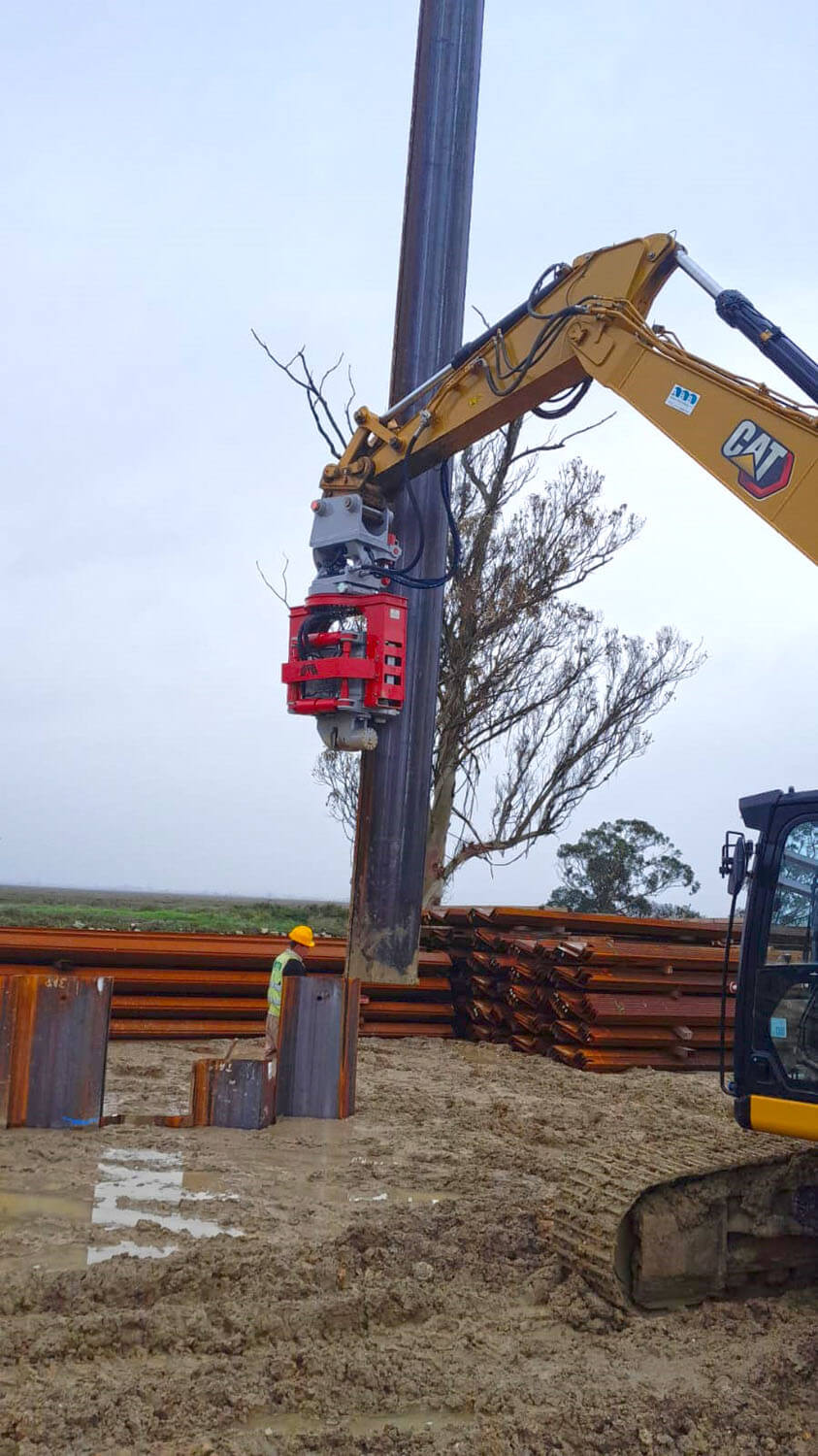

Side Grip Vibro Hammer Applications

HandlingHandlingCarrying Sheet PilesCarrying Sheet PilesPitchingPitchingDriving Extracting Side ClampDriving Extracting Side ClampDriving Extracting Bottom ClampDriving Extracting Bottom Clamp

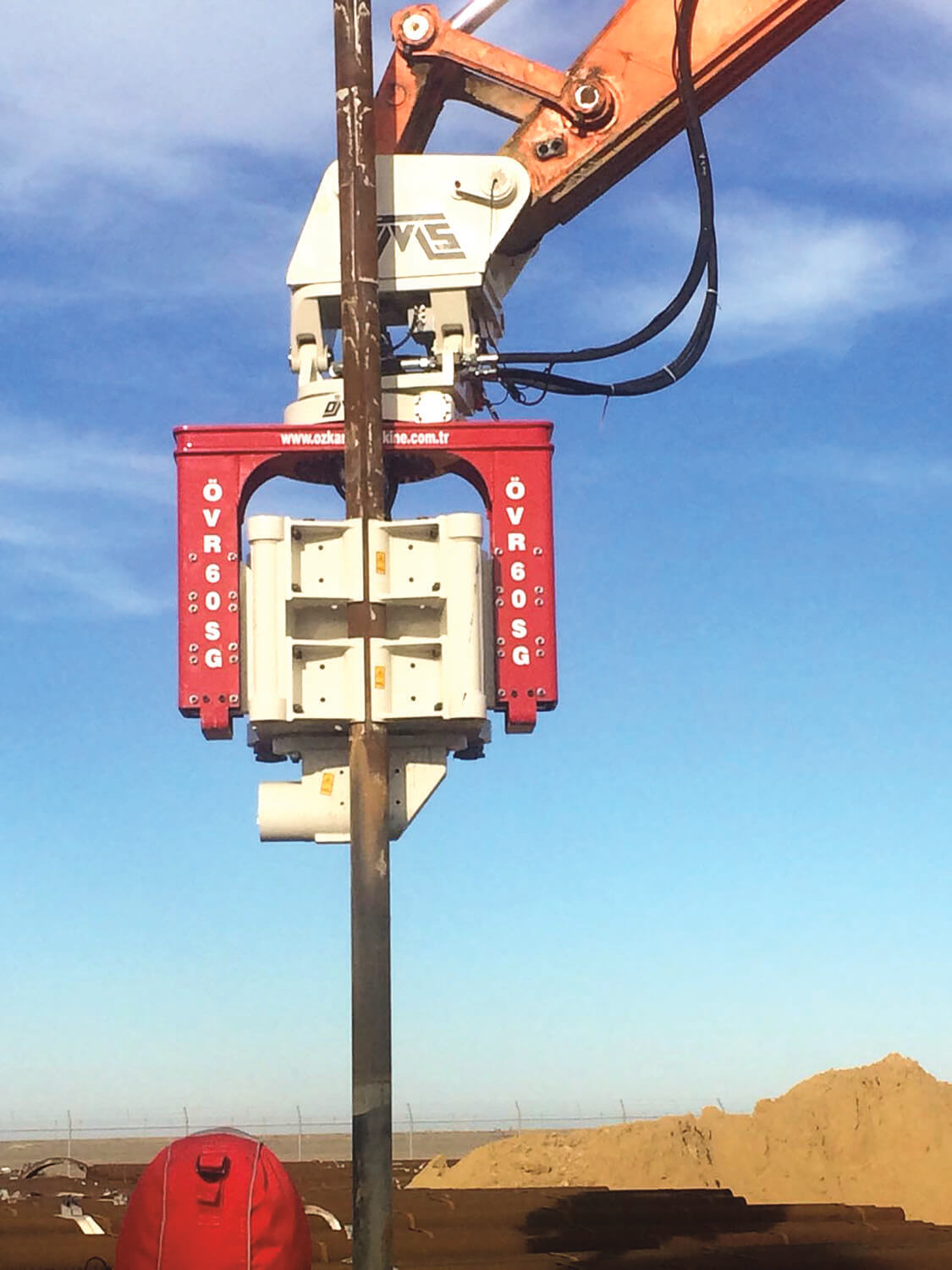

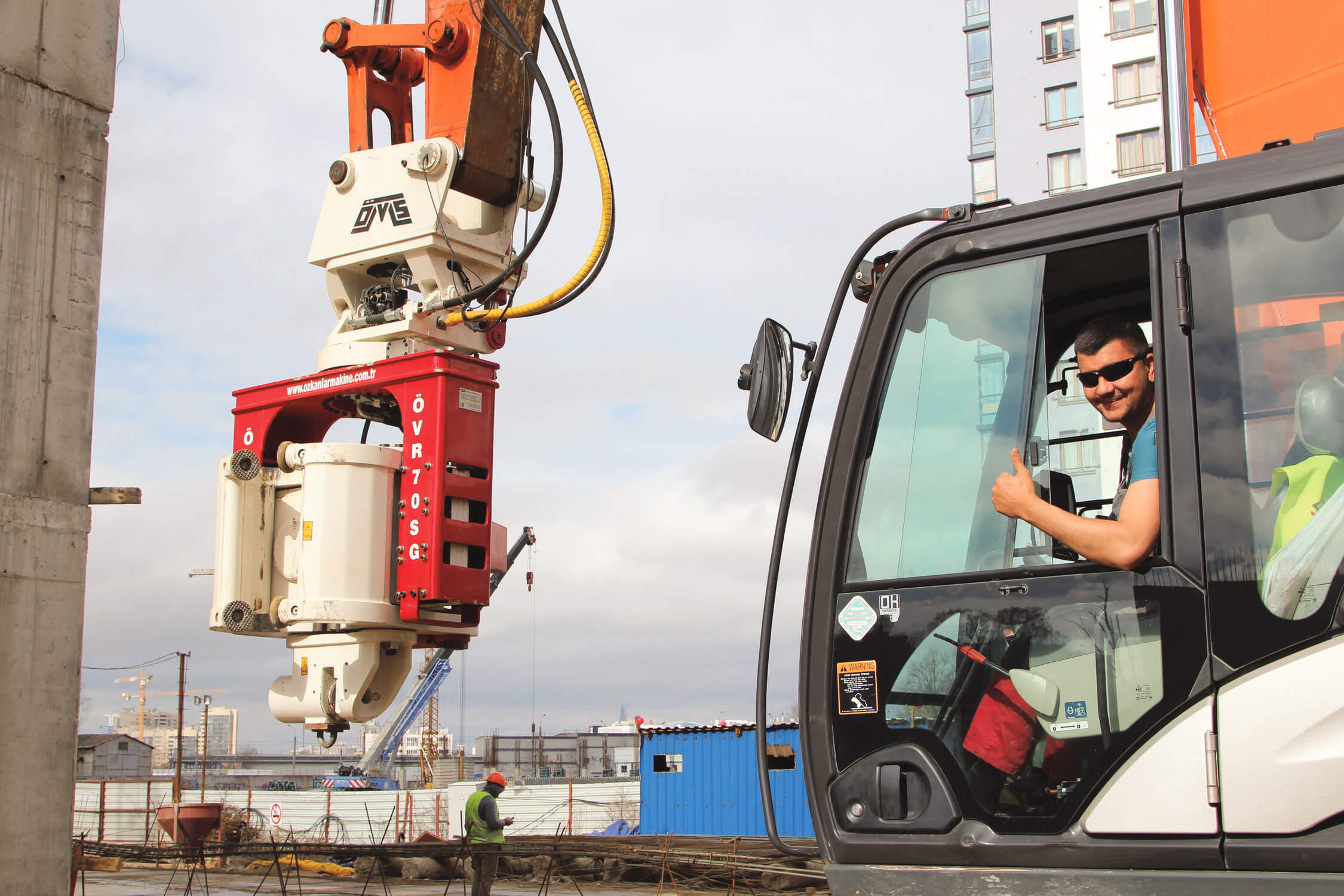

Other Side Grip Vibro Hammers
