Complementary Products
Recommended Hydraulic Clamps
Fast, reliable and easy excavator connection!
Advantages
Fast, reliable and easy excavator connection Ergonomic design providing practical use Full safe movement around link yoke High-performance and driving/extracting power Minimum vibration transmission to the environment Powerful, reliable and long-life
Technical Specifications
| Eccentric Moment | 2.1 kgm |
| Centrifugal Force | 140 kN |
| Power | 33 kW |
| Total Weight W/O Clamp | 384 kg |
| Length / L1 | 755 mm |
| Height / H1 | – |
| Width / W1 | 456 mm |
| Eccentric Moment | 183 in.lbs |
| Centrifugal Force | 16 tons |
| Power | 45 hP |
| Total Weight W/O Clamp | 847 lbs |
| Length / L1 | 30 in |
| Height / H1 | – |
| Width / W1 | 18 in |

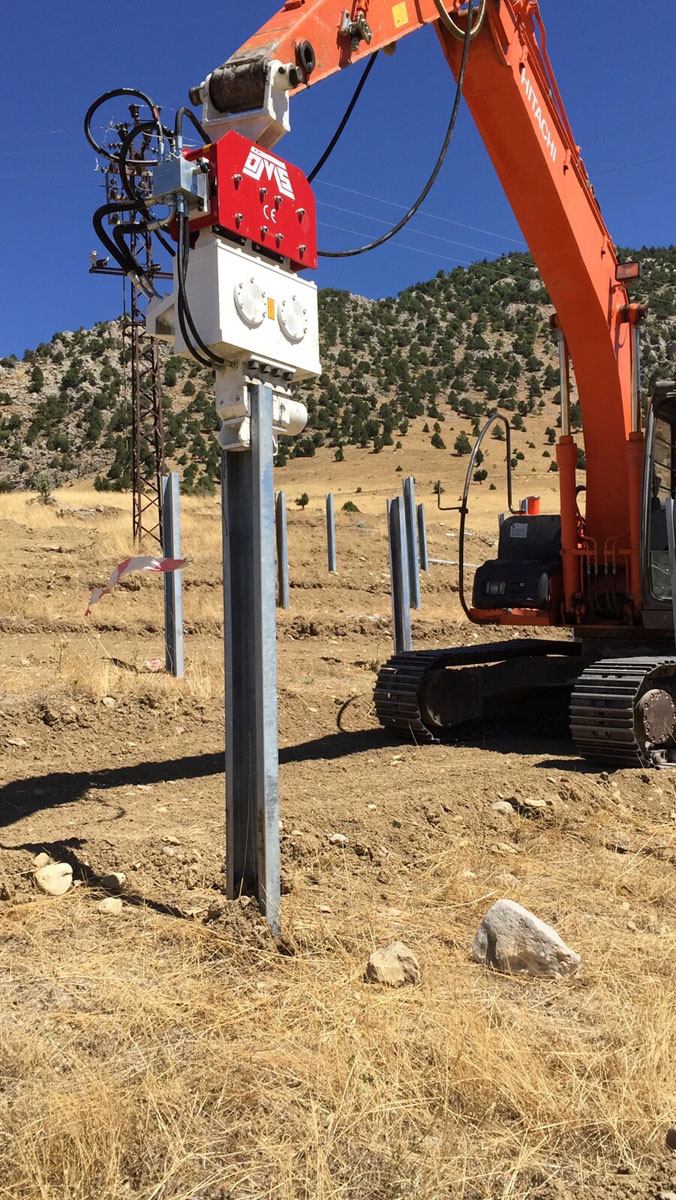

Standard Series Vibro Hammer Applications
Other Standard Series Vibro Hammers
