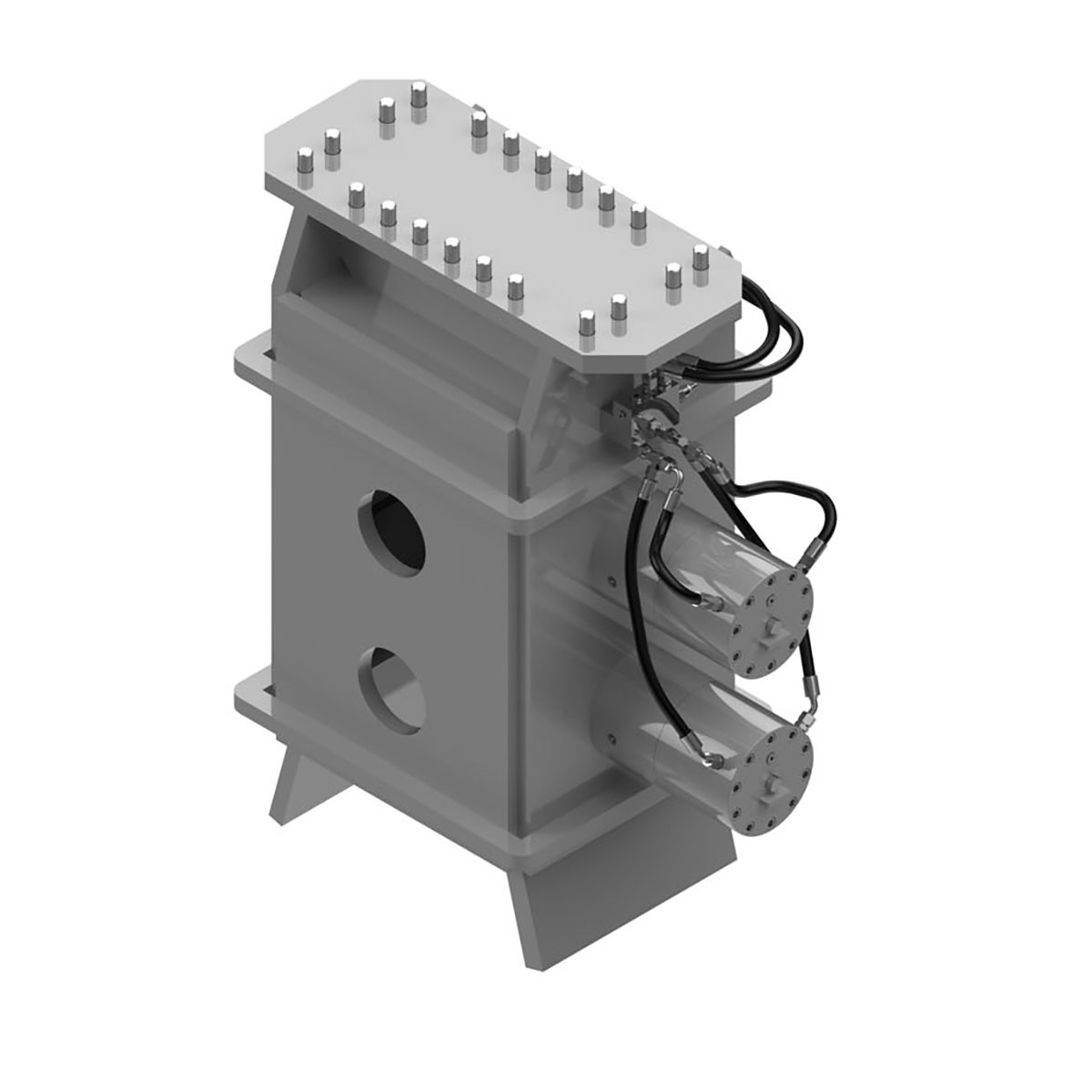

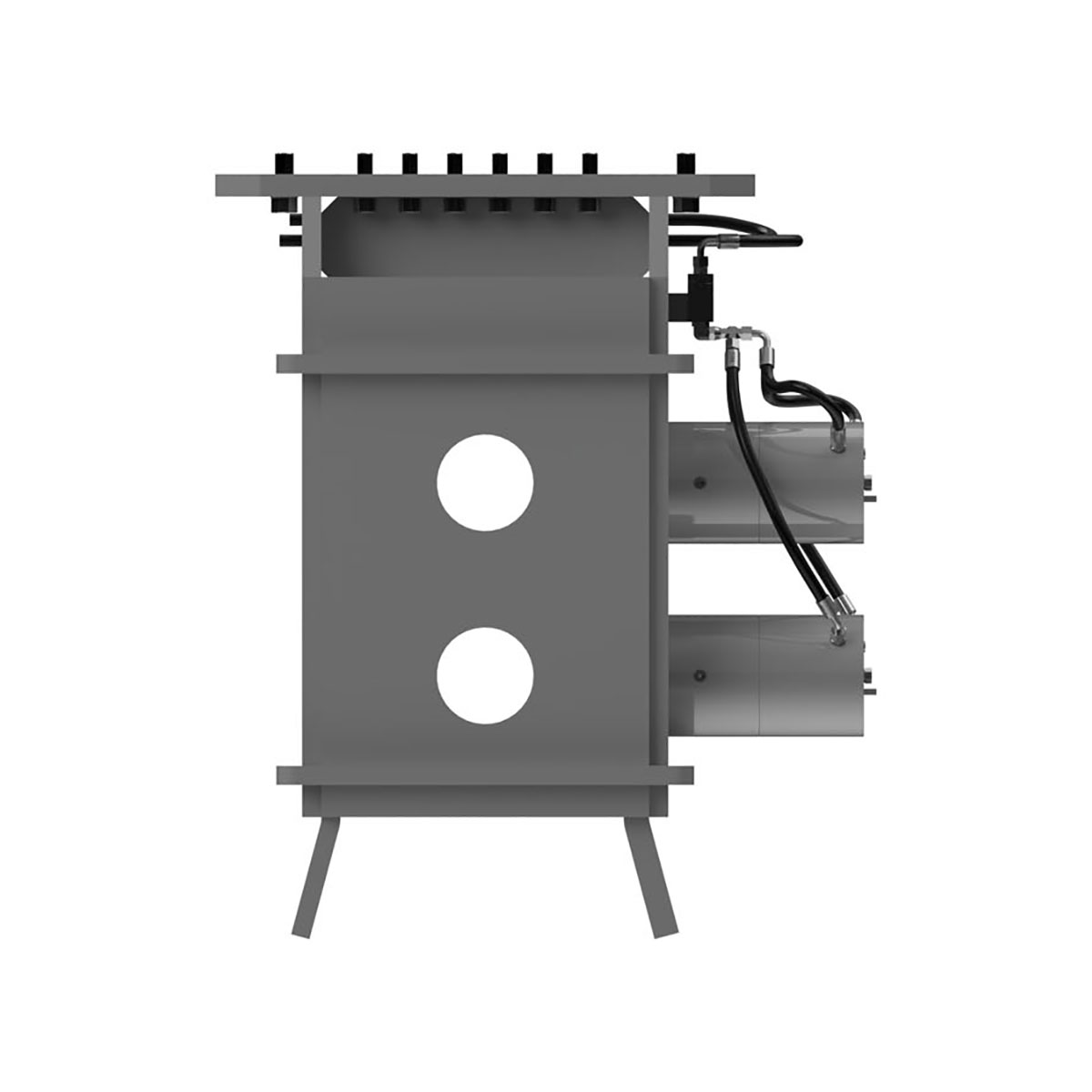

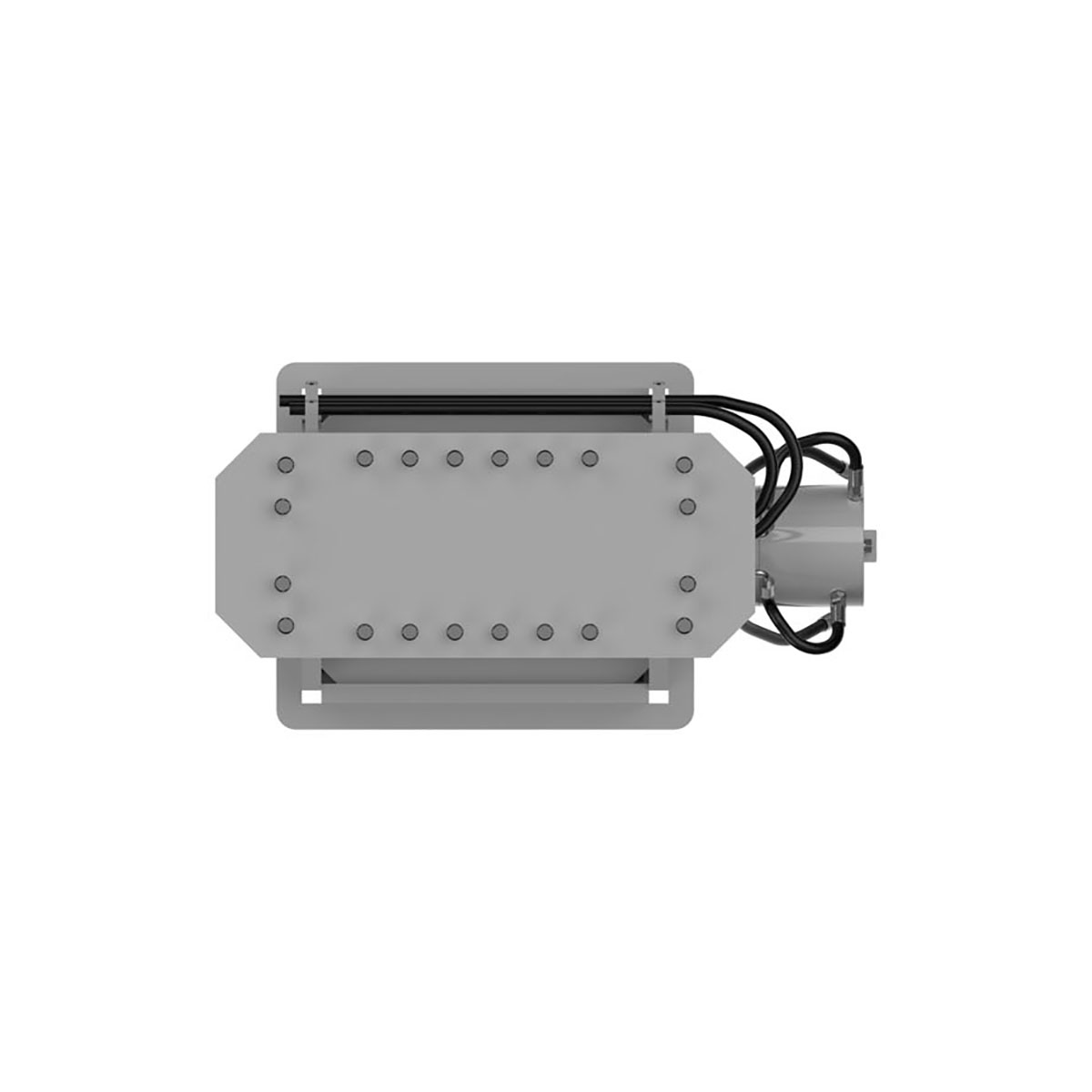

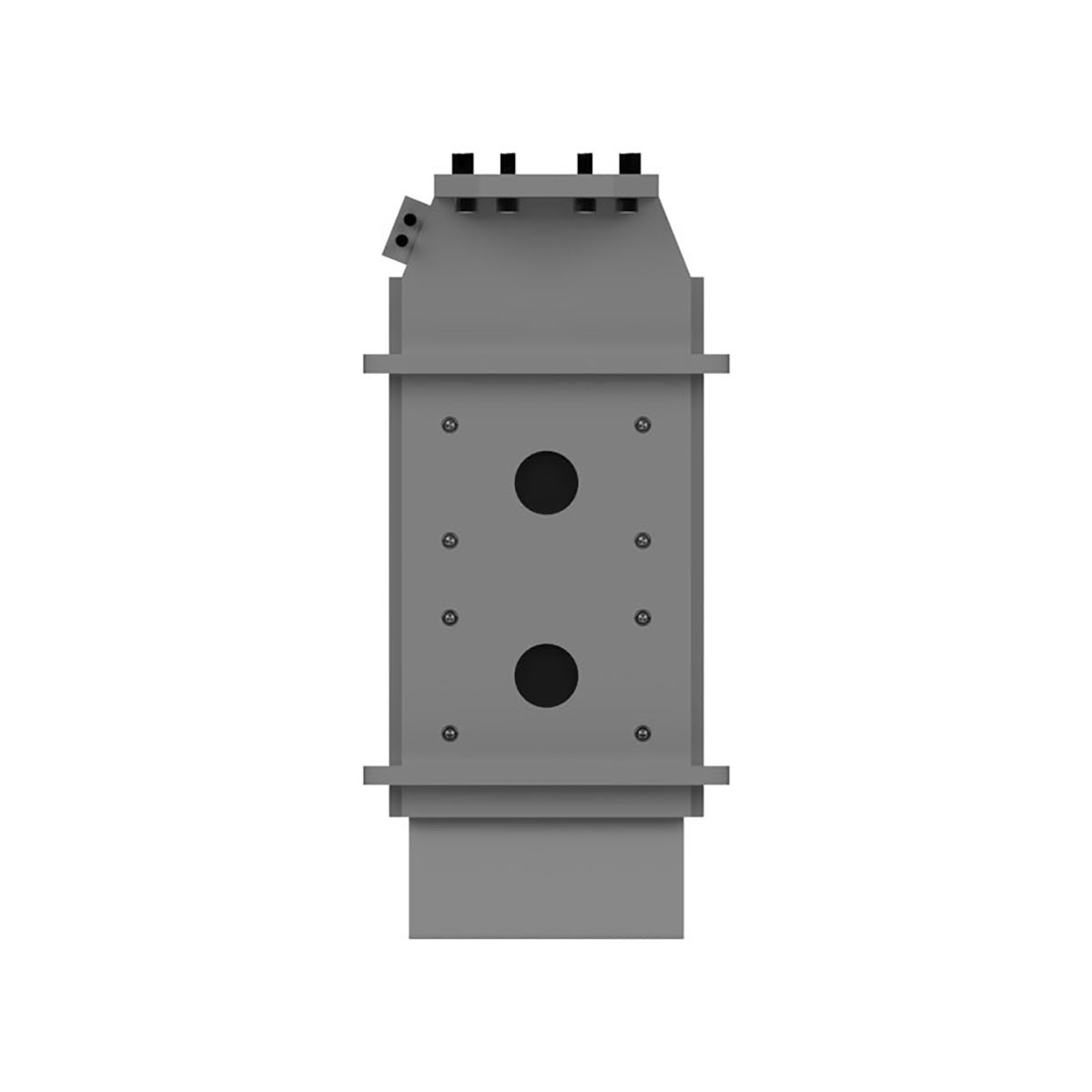

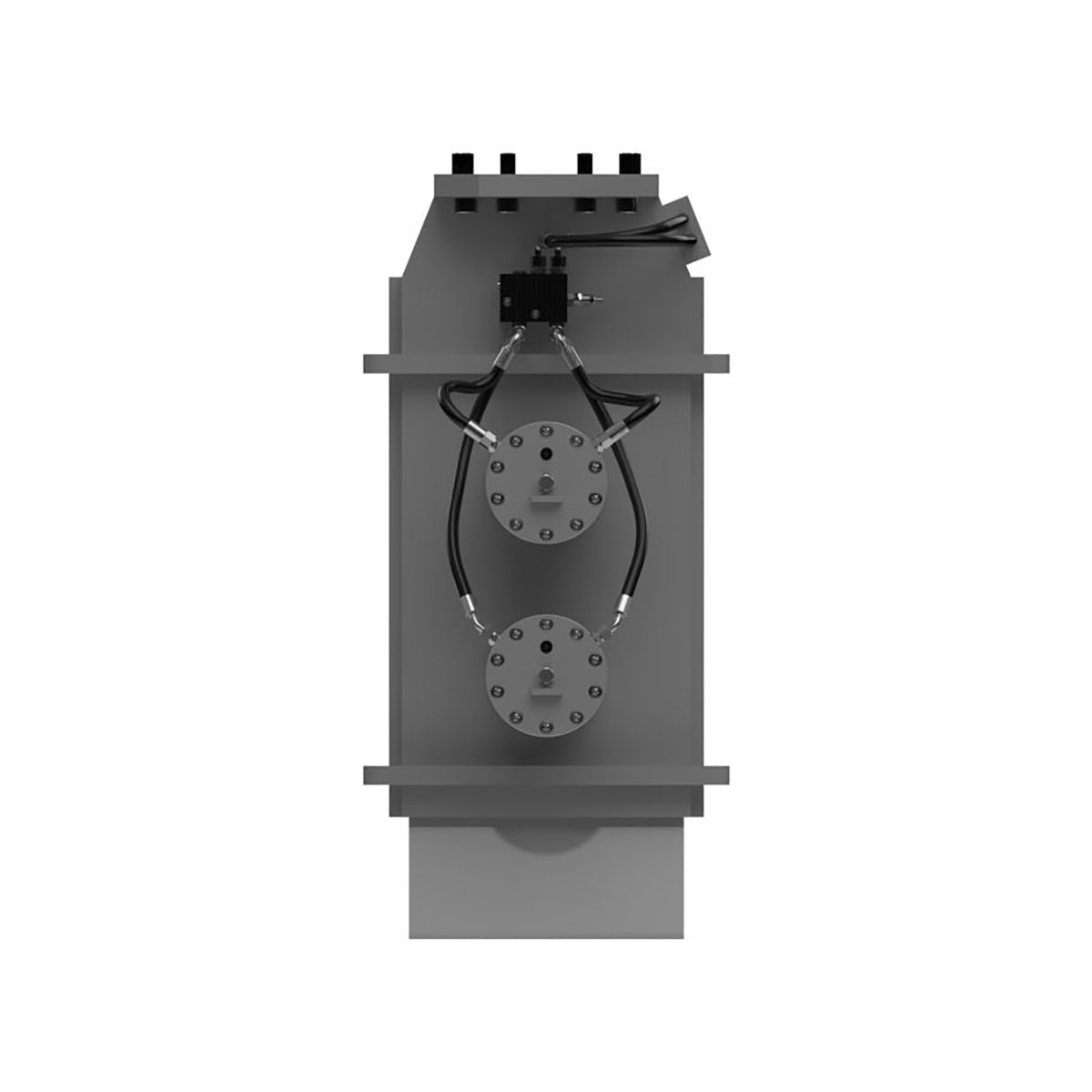

ACN 90 Hydraulic Clamp for Timber Piles

Hydraulic vibratory clamps can be manufactured in accordance with specific customer requirements.

The clamping units are made of special alloy cast steel and feature two gripping jaws—one fixed and the other movable. The hydraulic clamp includes a hydraulic cylinder that closes the movable jaw with a clamping pressure of up to 320 bar. The jaws open and close via the “clamp open/close” control on the remote system. Clamping and releasing operations are completed within a few seconds.

Advantages

  • For Timber Piles: Ideal choice for driving and extracting timber piles.
  • Clamping Pressure: Adjustable gripping pressure.
  • User-Friendly: Easy to install.

Technical Specifications

Clamping Force930 kN
Weight880 kg
Working Pressure350 bar
Length / L1030 mm
Width / W570 mm
Height / H1190 mm
M x N430×430 mm
Clamping Force105 tons
Weight1940 lbs
Working Pressure5076 psi
Length / L41 in
Width / W22 in
Height / H47 in
M x N17×17 in
