NORMAL FREQUENCY (SVR – NF Series)

Recommended for projects requiring high driving or extraction force.

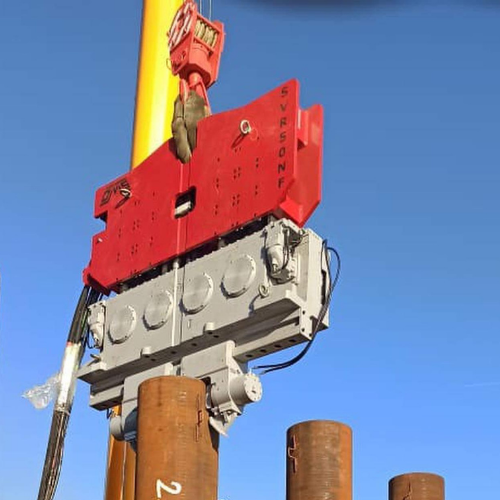

Crane-Suspended Vibratory Hammers SVR – NF Series are recommended for projects requiring high driving or extraction force. SVR type pile driving machines are operated with OMS Power Pack equipped with remote control and touch screen control panels. These controllers are used to adjust the vibratory device to suit different soil conditions.

  • Various clamp types suitable for all pile profiles,
  • High eccentric moment and vibration amplitude,
  • Desired power settings and operation performance can be monitored by the control system,
  • Powerful, reliable and long-lasting.
HOW DOES A VIBRATORY HAMMER WORK?

Double Clamp Front View

Side View

Double Clamp Isometric View

Technical Specifications25 NF30 NF50 NF80 NF82 NF120 NF200 NF
Eccentric Moment (kgm)2532.650.280.382.3120203.2
Centrifugal Force (kN)795103614091988231028464380
Frequency (rpm)1700170016001500160014801400
Oil Flow (lpm)36642160589992511221792
Power (kW)1952433525245406551045
Amplitude (mm)22242427.527.52619
Pulling Force (kN) Max.47059070694194110591880
Weight and Dimensions
Dyn. Weight W/O Clamp (kg)22702750413058506000914521700
Total Weight W/O Clamp (kg)310044856150910089501217226100
Length / L1 (mm)1998259926503315274033153660
Length / L2 (mm)1796242024603070250030703350
Length / L3 (mm)194228122848341029503360-
Height / H1 (mm)1705203421172200267526823620
Height / H2 (mm)237627043002329037653766-
Width / W1 (mm)371364384451408455493
Width / W2 (mm)5505755907617007282070
Throat Width (mm)366350360461360480800
Clamps for Sheet PilesSCN 120SCN 120SCN 165SCN 350SCN 200SCN 350-
Clamping Force (kN)121612161700356022623560-
Weight (kg)851851866256011952560-
Clamps for CasingKCN 60x2KCN 60x2KCN 90x2KCN 185x2KCN 185x2KCN 185x2KCN185x4
Diameter (min.-max.) / D (mm)360 - 1030360 - 1900520 - 1900600 - 2100600 - 1650600 - 20501000 - 3000
Clamping Force (kN)643 x 2643 x 2890 x 21858 x 21858 x 21858 x 21858 x 4
Weight (kg)307 x 2307 x 2538 x 21164 x 21164 x 21164 x 21164 x 4
Recommended Power PackPP 320PP 380PP 536PP 768PP 768PP 1072PP 1536
Output (kW)235285394565565394 x 2565 x 2
Technical Specifications25 NF30 NF50 NF80 NF82 NF120 NF200 NF
Eccentric Moment (in.lbs)217028304357697071431041617637
Centrifugal Force (tons)89116159223260320493
Frequency (rpm)1700170016001500160014801400
Oil Flow (gpm)97111160237244297474
Power (hP)2623264727037248781402
Amplitude (in)0.90.90.91.081.081.020.75
Pulling Force Max. (tons)536679106106119211
Weight and Dimensions
Dyn. Weight W/O Clamp (lbs)50046063910512897132282016247840
Total Weight W/O Clamp (lbs)683498881355920062197312683557541
Length / L1 (in)79102104131108131144
Length / L2 (in)71959712198121132
Length / L3 (in)77111112134116132-
Height / H1 (in)67808487105106143
Height / H2 (in)94106118130148148-
Width / W1 (in)15141518161819
Width / W2 (in)22232330282982
Throat Width (in)14.413.814.218.114.218.931.5
Clamps for Sheet PilesSCN 120SCN 120SCN 165SCN 350SCN 200SCN 350-
Clamping Force (tons)137137191400254400-
Weight (lbs)187618761909564426345644-
Clamps for CasingKCN 60x2KCN 60x2KCN 90x2KCN 185x2KCN 185x2KCN 185x2KCN 185x4
Diameter (min.-max.) / D (in)14 - 4114 - 7521 - 7524 - 8324 - 8324 - 8139 - 118
Clamping Force (tons)73x273x2100x2209x2209x2209x2418x2
Weight (lbs)677x2677x21186x22567x22567x22567x25133x2
Recommended Power PackPP 320PP 380PP 536PP 768PP 768PP 1072PP 1536
Output (hP)320380536768768536 x 2768 x 2

Vibratory Hammer Technical Specifications – SVR NF

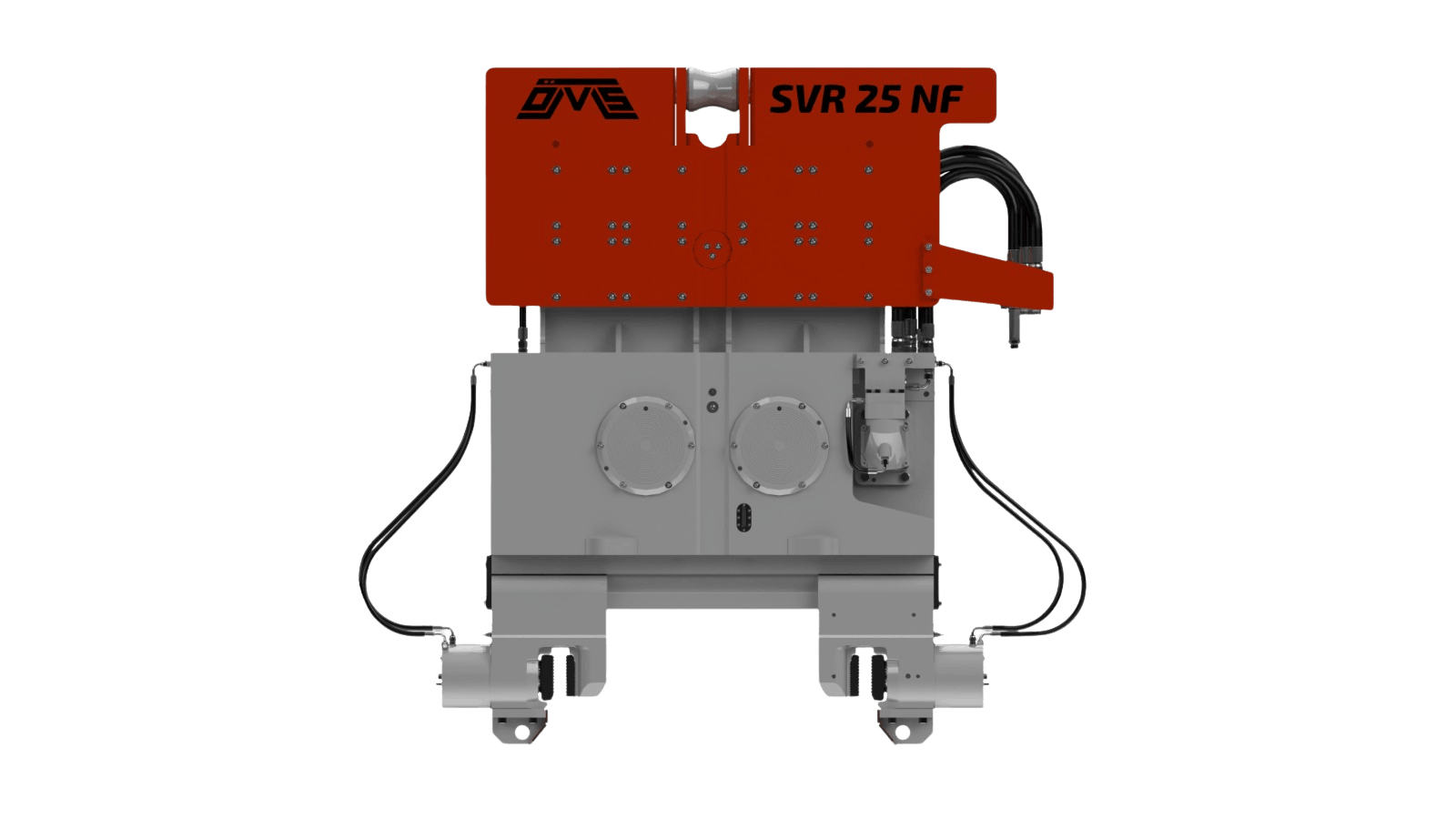

SVR 25 NF(NORMAL FREQUENCY)

Technical SpecificationsSVR 25 NF
Eccentric Moment (kgm)25
Centrifugal Force (kN)795
SVR 25 NF - Technical Specifications
Technical SpecificationsSVR 25 NF
Eccentric Moment (in.lbs)2170
Centrifugal Force (ton)89
SVR 25 NF - Technical Specifications

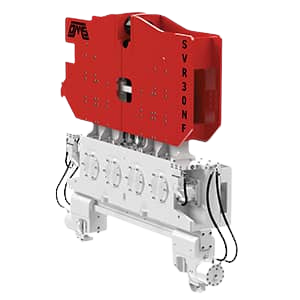

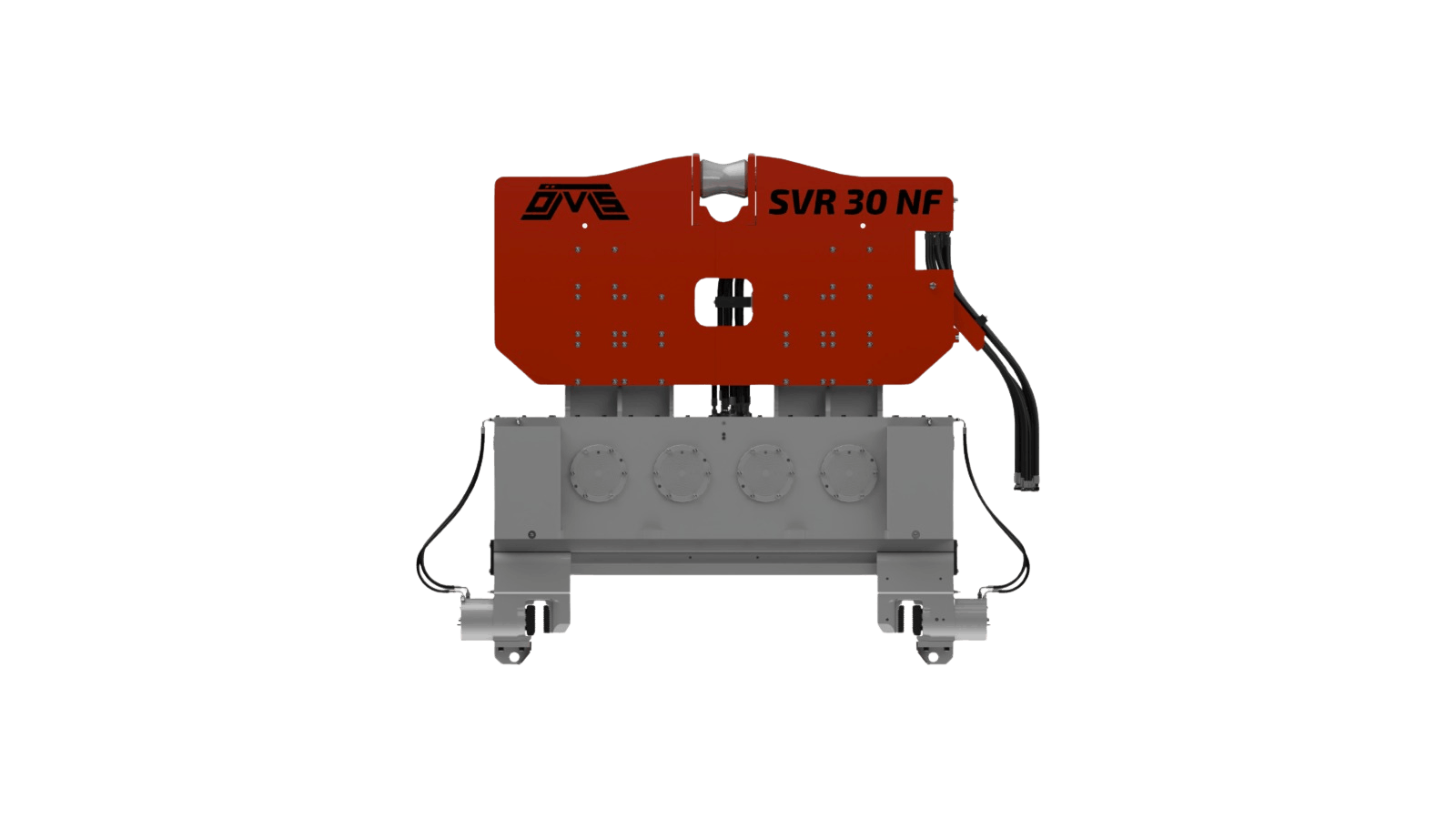

SVR 30 NF(NORMAL FREQUENCY)

Technical SpecificationsSVR 30 NF
Eccentric Moment (kgm)32.6
Centrifugal Force (kN)1036
SVR 30 NF - Technical Specifications
Technical SpecificationsSVR 30 NF
Eccentric Moment (in.lbs)2830
Centrifugal Force (ton)116
SVR 30 NF - Technical Specifications

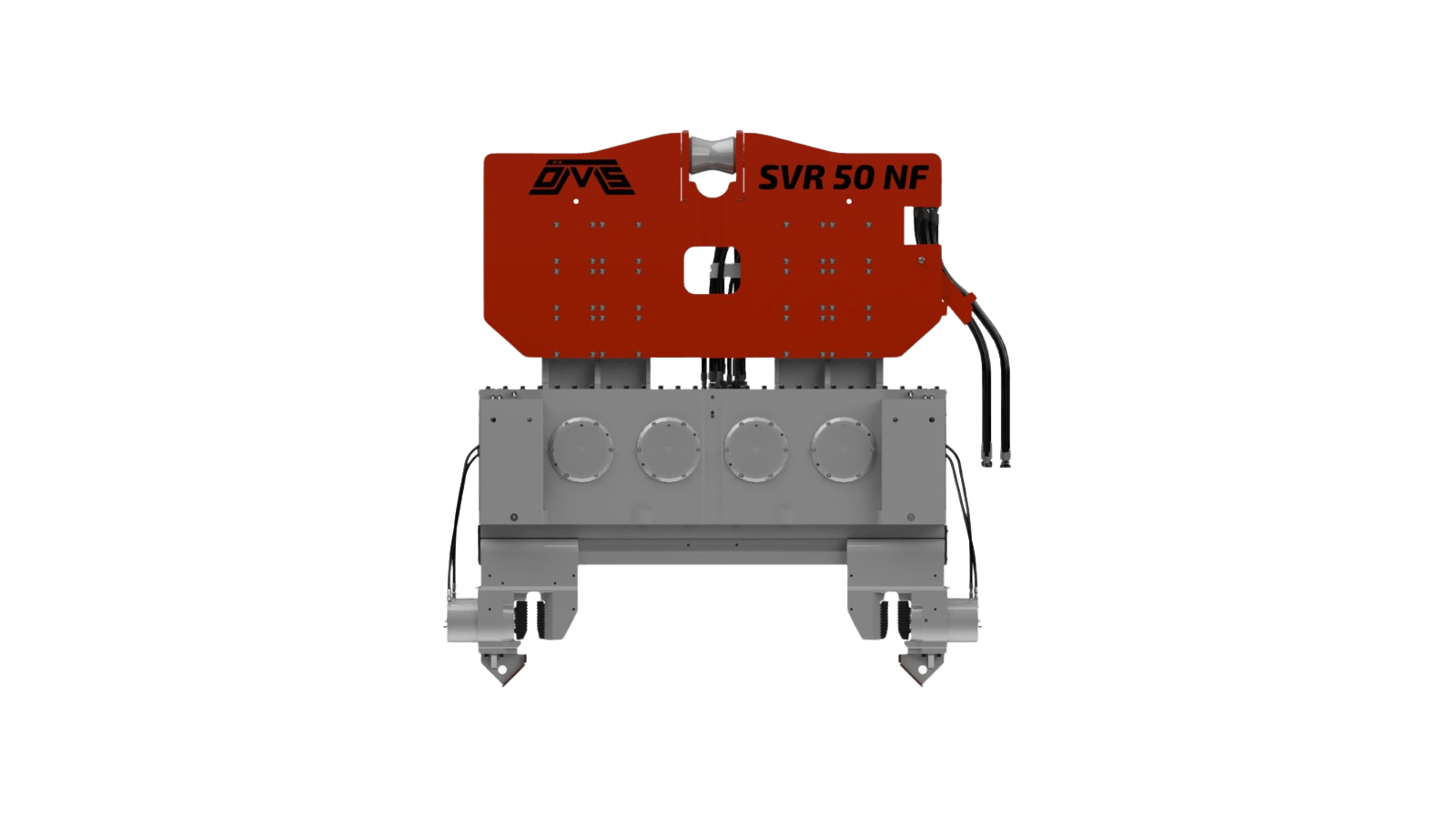

SVR 50 NF(NORMAL FREQUENCY)

Technical SpecificationsSVR 50 NF
Eccentric Moment (kgm)50.2
Centrifugal Force (kN)1409
SVR 50 NF - Technical Specifications
Technical SpecificationsSVR 50 NF
Eccentric Moment (in.lbs)4357
Centrifugal Force (ton)159
SVR 50 NF - Technical Specifications

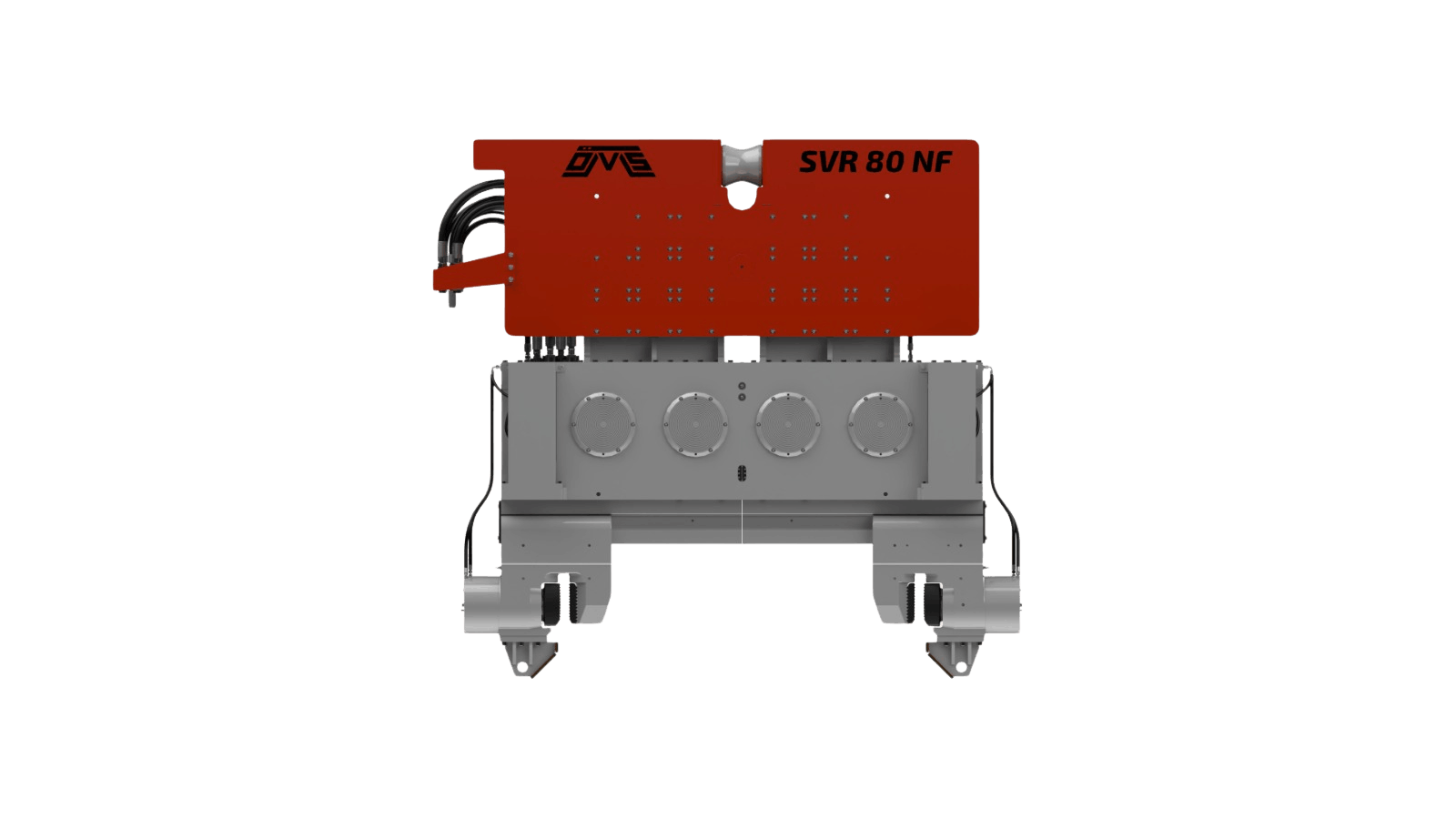

SVR 80 NF(NORMAL FREQUENCY)

Technical SpecificationsSVR 80 NF
Eccentric Moment (kgm)80.3
Centrifugal Force (kN)2253
SVR 80 NF - Technical Specifications
Technical SpecificationsSVR 80 NF
Eccentric Moment (in.lbs)6970
Centrifugal Force (ton)253
SVR 80 NF - Technical Specifications

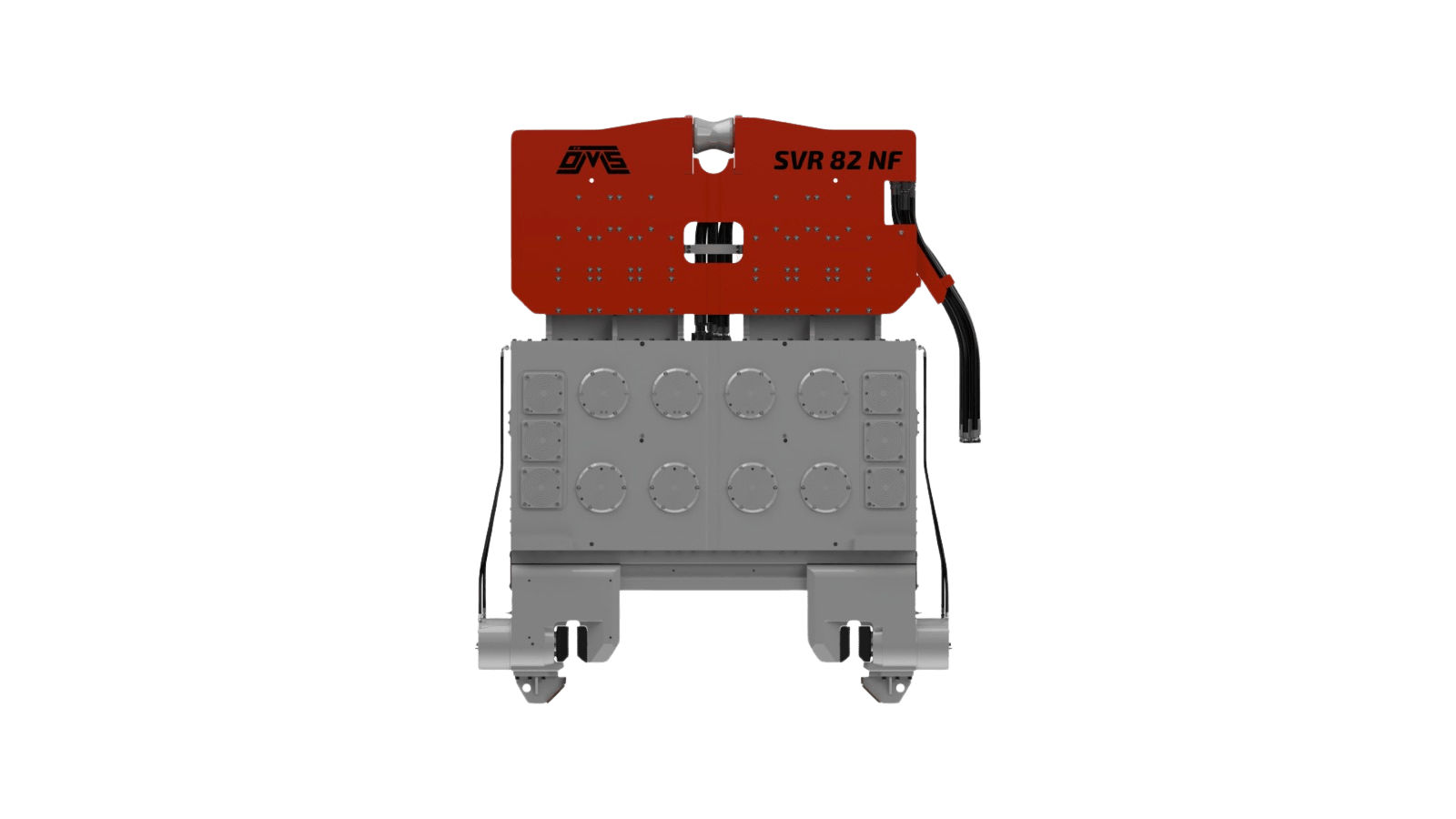

SVR 82 NF(NORMAL FREQUENCY)

Technical SpecificationsSVR 82 NF
Eccentric Moment (kgm)82.3
Centrifugal Force (kN)2310
SVR 82 NF - Technical Specifications
Technical SpecificationsSVR 82 NF
Eccentric Moment (in.lbs)7143
Centrifugal Force (ton)260
SVR 82 NF - Technical Specifications

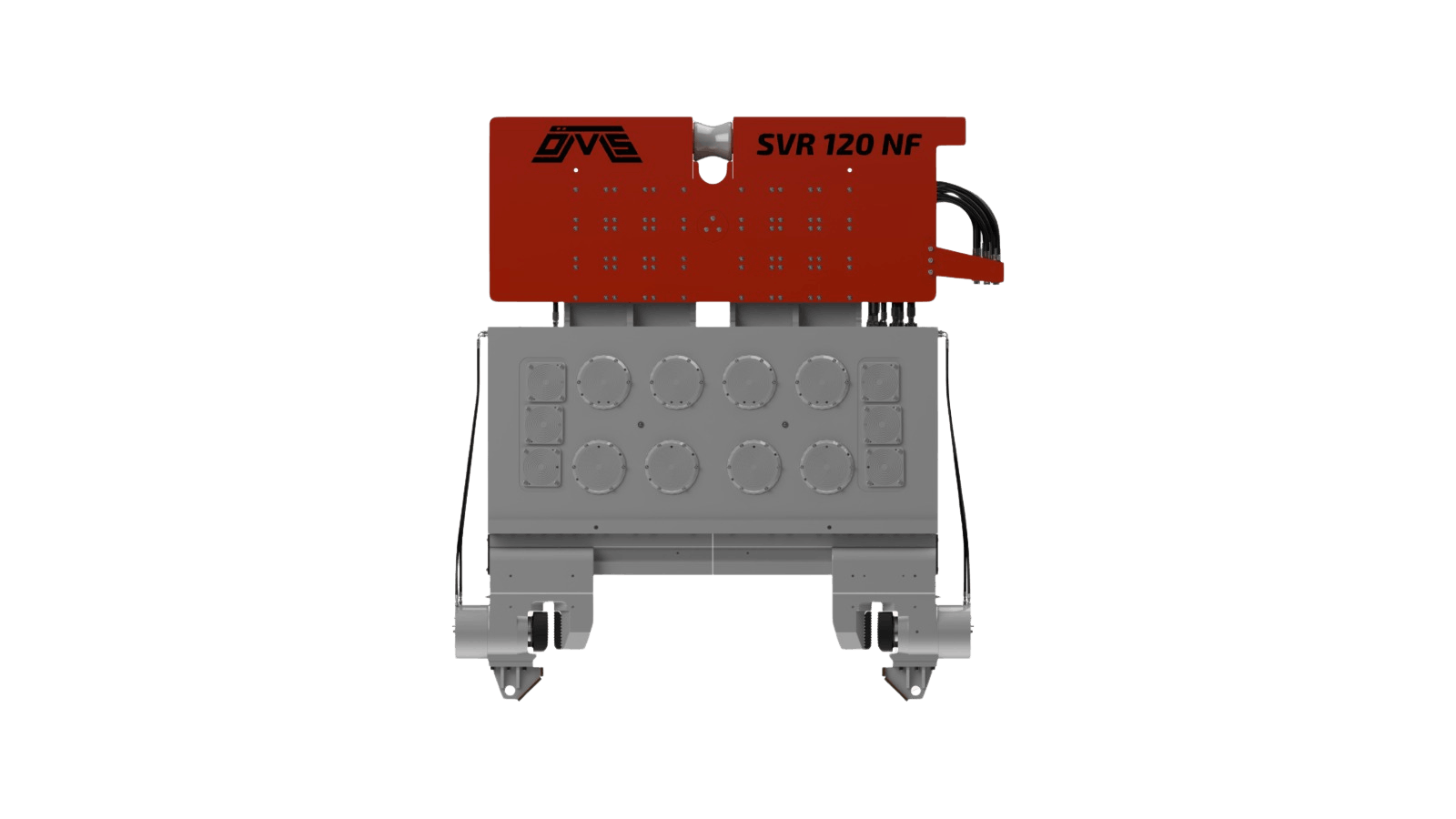

SVR 120 NF(NORMAL FREQUENCY)

Technical SpecificationsSVR 120 NF
Eccentric Moment (kgm)120
Centrifugal Force (kN)2846
SVR 120 NF - Technical Specifications
Technical SpecificationsSVR 120 NF
Eccentric Moment (in.lbs)10416
Centrifugal Force (ton)320
SVR 120 NF - Technical Specifications

SVR 200 NF(NORMAL FREQUENCY)

Pile Driving Equipment
Technical SpecificationsSVR 200 NF
Eccentric Moment (kgm)203.2
Centrifugal Force (kN)4380
SVR 200 NF - Technical Specifications
Technical SpecificationsSVR 200 NF
Eccentric Moment (in.lbs)17637
Centrifugal Force (ton)493
SVR 200 NF - Technical Specifications

NORMAL FREQUENCY (SVR – VM)

VM Serisi - Technical Specifications
