STANDARD SERIES (OVR – S)

The OVR series vibratory pile driving machines are designed to operate using the hydraulic system of the excavator they are mounted on. The vibratory hammer can be installed quickly and easily without requiring any modifications to the excavator and is directly controlled by the excavator operator.

  • Environmentally friendly technology
  • Adjustable eccentric moment
  • Resonance-free start and stop
  • Application of optimal force according to soil conditions
  • Powerful, reliable, and long-lasting

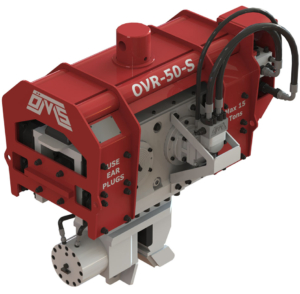

Isometric Left View

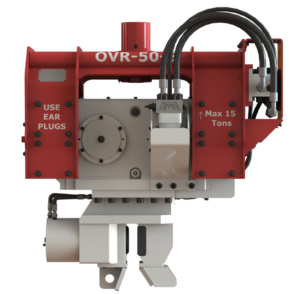

Front View

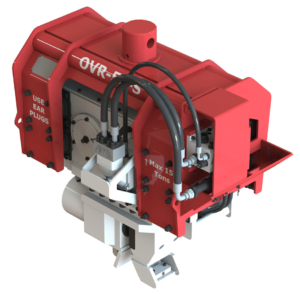

Isometric Right View

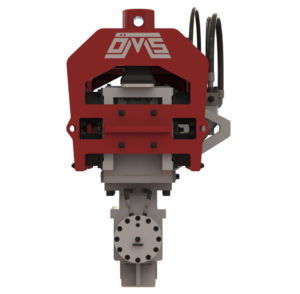

Side View

Technical Specifications of Vibratory Hammer – OVR S (STANDARD SERIES)

Technical Specifications20 S40 S50 S60 S70 S80 S120 S
Eccentric Moment (kgm)2.145.26.37.3912.3
Centrifugal Force (kN)140276354434502615838
Frequency (rpm)2500250025002500250025002500
Oil Flow (lpm)62100150201233275313
Power (kW)335380107124147167
Amplitude (mm)16151416161419
Pulling Force (kN) Max.5988147147147235235
Weight and Dimensions
Dyn. Weight W/O Clamp (kg)27053474977192912551292
Total Weight W/O Clamp (kg)38478610801096125317401798
Length / L1 (mm)755120012821282134314731506
Height / H1 (mm)---1581163917161850
Height / H2 (mm)8917628358358939701030
Height / H3 (mm)12261203134413441402/147615531647
Width / W1 (mm)456735778778804890842
Technical Specifications20 S40 S50 S60 S70 S80 S120 S
Eccentric Moment (lbs.in)1823474515476347811068
Centrifugal Force (tons)16314049566994
Frequency (rpm)2500250025002500250025002500
Oil Flow (gpm)16264053627383
Power (hP)4471107143166197224
Amplitude (in)0.60.60.60.60.60.60.7
Pulling Force (tons) Max.7101717172626
Weight and Dimensions
Dyn. Weight W/O Clamp (lbs)595117716511700204827672848
Total Weight W/O Clamp (lbs)847173323812416276238363964
Length / L1 (in)30475050535859
Height / H1 (in)---62656873
Height / H2 (in)35303333353841
Height / H3 (in)4847535355/586165
Width / W1 (in)18293131323533

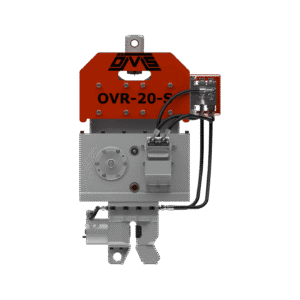

OVR 20 S (STANDARD)

OVR 20 S
Technical SpecificationsOVR 20 S
Eccentric Moment (kgm)2.1
Centrifugal Force (kN)140
Technical SpecificationsOVR 20 S
Eccentric Moment (in·lbs)182
Centrifugal Force (ton)16

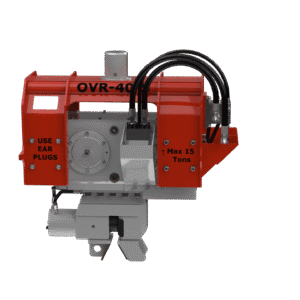

OVR 40 S (STANDARD)

OVR 40 S
Technical SpecificationsOVR 40 S
Eccentric Moment (kgm)4
Centrifugal Force (kN)276
Technical SpecificationsOVR 40 S
Eccentric Moment (in·lbs)347
Centrifugal Force (ton)31

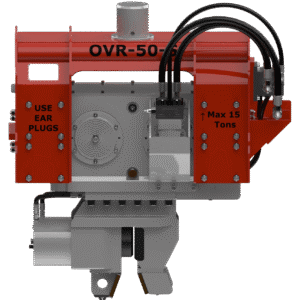

OVR 50 S (STANDARD)

OVR 50 S
Technical SpecificationsOVR 50 S
Eccentric Moment (kgm)5.2
Centrifugal Force (kN)354
Technical SpecificationsOVR 50 S
Eccentric Moment (in.lbs)451
Centrifugal Force (ton)40

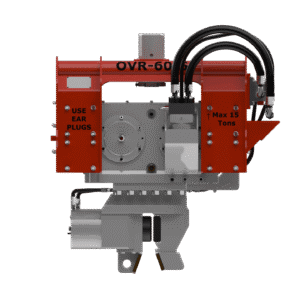

OVR 60 S (STANDARD)

OVR 60 S
Technical SpecificationsOVR 60 S
Eccentric Moment (kgm)6.3
Centrifugal Force (kN)434
Technical SpecificationsOVR 60 S
Eccentric Moment (in.lbs)547
Centrifugal Force (ton)49

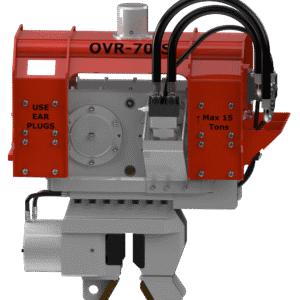

OVR 70 S (STANDARD)

OVR 70 S
Technical SpecificationsOVR 70 S
Eccentric Moment (kgm)7.3
Centrifugal Force (kN)502
Technical SpecificationsOVR 70 S
Eccentric Moment (in.lbs)634
Centrifugal Force (ton)56

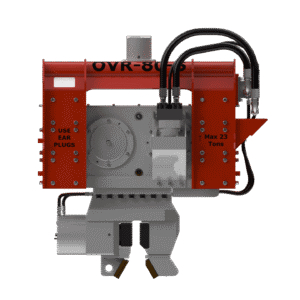

OVR 80 S (STANDARD)

OVR 80 S
Technical SpecificationsOVR 80 S
Eccentric Moment (kgm)9
Centrifugal Force (kN)615
Technical SpecificationsOVR 80 S
Eccentric Moment (in.lbs)781
Centrifugal Force (ton)69

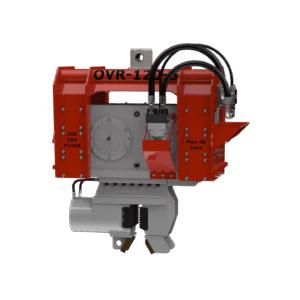

OVR 120 S (STANDARD)

OVR 120 S
Technical SpecificationsOVR 120 S
Eccentric Moment (kgm)12.3
Centrifugal Force (kN)838
Technical SpecificationsOVR 120 S
Eccentric Moment (in.lbs)1068
Centrifugal Force (ton)94
