SVR 25 NF Technical Specifications
Crane Suspended Vibratory Hammer
- High performance,
- Execution of desired power settings and job tracking by the control system,
- Various clamp types suitable for all pile profiles,
- Innovative structure that adapts to rapidly evolving technology,
- Time and cost savings,
- 24/7 technical service and spare parts support,
- Powerful, reliable and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 25 |
| Centrifugal Force (kN) | 795 |
| Power (kW) | 195 |
| Weight and Dimensions | |
| Total Weight Excl. Clamp (kg) | 3100 |
| Length / L1 (mm) | 1998 |
| Height / H1 (mm) | 1705 |
| Width / W1 (mm) | 371 |
| Eccentric Moment (in.lbs) | 2170 |
| Centrifugal Force (ton) | 89 |
| Power (hP) | 262 |
| Weight and Dimensions | |
| Total Weight Excl. Clamp (lbs) | 6834 |
| Length / L1 (inch) | 79 |
| Height / H1 (inch) | 67 |
| Width / W1 (inch) | 15 |
Recommended Clamps and Power Pack

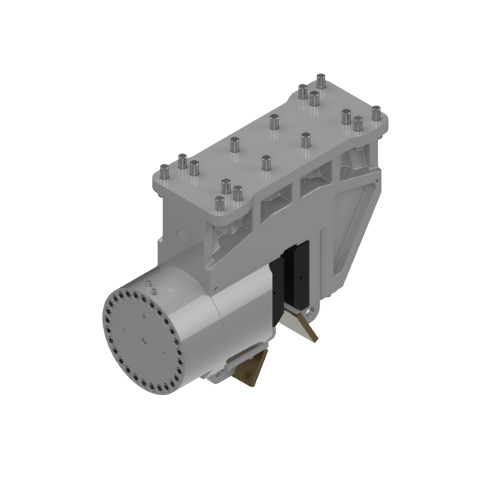

Clamp for Sheets and Piles

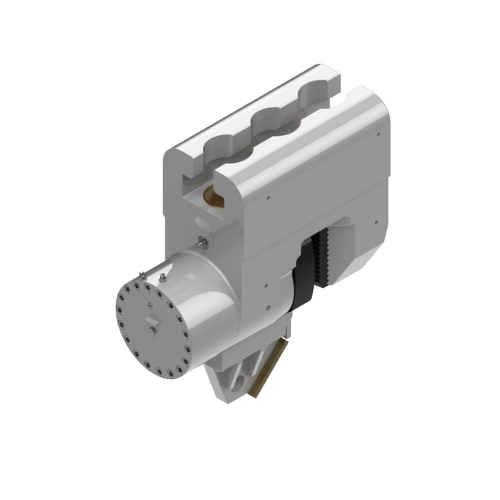

Clamp Type for Tube Piles

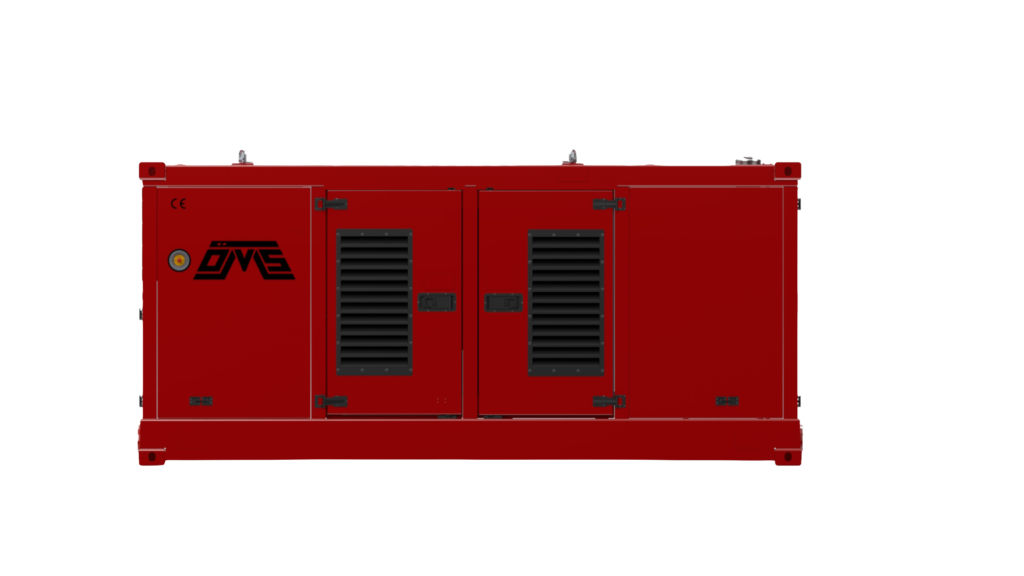

Recommended Power Package
