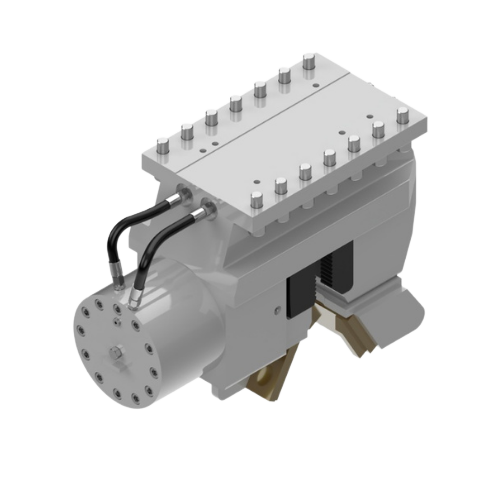

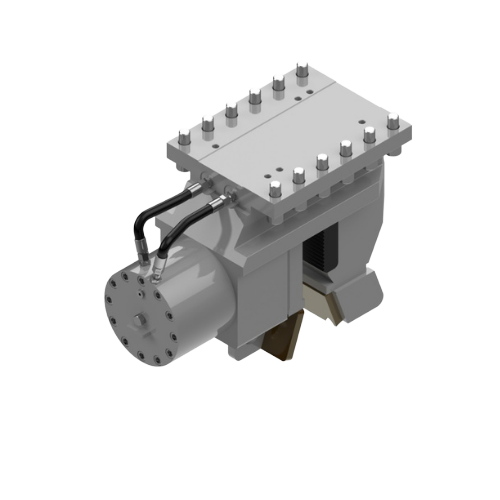

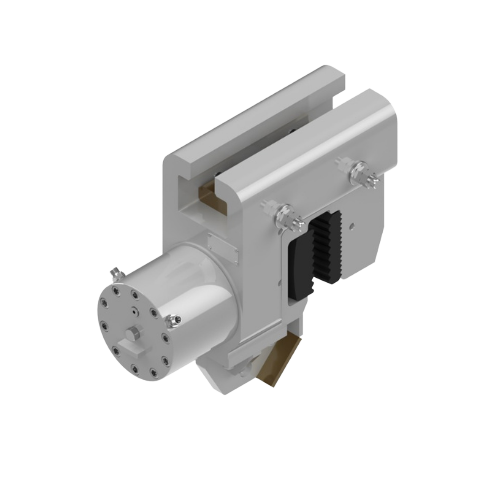

OVR 70 S
Technical Specifications of Mini Excavator Pile Driver
OVR 70 S
Fast, reliable, and easy excavator connection,
Ergonomic design providing practical use,
Fully safe movement around the connection arm,
High performance and driving power acquisition,
Minimum vibration transmission to the environment,
Pipe piling feature with a sliding well-type clamp system,
Powerful, reliable, and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 7.3 |
| Centrifugal Force (kN) Max. | 607 |
| Maximum Power (kW) | 137 |
| Weights and Dimensions | |
| Total Weight (Excluding Clamp) (kg) | 1253 |

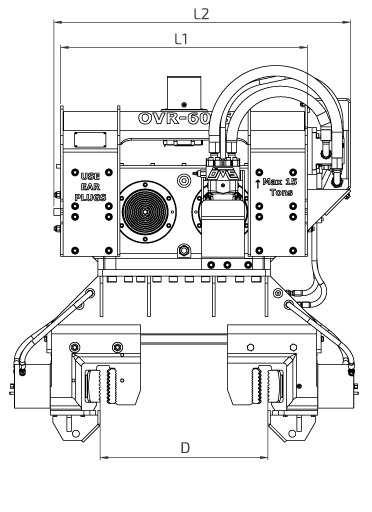

| Length / L2 (mm) | 1343 |
| Height / H1 (mm) | 1639 |
| Width / W1 (mm) | 804 |
| Eccentric Moment (in-lbs) | 634 |
| Centrifugal Force (ton) Max. | 68 |
| Maximum Power (hp) | 184 |
| Weights and Dimensions | |
| Total Weight (Excluding Clamp) (lbs) | 2762 |
| Length / L2 (in) | 53 |
| Height / H1 (in) | 65 |
| Width / W1 (in) | 32 |
Recommended Clamps and Power Pack
Clamp for Sheet Piles
