OVR 50 S
Technical Specifications of Mini Excavator Pile Driver
OVR 50 S
Fast, reliable, and easy excavator connection,
Ergonomic design providing practical use,
Fully safe movement around the connection arm,
High-performance with driving/power take-off features,
Minimum vibration transmission to the environment,
Powerful, reliable, and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 5.2 |
| Centrifugal Force (kN) Max. | 428 |
| Maximum Power (kW) | 88 |
| Weights and Dimensions | |
| Total Weight (Excluding Clamp) (kg) | 1080 |

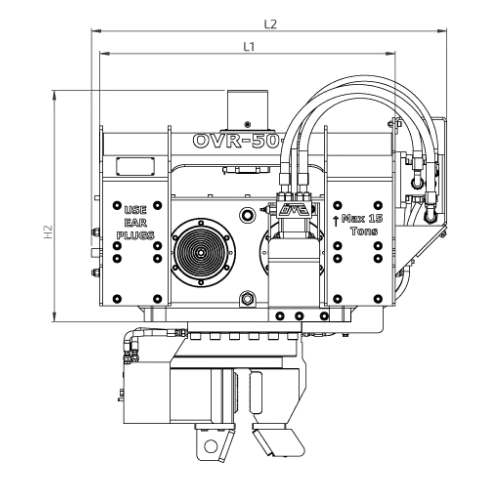

| Length / L2 (mm) | 1282 |
| Height / H1 (mm) | 1344 |

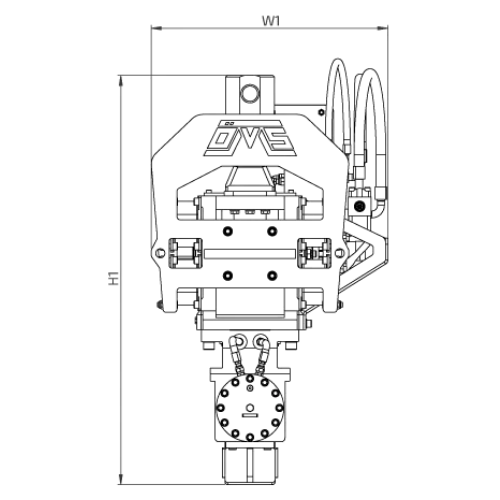

| Width / W1 (mm) | 778 |
| Eccentric Moment (in-lbs) | 451 |
| Centrifugal Force (ton) Max. | 49 |
| Maximum Power (hp) | 118 |
| Weights and Dimensions | |
| Total Weight (Excluding Clamp) (lbs) | 2380 |
| Length / L2 (in) | 51 |
| Height / H1 (in) | 53 |
| Width / W1 (in) | 31 |
Recommended Clamps and Power Pack

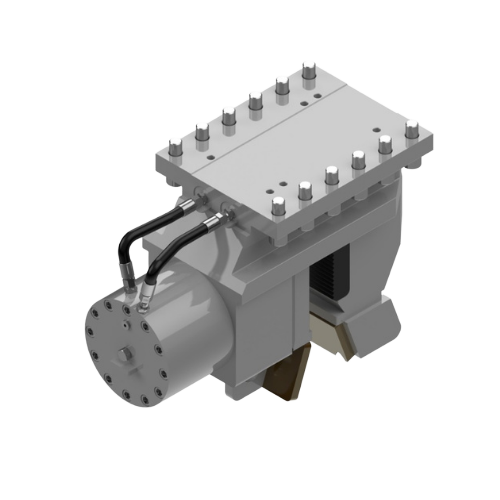

Clamp for Sheet Piles
