OVR 120 S
Mini Excavator Pile Driving Machine Technical Specifications
OVR 120 S
- Fast, reliable, and easy excavator connection,
- Ergonomic design for practical use,
- Fully safe operation around the connection arm,
- High performance and driving power,
- Minimal vibration transmission to the environment,
- Pipe pile driving feature with sliding box-type clamp system,
- Strong, reliable, and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 12.3 |
| Centrifugal Force (kN) Max. | 1015 |
| Max. Power (kW) | 183 |
| Weight and Dimensions | |
| Total Weight Excluding Clamp (kg) | 1798 |

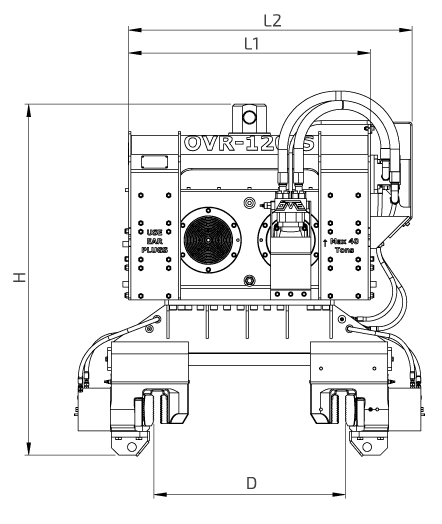

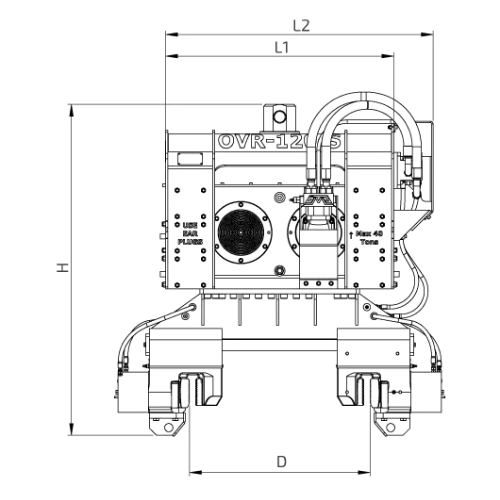

| Length / L2 (mm) | 1506 |

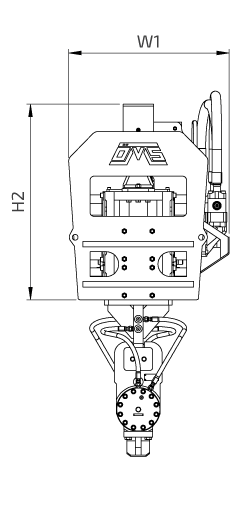

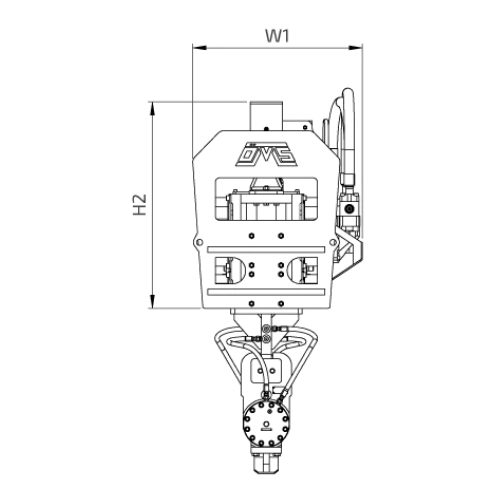

| Height / H1 (mm) | 1850 |
| Width / W1 (mm) | 842 |
| Eccentric Moment (in.lbs) | 1068 |
| Centrifugal Force (ton) Max. | 114 |
| Max. Power (hp) | 245 |
| Weight and Dimensions | |
| Total Weight Excluding Clamp (lbs) | 3964 |
| Length / L2 (in) | 59 |
| Height / H1 (in) | 73 |
| Width / W1 (in) | 33 |
Recommended Clamps and Power Pack
Clamp for Sheet Piles
