Variable Moment SVR 8
Crane-Suspended Pile Driving Machine
Variable Moment SVR 8 Advantages:
The SVR Variable Moment vibrator series produces no vibration during start-up and shutdown thanks to its phase shifter, and vibrates at higher speeds during operation. This reduces disturbance to the surrounding soil.
- Eco-friendly technology,
- Adjustable amplitude,
- Resonance-free start-stop,
- Optimal force application for soil conditions,
- Powerful, reliable and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 0-8 |
| Centrifugal Force (kN) Max. | 464 |
| Power (kW) | 138 |
| Weight & Dimensions | |
| Total Weight Excl. Clamps (kg) | 1857 |
| Length / L1 (mm) | 1490 |
| Height / H1 (mm) | 1566 |
| Width / W1 (mm) | 300 |
| Eccentric Moment (in.lbs) | 0-695 |
| Centrifugal Force Max. (ton) | 52 |
| Power (hP) | 185 |
| Weight & Dimensions | |
| Total Weight Excl. Clamps (lbs) | 4094 |
| Length / L1 (in) | 59 |
| Height / H1 (in) | 62 |
| Width / W1 (in) | 12 |
Recommended Clamps & Power Source

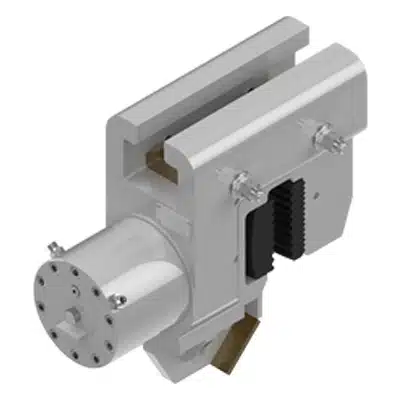

Clamp for Sheet Piles and Piles

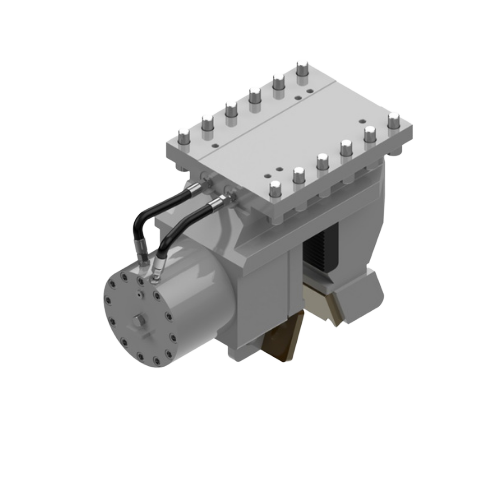

Clamp Type for Casing

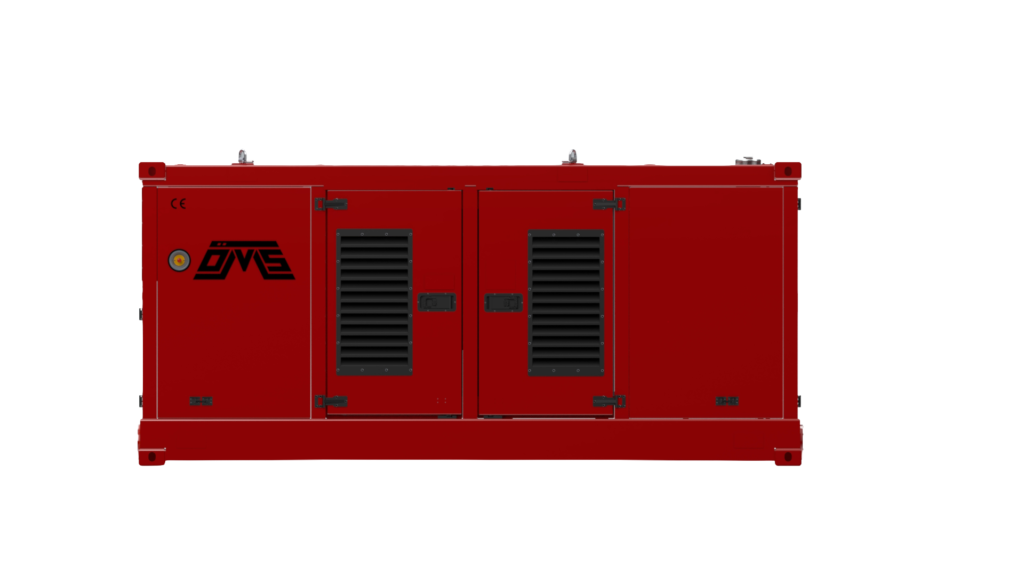

Recommended Power Package
