Crane-Suspended Vibratory Hammer SVR 50 NF
Normal Frequency
Advantages of the SVR 50 NF Vibratory Hammer:
- High performance,
- Desired power settings and job tracking carried out by the control system,
- Various clamp types suitable for all pile profiles,
- Innovative design that adapts to rapidly evolving technology,
- Time and cost savings,
- 24/7 technical service and spare parts support,
- Powerful, reliable and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 50.2 |
| Centrifugal Force (kN) | 1409 |
| Power (kW) | 352 |
| Weight & Dimensions | |
| Total Weight Excl. Clamps (kg) | 6150 |
| Length / L1 (mm) | 2650 |
| Height / H1 (mm) | 2117 |
| Width / W1 (mm) | 384 |
| Eccentric Moment (in.lbs) | 4357 |
| Centrifugal Force (ton) | 159 |
| Power (hP) | 472 |
| Weight & Dimensions | |
| Total Weight Excl. Clamps (lbs) | 13559 |
| Length / L1 (in) | 105 |
| Height / H1 (in) | 84 |
| Width / W1 (in) | 15 |
Recommended Clamps & Power Source
Clamp for Sheet Piles and Piles
Clamp Type for Casing

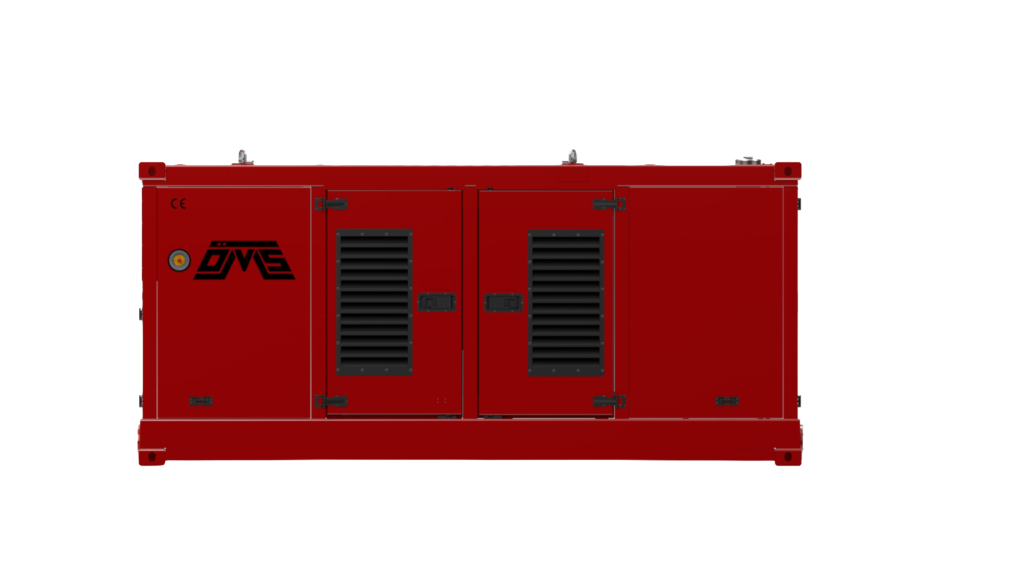

Recommended Power Package
