Crane-Suspended Pile Driving Machine
Variable Moment SVR 30
Crane-Suspended Pile Driving Machine
Advantages of the Variable Moment SVR 30:
The SVR Variable Moment vibrator series does not vibrate during start-up and shutdown thanks to its phase shifter, and operates at higher vibration speeds during operation. This reduces disturbance to the surrounding soil.
- Eco-friendly technology,
- Adjustable amplitude,
- Resonance-free start-stop,
- Application of the most suitable force for soil conditions,
- Robust, reliable and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 0-30 |
| Centrifugal Force (kN) Max. | 1746 |
| Power (kW) | 448 |

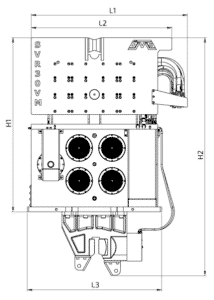

| Weight & Dimensions | |
| Total Weight Excl. Clamps (kg) | 5700 |
| Length / L1 (mm) | 2210 |
| Height / H1 (mm) | 2460 |
| Width / W1 (mm) | 388 |
| Eccentric Moment (in.lbs) | 0-2603 |
| Centrifugal Force (ton) | 197 |
| Power (hP) | 601 |
| Weight & Dimensions | |
| Total Weight Excl. Clamps (lbs) | 8345 |
| Length / L1 (in) | 87 |
| Height / H1 (in) | 97 |
| Width / W1 (in) | 15 |
Recommended Clamps and Power Source

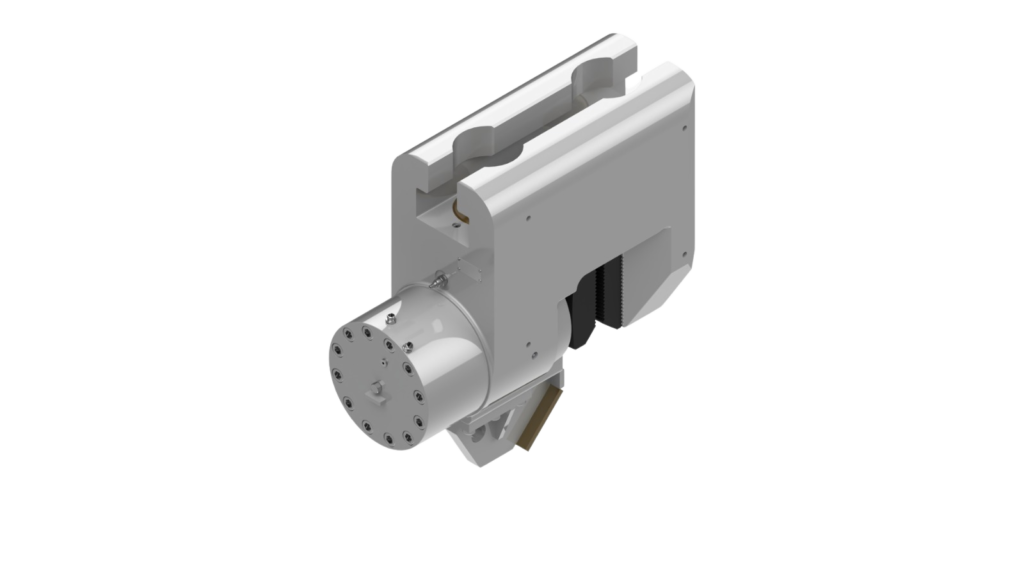

Clamp for Sheets and Piles
Clamp Type for Casing
Recommended Power Package
