SVR 30 NF Technical Specifications
Crane Suspended Pile Driving Machine
- High performance,
- Execution of desired power settings and job tracking by the control system,
- Various clamp types suitable for all pile profiles,
- Innovative structure that adapts to rapidly evolving technology,
- Time and cost savings,
- 24/7 technical service and spare parts support,
- Powerful, reliable and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 32.6 |
| Centrifugal Force (kN) | 1036 |
| Power (kW) | 243 |
| Weight and Dimensions | |
| Total Weight Excl. Clamp (kg) | 4485 |
| Length / L1 (mm) | 2599 |
| Height / H1 (mm) | 2034 |
| Width / W1 (mm) | 364 |
| Eccentric Moment (in.lbs) | 2830 |
| Centrifugal Force (ton) | 116 |
| Power (hP) | 326 |
| Weight and Dimensions | |
| Total Weight Excl. Clamp (lbs) | 9888 |
| Length / L1 (inch) | 102 |
| Height / H1 (inch) | 80 |
| Width / W1 (inch) | 14 |
Recommended Clamps and Power Source
Clamp for Sheets and Piles
Clamp Type for Housing

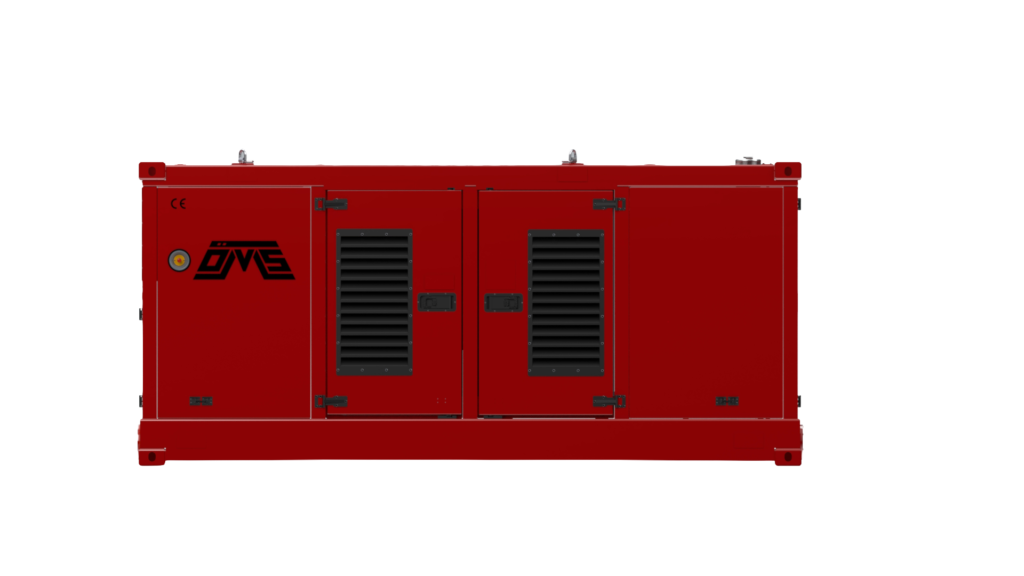

Recommended Power Package
