SVR 200 NF Technical Specifications
Crane Suspended Pile Driving Machine
Advantages of the SVR 200 NF Vibratory Hammer:
- High performance,
- Powerful enough to successfully operate heavy equipment,
- High eccentric moment and vibration amplitude,
- Suitable for all types of soil and working conditions,
- Execution of desired power settings and job tracking by the control system,
- Innovative structure that adapts to rapidly evolving technology,
- Time and cost savings.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 203.2 |
| Centrifugal Force (kN) | 4380 |
| Power (kW) | 1045 |
| Weight and Dimensions | |
| Total Weight Excl. Clamp (kg) | 26100 |

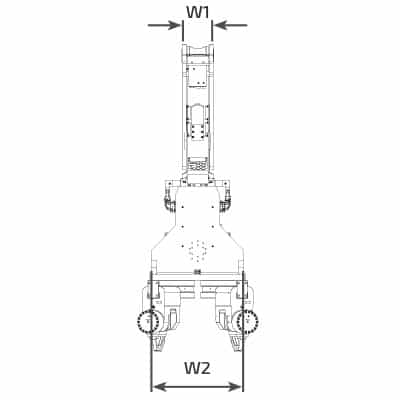

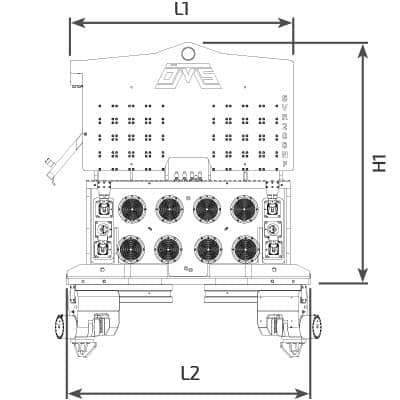

| Length / L1 (mm) | 3660 |
| Height / Y (mm) | 3620 |
| Width / W1 (mm) | 493 |
| Eccentric Moment (in.lbs) | 17637 |
| Centrifugal Force (ton) | 493 |
| Power (hP) | 1402 |
| Weight and Dimensions | |
| Total Weight Excl. Clamp (lbs) | 57541 |
| Length / L1 (inch) | 144 |
| Height / H1 (inch) | 143 |
| Width / W1 (inch) | 20 |
Recommended Clamps and Power Source
Clamp Type for Housing

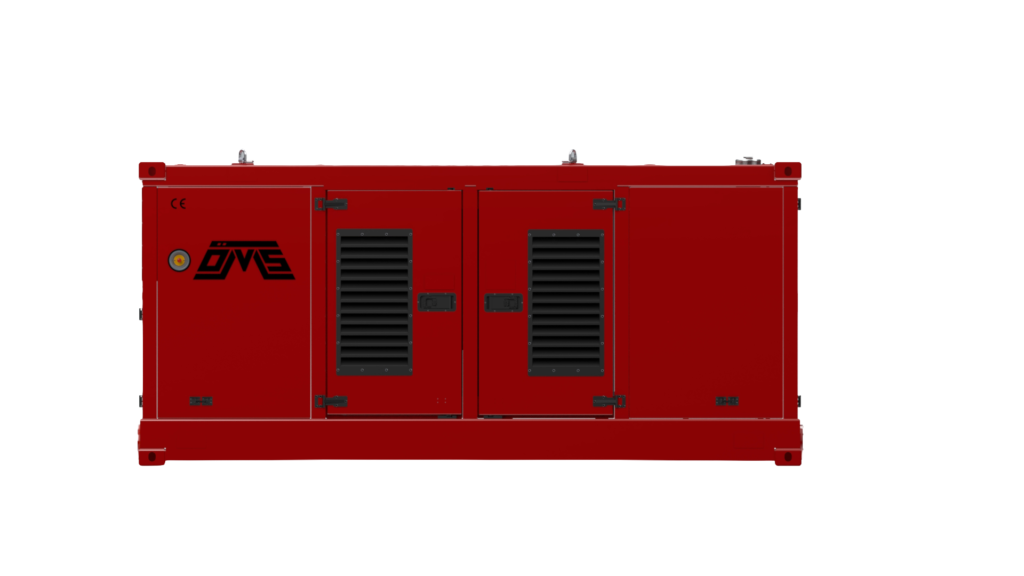

Recommended Power Package
