Variable Moment SVR 12
Crane Suspended Pile Driving Machine
Variable Moment SVR 12 Advantages:
The SVR Variable Moment vibrator series does not vibrate during start-up and shutdown thanks to the phase shifter, and vibrates at higher speed during operation. This reduces disturbance to the surrounding soil.
- Eco-friendly technology,
- Adjustable amplitude,
- Resonance-free start-stop,
- Application of optimal force for soil conditions,
- Powerful, reliable and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 0-20 |
| Centrifugal Force (kN) Max. | 1166 |
| Power (kW) | 292 |

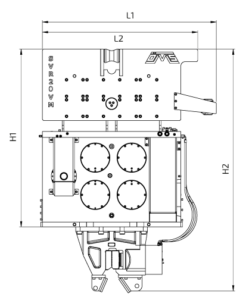

| Weight and Dimensions | |
| Total Weight Excl. Clamp (kg) | 4280 |
| Length / L1 (mm) | 2060 |
| Height / H1 (mm) | 2115 |
| Width / W1 (mm) | 388 |
| Eccentric Moment (in.lbs) | 0-1736 |
| Centrifugal Force (ton) | 131 |
| Power (hP) | 392 |
| Weight and Dimensions | |
| Total Weight Excl. Clamp (lbs) | 9436 |
| Length / L1 (inch) | 81 |
| Height / H1 (inch) | 83 |
| Width / W1 (inch) | 15 |
Recommended Clamps and Power Source

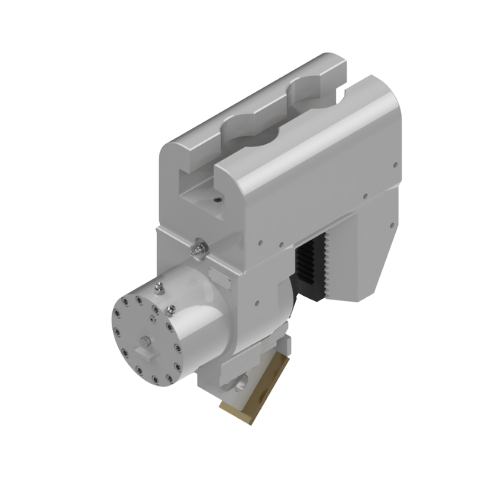

Clamp for Sheets and Piles
Clamp Type for Housing
Recommended Power Package
