SVR 120 NF Technical Specifications
Crane Suspended Pile Driving Machine
Advantages of SVR 120 NF Vibratory Hammer:
High performance,
Execution of power settings and work tracking requested by the control system,
Various clamp types suitable for all pile profiles,
Innovative structure that adapts to rapidly developing technology,
Time and cost savings,
24/7 technical service and spare parts support,
Powerful, reliable, and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 120 |
| Centrifugal Force (kN) | 2846 |
| Power (kW) | 655 |
| Weight and Dimensions | |
| Total Weight Excl. Clamp (kg) | 12172 |
| Length / L1 (mm) | 3315 |
| Height / Y (mm) | 2682 |
| Width / W1 (mm) | 455 |
| Eccentric Moment (in.lbs) | 10416 |
| Centrifugal Force (ton) | 320 |
| Power (hP) | 878 |
| Weight and Dimensions | |
| Total Weight Excl. Clamp (lbs) | 26835 |
| Length / L1 (inch) | 131 |
| Height / H1 (inch) | 106 |
| Width / W1 (inch) | 18 |
Recommended Clamps and Power Source
Clamp for Sheets and Piles
Clamp Type for Housing

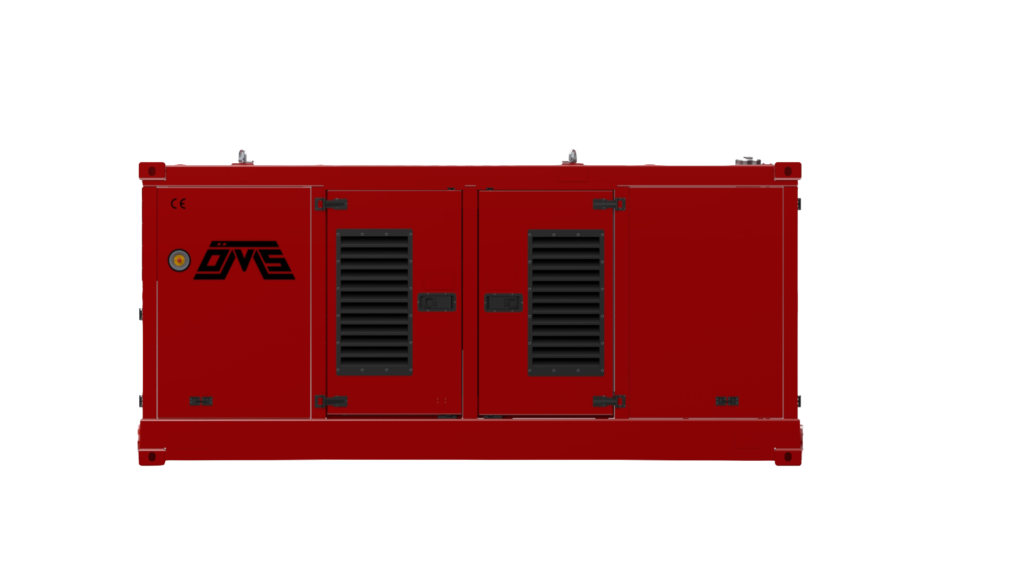

Recommended Power Package
