SVR 12 with Variable Moment
Crane Suspended Pile Driver
Advantages of SVR 8 with Variable Moment:
The SVR Variable Moment vibrator series does not vibrate during start-up and shut-down thanks to the phase shifter, and vibrates at a higher speed during operation. This reduces the disturbance caused to the surrounding soil.
Eco-friendly technology,
Adjustable amplitude,
Resonance-free start-stop,
Application of the most suitable force for soil conditions,
Powerful, reliable, and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 0-12 |
| Centrifugal Force (kN) Max. | 698 |
| Power (kW) | 211 |

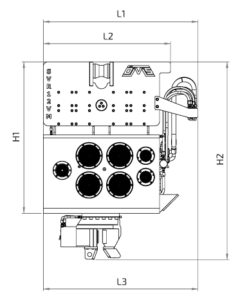

| Weights and Dimensions | |
| Total Weight Excluding Clamp (kg) | 2570 |
| Length / L1 (mm) | 1695 |
| Height / H (mm) | 1660 |
| Width / W1 (mm) | 301 |
| Eccentric Moment (in.lbs) | 0-1041 |
| Centrifugal Force (tons) | 79 |
| Power (hp) | 283 |
| Weights and Dimensions | |
| Total Weight Excluding Clamp (lbs) | 5666 |
| Length / L1 (inch) | 67 |
| Height / H1 (inch) | 65 |
| Width / W1 (inch) | 12 |
Recommended Clamps and Power Source
Clamp for Sheets and Piles
Clamp Type for Casing
Recommended Power Pack
