OVR 80 VM with Variable Moment
Crane Suspended Pile Driver
Advantages of OVR 80 VM with Variable Moment:
The OVR 80 VM Variable Moment vibratory hammer series is engineered to minimize vibration during start-up and shut-down operations through its advanced phase shifter system. During operation, the system delivers high-frequency performance with optimized force distribution, significantly reducing disturbance to surrounding soil and nearby structures.
• Eco-friendly vibration technology,
• Adjustable amplitude for different soil conditions,
• Resonance-free start and stop operation,
• Optimized force application according to ground conditions,
• High-performance, reliable, and durable construction.
TECHNICAL SPECIFICATIONS
| Technical Specifications | OVR 80 VM |
| Eccentric Moment | 0 - 8 |
| Centrifugal Force | 464 |
| Frequency (rpm) | 2300 |
| Oil Flow (lpm) | 176 |
| Power (kW) | 103 |
| Amplitude (mm) | 12 |
| Pulling Force (kN) Max. | 147 |
| Weight and Dimensions | |
| Dyn. Weight W/O Clamp (kg) | 1337 |
| Total Weight W/O Clamp (kg) | 1650 |
| Length / L1 (mm) | 1280 |
| Height / H1 (mm) | 1680 |
| Height / H2 (mm) | 2075 |
| Width / W1 (mm) | 255 |
| Width / W2 (mm) | 471 |
| Clamps for Sheet Piles | SCN 60 |
| Clamping Force (kN) | 643 |
| Weight (kg) | 327 |
| Clamps for Casing | KCN 45x2 |
| Diameter (min.-max.) / D (mm) | 350 - 970 |
| Clamping Force (kN) | 465 x 2 |
| Weight (kg) | 185 x 2 |
| Recommended Excavator Working Weight (ton) | 36 - 40 |
| Technical Specifications | OVR 80 VM |
| Eccentric Moment (in.lbs) | 0 - 694 |
| Centrifugal Force (tons) | 52 |
| Frequency (rpm) | 2300 |
| Oil Flow (gpm) | 46 |
| Power (hP) | 138 |
| Amplitude (in) | 0.5 |
| Pulling Force (tons) Max. | 17 |
| Weight and Dimensions | |
| Dyn. Weight W/O Clamp (lbs) | 2948 |
| Total Weight W/O Clamp (lbs) | 3637 |
| Length / L1 (in) | 50 |
| Height / H1 (in) | 66 |
| Height / H2 (in) | 82 |
| Width / W1 (in) | 10 |
| Width / W2 (in) | 19 |
| Clamps for Sheet Piles | SCN 60 |
| Clamping Force (tons) | 72 |
| Weight (lbs) | 721 |
| Clamps for Casing | KCN 45x2 |
| Diameter (min.-max.) / D (in) | 14 - 38 |
| Clamping Force (tons) | 52x2 |
| Weight (lbs) | 408x2 |
| Recommended Excavator Working Weight (ton) | 36 - 40 |
Recommended Clamps and Power Source

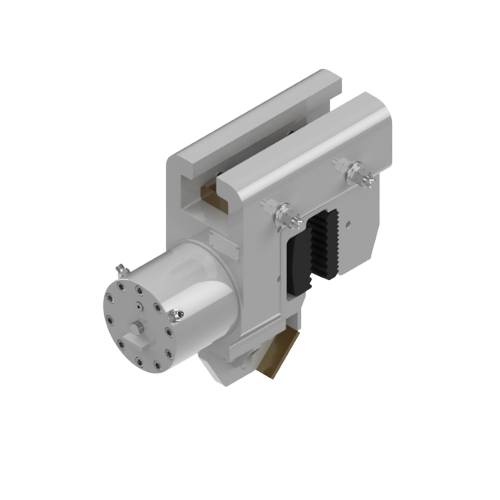

Clamp for Sheets and Piles

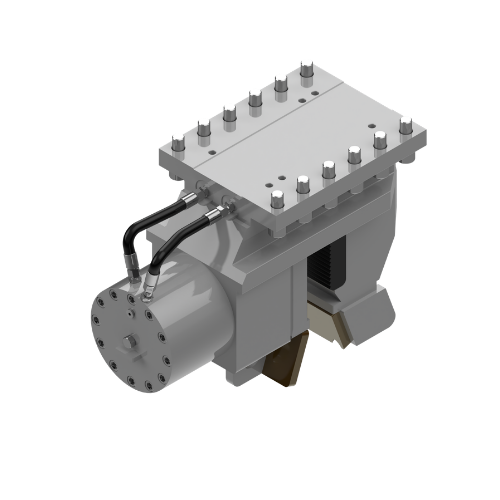

Clamp Type for Tube Piles

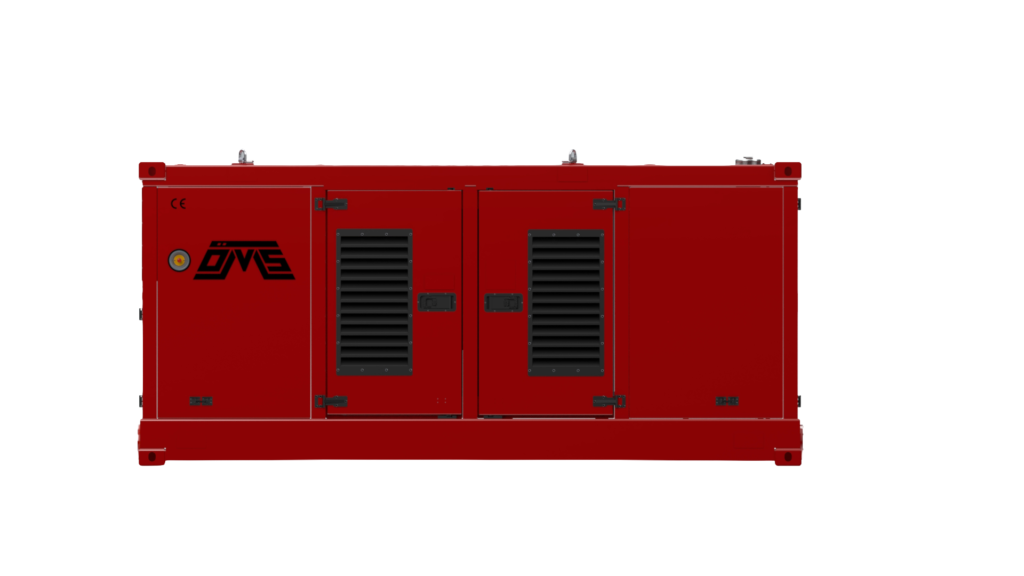

Recommended Power Package
