OVR 60 S

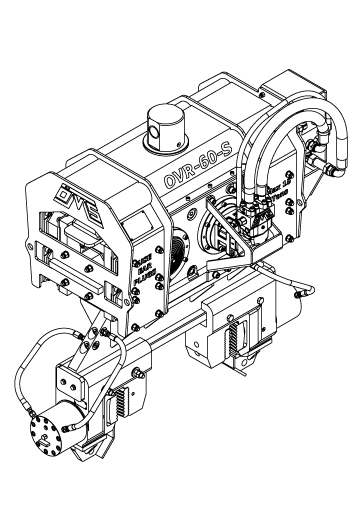

Technical Specifications of Mini Excavator Pile Driver
OVR 60 S
Fast, reliable, and easy excavator connection,
Ergonomic design providing practical use,
Fully safe movement around the connection arm,
High performance and driving power acquisition,
Minimum vibration transmission to the environment,
Pipe piling feature with a sliding well-type clamp system,
Powerful, reliable, and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 6.3 |
| Centrifugal Force (kN) Max. | 525 |
| Max. Power (kW) | 118 |
| Weights and Dimensions | |
| Total Weight Without Clamp (kg) | 1096 |

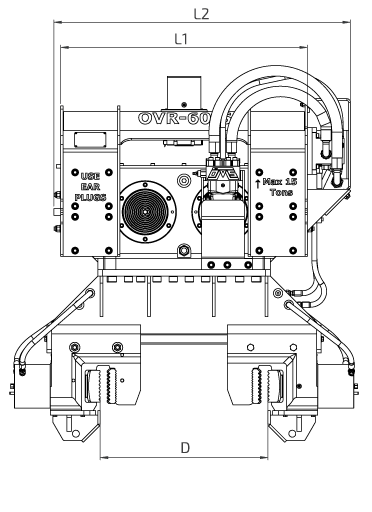

| Length / L2 (mm) | 1282 |
| Height / H1 (mm) | 1581 |
| Width / W1 (mm) | 778 |
| Eccentric Moment (in.lbs) | 547 |
| Centrifugal Force (tons) Max. | 59 |
| Max. Power (hp) | 158 |
| Weights and Dimensions | |
| Total Weight Without Clamp (lbs) | 2417 |
| Length / L2 (in) | 51 |
| Height / H1 (in) | 62 |
| Width / W1 (in) | 31 |
Recommended Clamps and Power Source

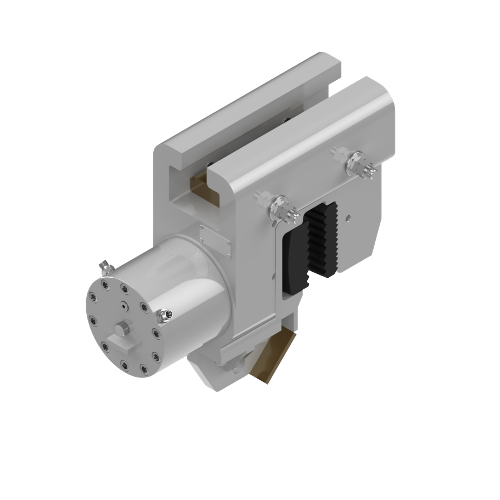

Clamp for Sheet Piles and Posts
Recommended Power Pack
