OUR PRODUCTS
OVR 20 S

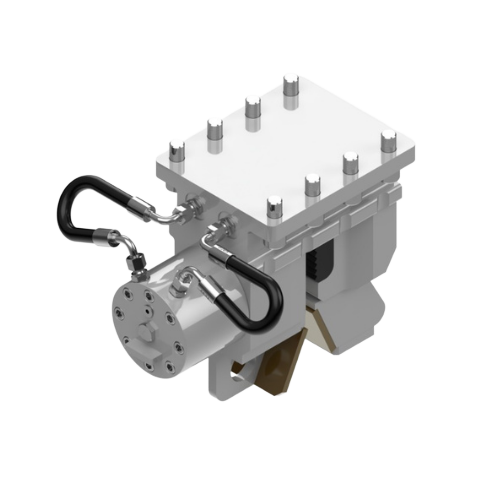

Technical Specifications of Mini Excavator Pile Driver
OVR 20 S
Fast, reliable, and easy excavator connection,
Ergonomic design providing practical use,
Fully safe movement around the connection arm,
High-performance with driving/power take-off features,
Minimum vibration transmission to the environment,
Powerful, reliable, and long-lasting.
TECHNICAL SPECIFICATIONS
| Eccentric Moment (kgm) | 2.1 |
| Centrifugal Force (kN) Max. | 170 |
| Max. Power (kW) | 37 |
| Weights and Dimensions | |
| Total Weight Without Clamp (kg) | 384 |

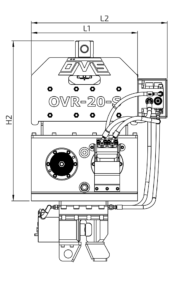

| Length / L2 (mm) | 755 |

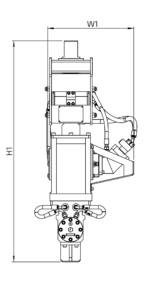

| Height / H1 (mm) | 1230 |
| Width / W1 (mm) | 482 |
| Eccentric Moment (in.lbs) | 183 |
| Centrifugal Force (tons) Max. | 20 |
| Max. Power (hp) | 49 |
| Weights and Dimensions | |
| Total Weight Without Clamp (lbs) | 847 |
| Length / L2 (in) | 30 |
| Height / H1 (in) | 48 |
| Width / W1 (in) | 19 |
Recommended Clamps and Power Source
Clamp for Sheet Piles and Posts
Recommended Power Pack
