HYDRAULIC CLAMP FOR TIMBER PILES (ACN SERIES SHEET PILE CLAMP)
Hydraulic vibratory clamps can be manufactured in accordance with specific customer requirements.

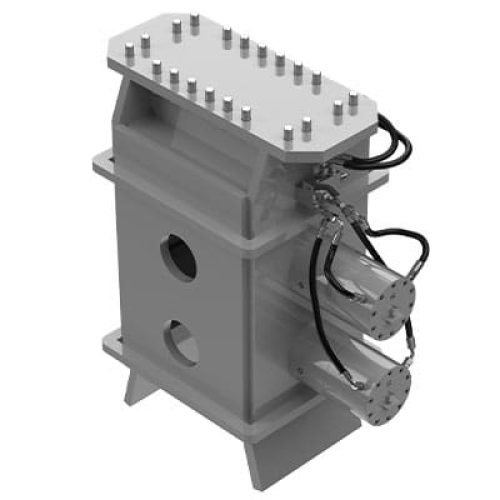

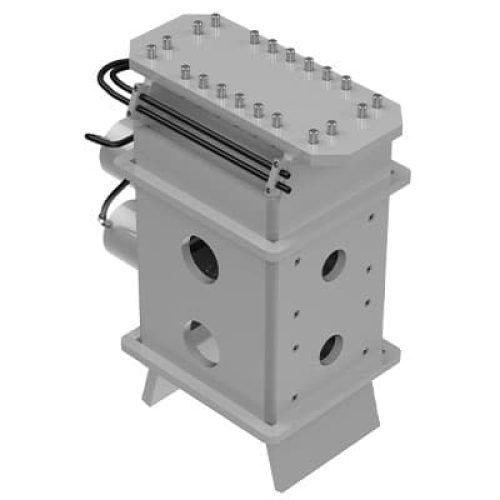

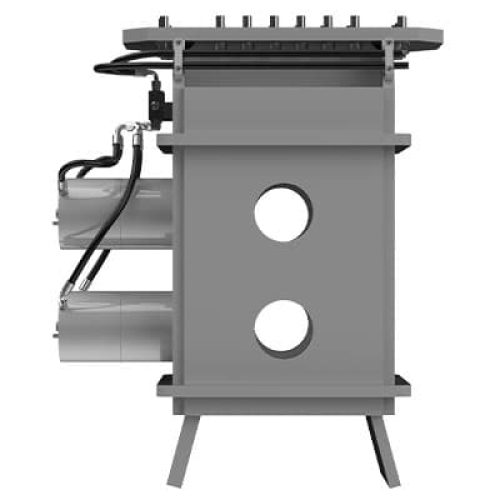

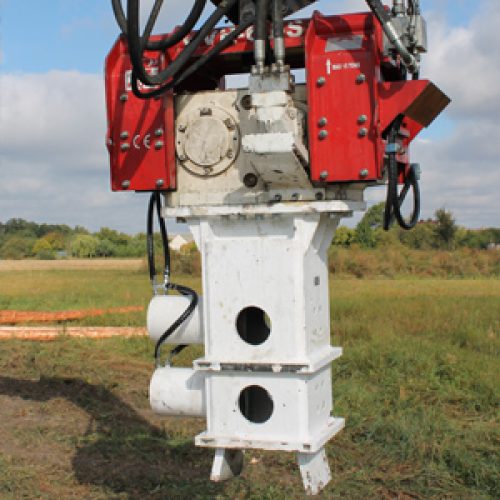

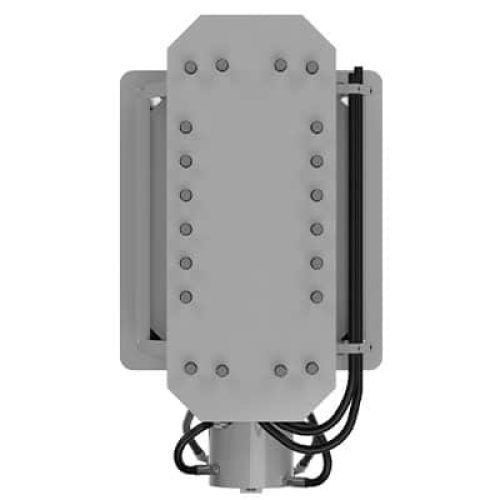

The clamping units are made of special alloy cast steel and feature two gripping jaws—one fixed and the other movable. The hydraulic clamp includes a hydraulic cylinder that closes the movable jaw with a clamping pressure of up to 320 bar. The jaws open and close via the “clamp open/close” control on the remote system. Clamping and releasing operations are completed within a few seconds.
For more information, please read the article titled Main Components of Hydraulic Clamps.
FOR TIMBER PILES

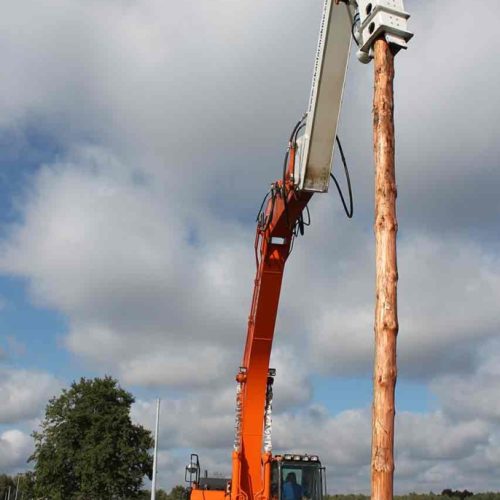

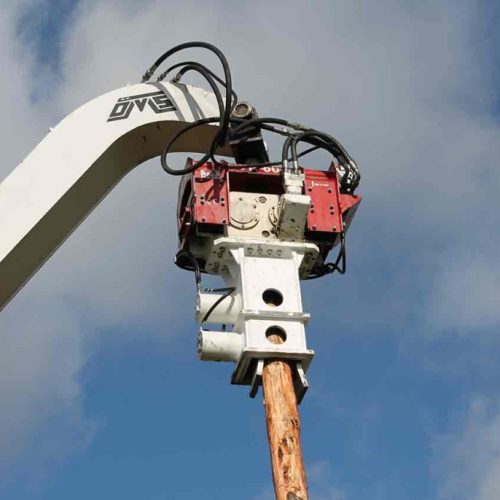

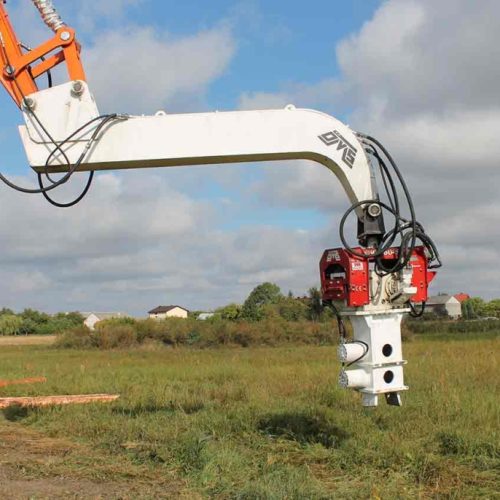

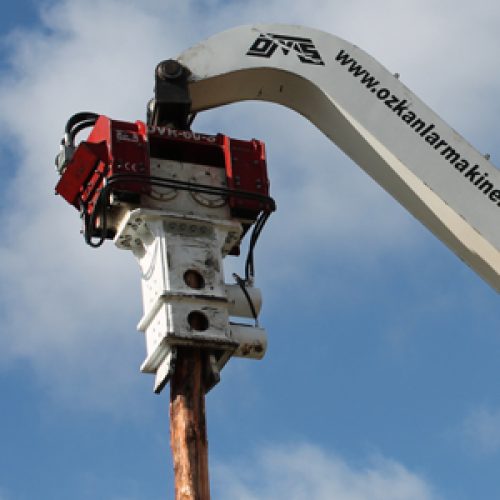

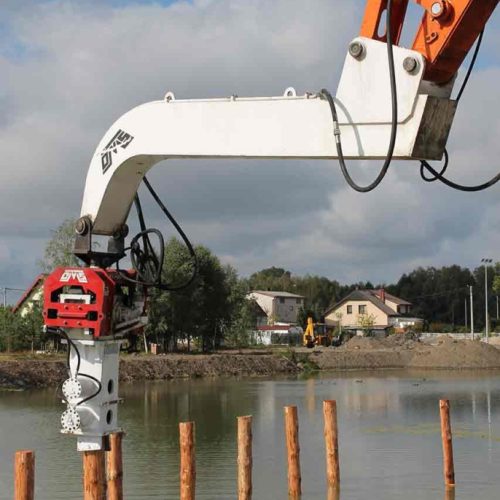

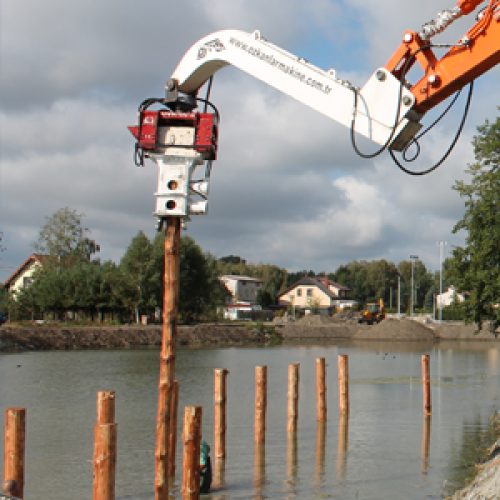

Ideal choice for driving and extracting timber piles.
CLAMPING PRESSURE
Adjustable gripping pressure.
USER-FRIENDLY
Easy to install.
Explore All Other OMS Hydraulic Clamps
TECHNICAL SPECIFICATIONS
| Clamping Force (kN) | 643 |
| Weight (kg) | 732 |
| Operating Pressure (bar) | 350 |

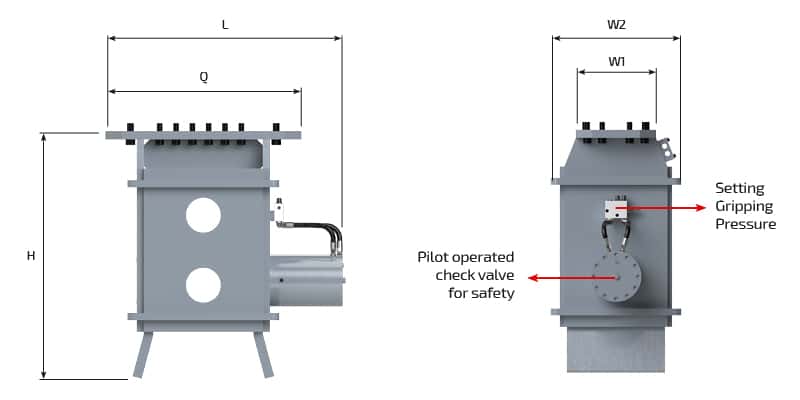

| L (mm) | 1030 |
| W1 (mm) | 350 |
| W2 (mm) | 570 |
| H (mm) | 1060 |

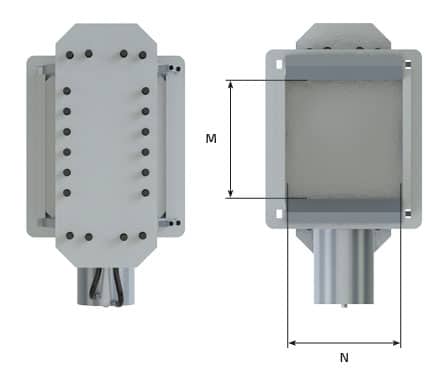

| M × N (mm) | 430 × 430 |
| Q (mm) | 840 |
| Clamping Force (kN) | 930 |
| Weight (kg) | 880 |
| Operating Pressure (bar) | 350 |
| L (mm) | 1030 |
| W1 (mm) | 350 |
| W2 (mm) | 570 |
| H (mm) | 1190 |
| M x N (mm) | 430 x 430 |
| Q (mm) | 840 |
| Clamping Force (kN) | 1246 |
| Weight (kg) | 1011 |
| Operating Pressure (bar) | 350 |
| L (mm) | 1037 |
| W1 (mm) | 350 |
| W2 (mm) | 570 |
| H (mm) | 1390 |
| M x N (mm) | 430 x 430 |
| Q (mm) | 840 |
TECHNICAL SPECIFICATIONS(US)
| Clamping Force (ton) | 72.3 |
| Weight (lbs) | 1614 |
| Operating Pressure (psi) | 5076 |
| L (in) | 40.55 |
| W1 (in) | 13.78 |
| W2 (in) | 22.44 |
| H (in) | 41.73 |
| M x N (in) | 17 x 17 |
| Q (in) | 33.07 |
| Clamping Force (ton) | 104.5 |
| Weight (lbs) | 1940 |
| Operating Pressure (psi) | 5076 |
| L (in) | 40.55 |
| W1 (in) | 13.78 |
| W2 (in) | 22.44 |
| H (in) | 45.85 |
| M x N (in) | 17 x 17 |
| Q (in) | 33.07 |
| Clamping Force (ton) | 140 |
| Weight (lbs) | 2229 |
| Operating Pressure (psi) | 5076 |
| L (in) | 40.83 |
| W1 (in) | 13.78 |
| W2 (in) | 22.44 |
| H (in) | 54.72 |
| M x N (in) | 17 x 17 |
| Q (in) | 33.07 |
OMS HYDRAULIC CLAMP TYPES
Hydraulic Clamps for Pipe Piles (KCN Series)
Hydraulic Clamps for Sheet Piles (SCN Series)
Hydraulic Clamps for Timber Piles (ACN Series)
