SVR 82 NF Technical Specifications
Crane Suspended Vibratory Hammer
Advantages of the SVR 82 NF Vibratory Hammer:
- High performance,
- Desired power settings and job tracking carried out by the control system,
- Various clamp types suitable for all pile profiles,
- Innovative design that adapts to rapidly evolving technology,
- Time and cost savings,
- 24/7 technical service and spare parts support,
- Powerful, reliable and long-lasting.
TECHNICAL SPECIFICATIONS
| Technical Specifications | SVR 82 NF |
|---|---|
| Eccentric Moment (kgm) | 82.3 |
| Centrifugal Force (kN) | 2310 |
| Power (kW) | 540 |
| Weight & Dimensions | |
| Total Weight W/O Clamp (kg) | 8950 |
| Length / L1 (mm) | 2740 |
| Height / H1 (mm) | 2675 |
| Width / W1 (mm) | 408 |
| Technical Specifications | SVR 82 NF |
|---|---|
| Eccentric Moment (lbs.in) | 7143 |
| Centrifugal Force (tons) | 260 |
| Power (hp) | 724 |
| Weight & Dimensions | |
| Total Weight W/O Clamp (lbs) | 19731 |
| Length / L1 (in) | 108 |
| Height / H1 (in) | 105 |
| Width / W1 (in) | 16 |
Recommended Clamps and Power Pack
Clamp for Sheets and Piles

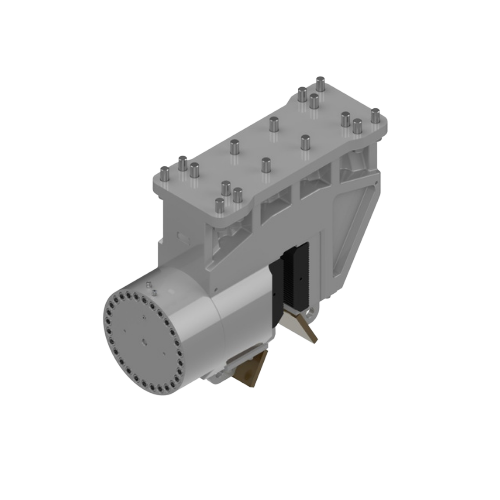

Clamp Type for Tube Piles

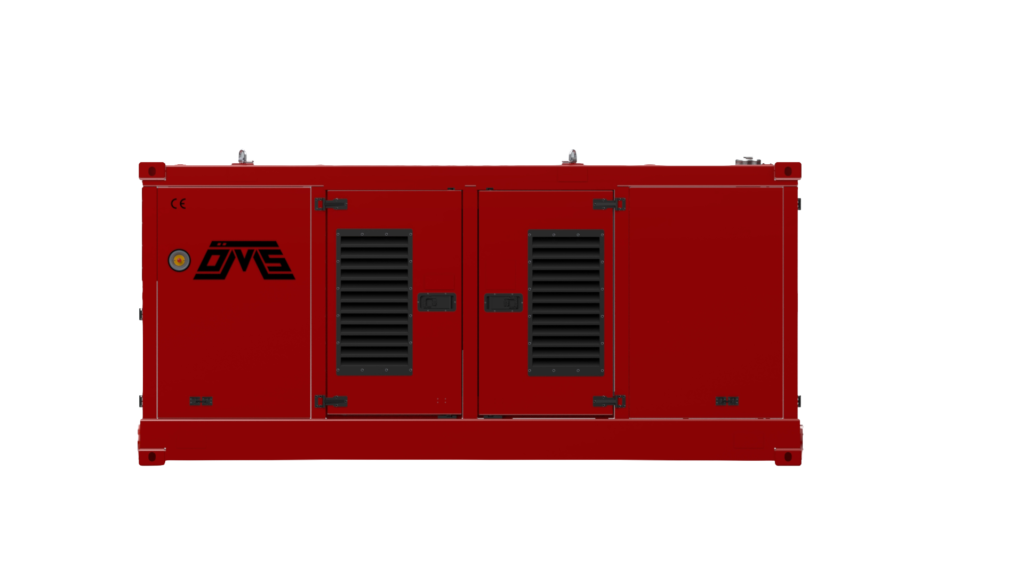

Recommended Power Package
